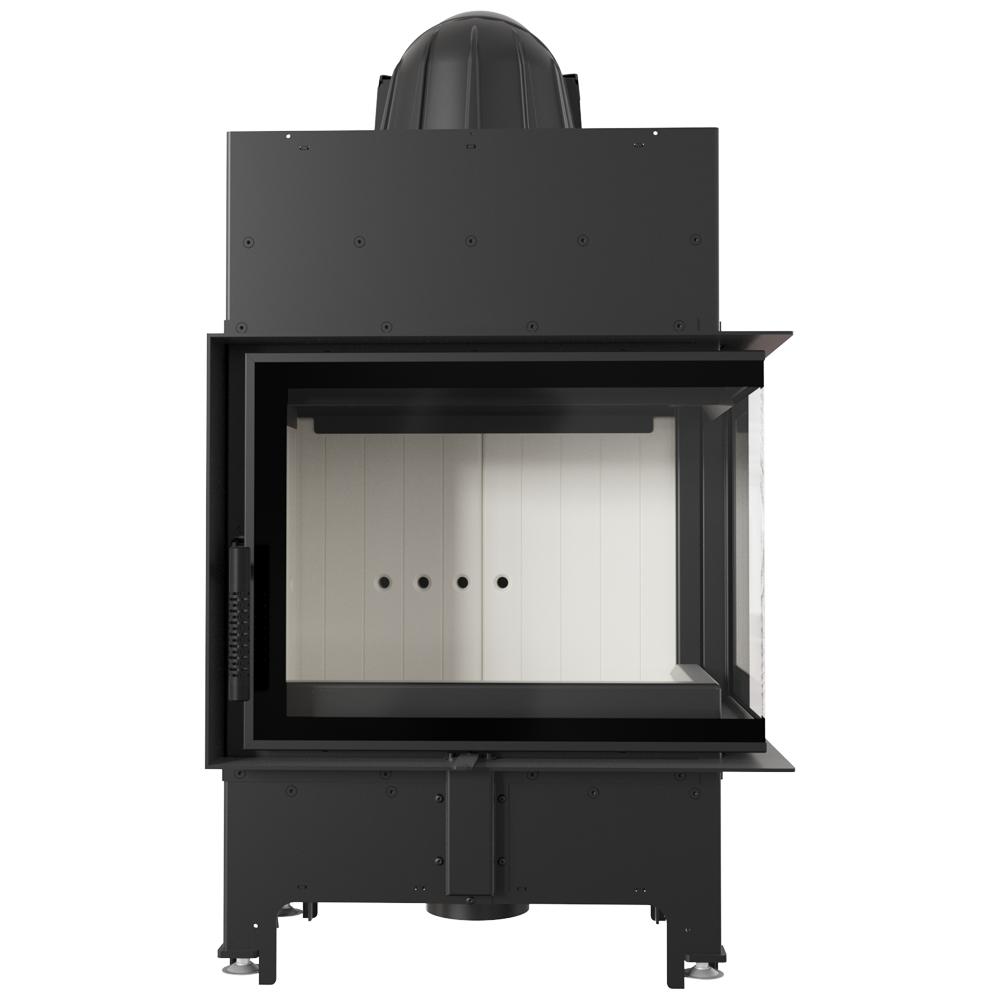

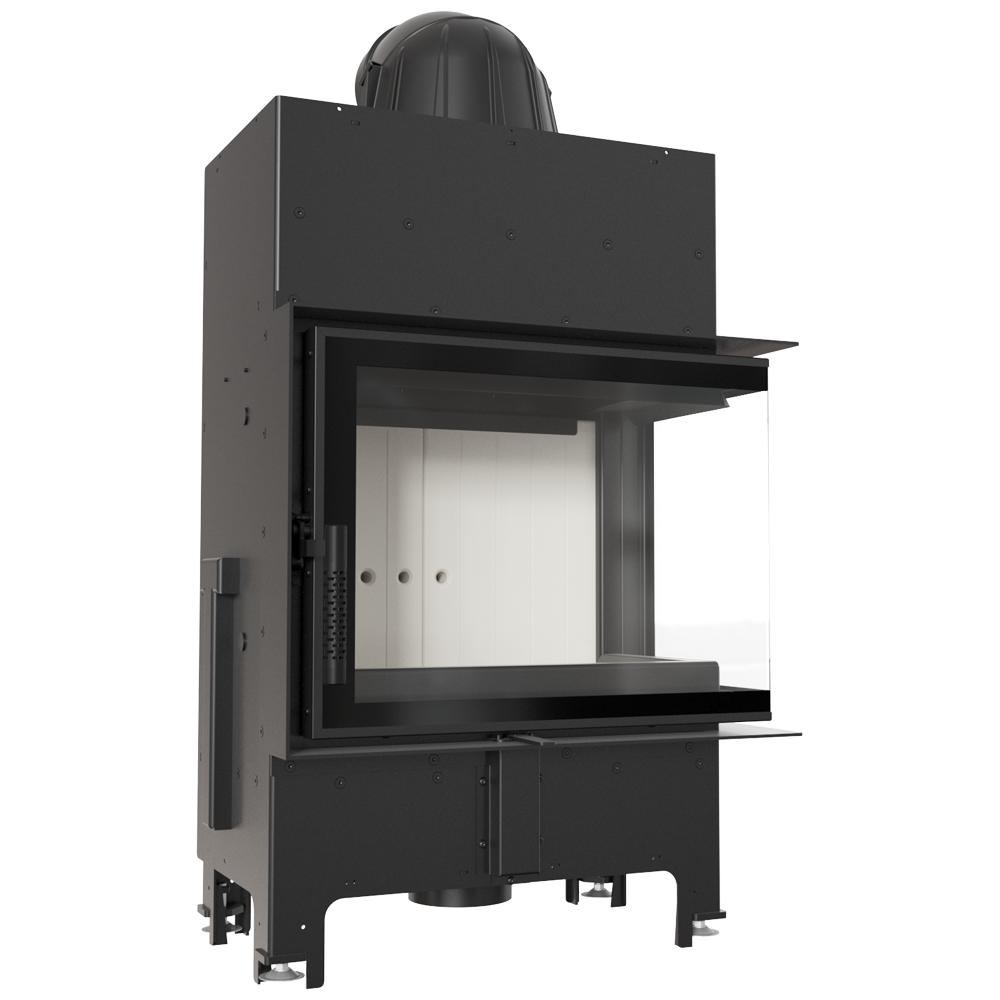

Steel fireplace FLOKI right 8 kW Ø 160

Product details

Producer:
Kratki.pl Marek Bal
Product code:
FLOKI/P/BS
Category:
Air fireplaces

Kratki.pl Marek Bal

http://kratki.com/
Facebook
Instagram
Share

Product description

<p>The insert with interesting shape and side glass. Thanks to double vision of fire and simple front frame it is designed for the modern home, with unique styling. Such types of inserts are good choice for open spaces where different rooms are connected e.g. living room and dining room. Thanks to specially profiled floor plate the insert can fit bigger volume of wood. Modern solutions used in this insert guarantee energy saving and cause that the service and cleaning are trouble-free.</p>
<p> </p>
<p><strong>MAXIMUM USE OF ENERGY</strong></p>
<p>More efficient combustion and longer maintenance of temperature by lining the combustion chamber with ceramic material TERMOTEC which accumulates heat and raises the temperature in the furnace.</p>
<p>Full combustion on the dust thanks to deflector which extend the exhaust path. This process increases the efficiency of burning and guarantees better energy use. It also minimizes the emission of harmful substances to the atmosphere.</p>
<p>Air supply to the inserts comes only from outside thanks to the inbuilt air intake connector fi 125 mm. It is controlled by an adjustable throttle with one controller beneath the door. This solution excludes errors of improper use. The whole mechanism works very quietly and flawlessly.</p>
<p>In this insert there is triple air system of combustion chamber. Primary air which enables setting a fire is supplied under the grate. Secondary air - providing economic and ecological burning is supplied by holes on the back wall.</p>
<p>Additionally, this insert is equipped with Clea Galss System (air curtain), so the air is supplied directly to the glass through a system of channels located on the sides of the fireplace. In this way oxygen is supplied to the upper part of the combustion chamber, were happens post-combustion of gases produced while combustion of wood. At the same time it reduces harmful CO emissions to the atmosphere.</p>
<p>Such air system enables to control burning process very precisely.</p>
<p> </p>
<p><strong>ECOLOGICAL COMBUSTION</strong></p>
<p>The unit meets the requirements of <strong>Ecodesign</strong> standards and the restrictions of the <strong>BImSchV 2</strong> standard, which determines the maximum CO emission.</p>
<p> </p>
<p><strong>SAFETY ON THE HIGHEST LEVEL</strong></p>
<p>Front of the insert is equipped with a heat resistant ceramic withstanding temperatures up to 660°C. We offered by us glass certified quality and safety.</p>
<p>The special perforated design of the handle protects against excessive heating, which has the influence on the high comfort of using the fireplace.</p>
<p>The body and the front of the insert is resistant to high temperatures through the use of high quality steel.</p>
<p>Excellent tightness thanks to the solid welding made in shielded noble gas. Steel elements are laser cut with the help of modern equipment, and then they are bent on CNC benders.</p>
<p> </p>
<p><strong>COMFORTABLE USE</strong></p>
<p>Special profiled bottom plate of TERMOTEC is used in this insert. Thank to that the chamber of the fireplace is bigger and larger amount of wood can be put inside.</p>
<p>Movable grate and ash drawer enable to keep the insert clean.</p>
<p>Reduced soot deposition through a system of clean glass system (air curtain). Air curtain separates the glass from the chamber thanks of that the glass doesn’t become dirty and emit more heat to the room.</p>
<p>Insert can be easily elevate thanks to the regulated the legs.</p>
<p>The model is equipped with a movable exhaust outlet and thanks to that there is no need to purchase additional knees for installation. It is possible due to easy adjustment of the angle of connection to the chimney system.  </p>
<p> </p>
<p><strong>MODERN DESIGN</strong></p>
<p>The insert has singular decorative glass thanks to that it looks elegant and modern. Such solution visually enlarges the front of the insert and emphasizes the view of the fire.</p>
<p>The door of the insert has comfortable handle.</p>
<p> </p>
<p> </p>

BIM/CAD

3Ds Max

.3ds
Files
app.noun.author
app.product.media_content

FLOKI_P_BS_.3ds

1.62 MB
Kratki.pl Marek Bal

Autocad

.dwg
Files
app.noun.author
app.product.media_content

FLOKI_P_BS_.dwg

13.9 MB
Kratki.pl Marek Bal
app.product.media_nopreview

Object file 3D

.obj
Files
app.noun.author
app.product.media_content

FLOKI_P_BS_.obj

27.43 MB
Kratki.pl Marek Bal
app.product.media_nopreview

Additional Resources

All resources below have been provided by the manufacturer. If you are interested in details or additional information, which you have not found in the service, please contact the manufacturer.
app.product.media_nopreview

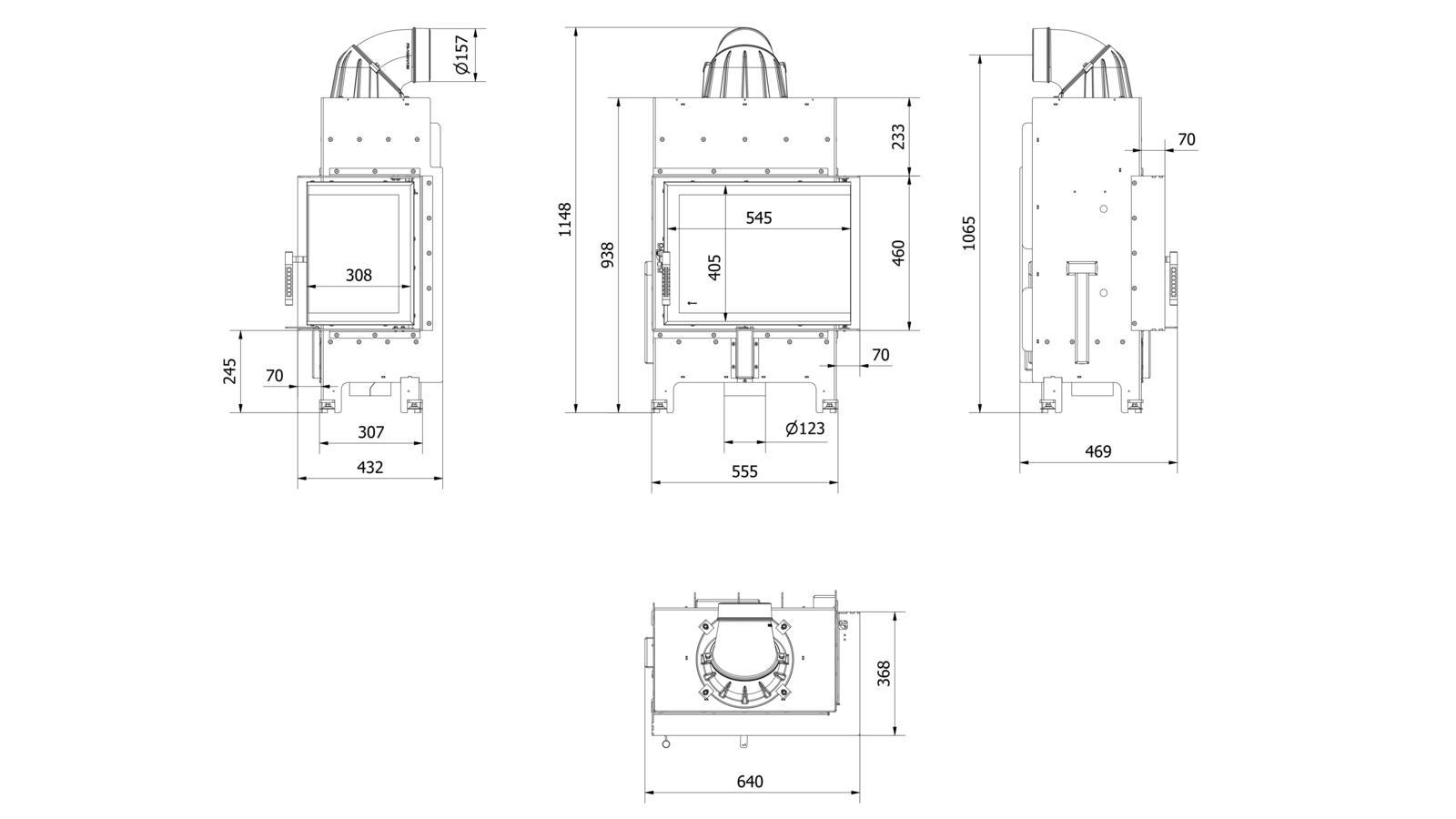

Technical drawings

Files
app.product.media_content


370.42 KB
