LIGHTING PAD LOUNGE VARIO
Datos del producto
- Fabricante:
- Häfele Polska Sp. z o. o.
- Categoría:
- Lámparas de techo
Häfele Polska Sp. z o. o.
Compartir
Descripción del producto
LIGHTING PAD LOUNGE VARIO

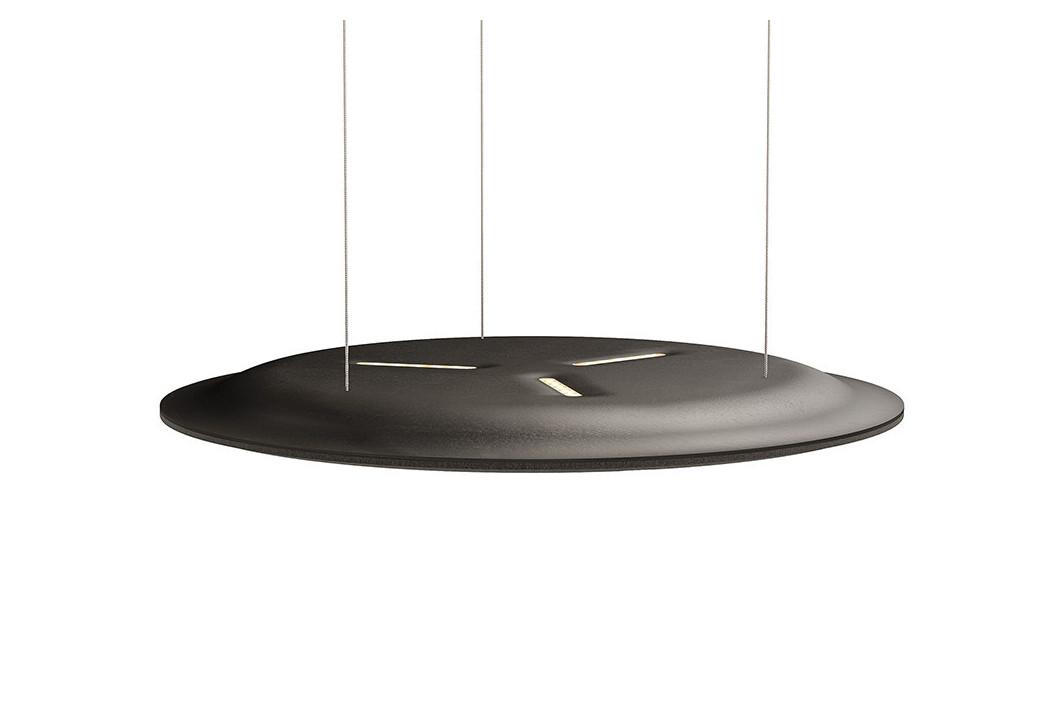

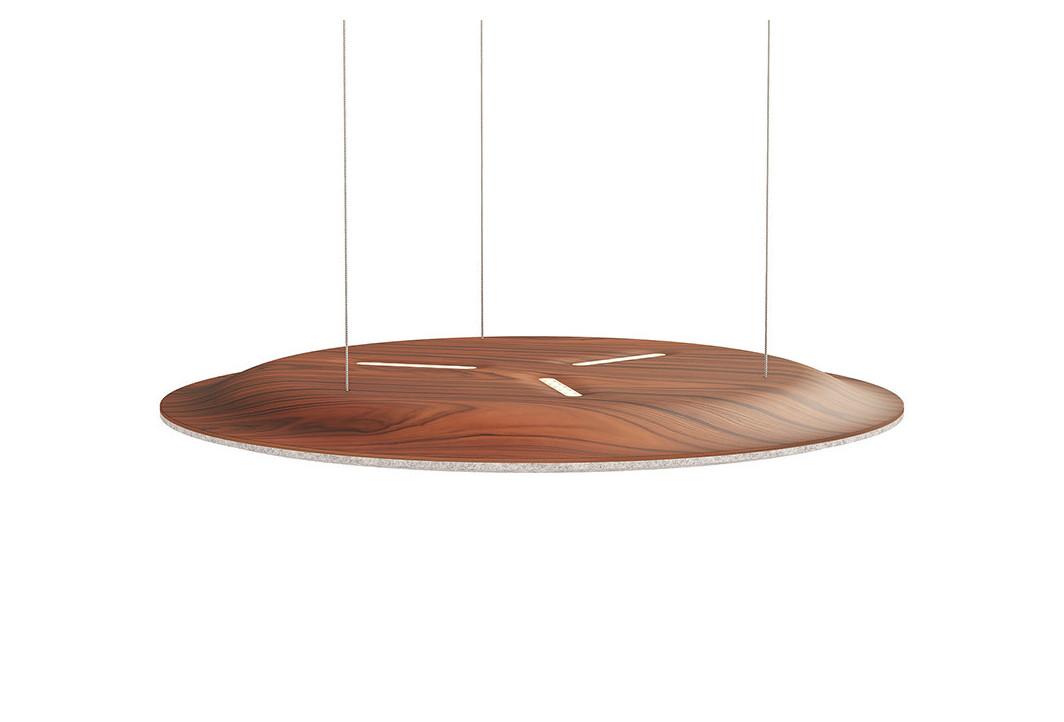

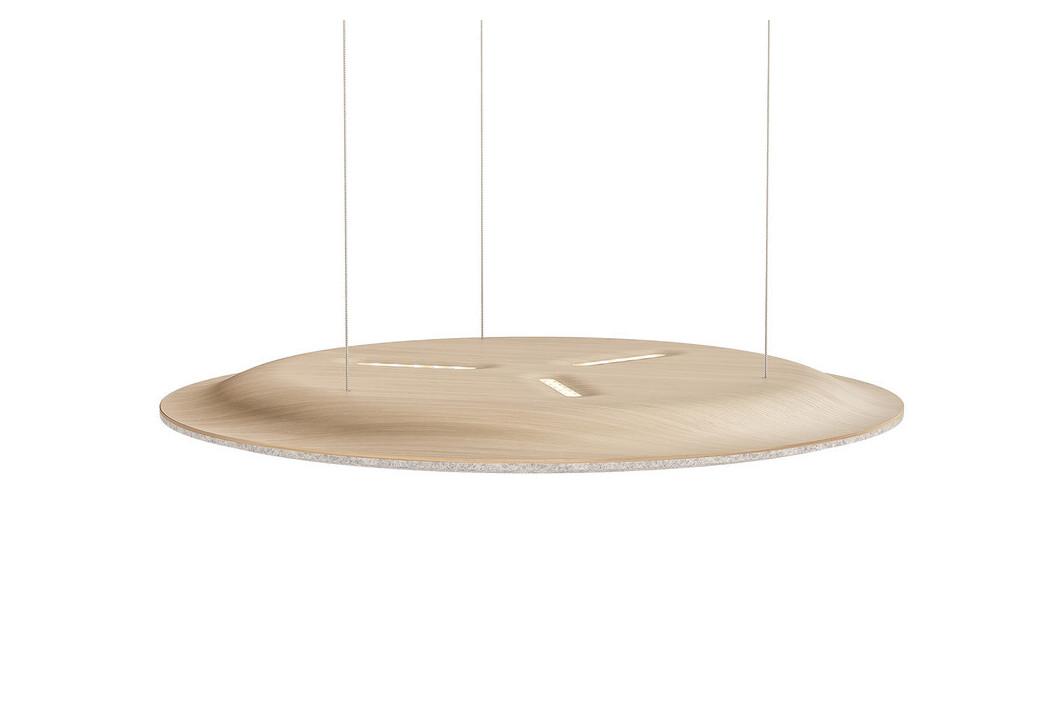

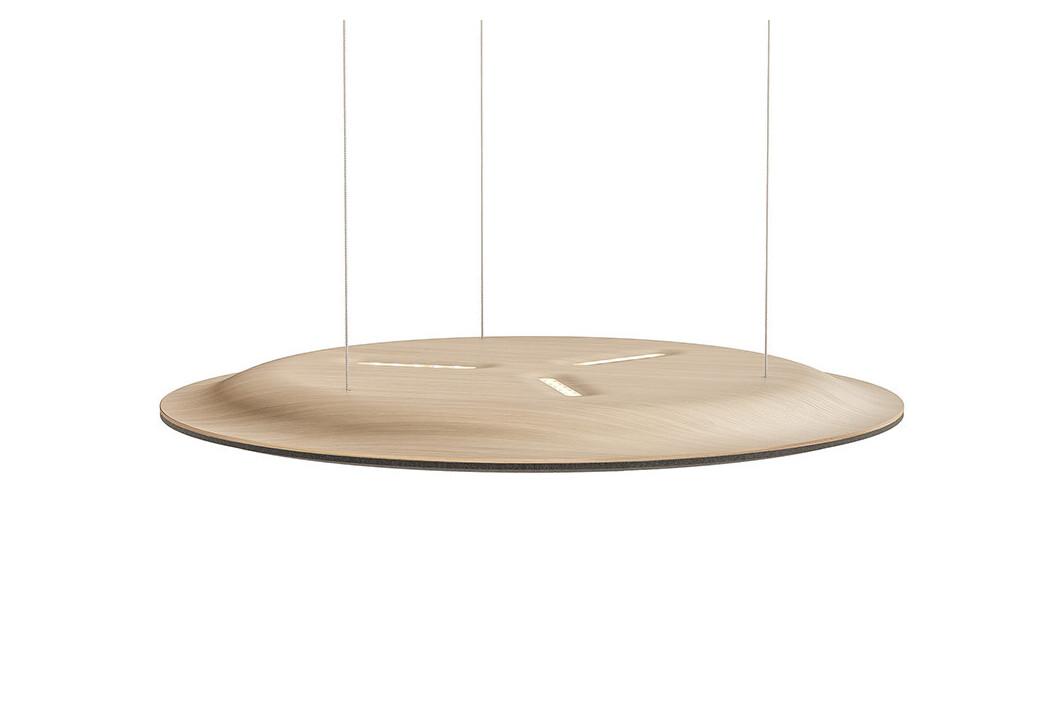

Acoustically effective pendant luminaire with body made of shaped wood and vario lift system
Acoustically effective pendant luminaire with body made of shaped wood, available in different high-quality types of wood, embossed front fleece, diameter 696 mm, versions see matrix below, canopy with driver and integrated spring lift mechanism for comfortable adjustment of pendant length, sound absorption class B, 8 Bartenbach lenses placed in the acoustic pad, effective indirect light component integrated in the shaped wood, light distribution approx. 49 % direct and 51 % indirect beam, direct light component with narrow beam, indirect light component glare-free by means of conical indentations, colour temperature adjustable 2700-4000 K, CRI > 90, controllable and dimmable via sensors or Bluetooth® wireless technology.
Dimensions: Ø 696 x 47 mm
Technology: LED-Technology
230 V AC (with converter): tunable white K, 60 W, CRI 90
Flux: up to 3500 lm
Light distribution: 49 % direct and 51 % indirect beam
Protection type: IP 20
BIM/CAD
IFC
.ifclighting-pad-lounge-r-600-vario-560-475-ifc.ifc
1.46 MBlighting-pad-lounge-r-600-vario-560-476-ifc.ifc
1.44 MBlighting-pad-lounge-r-600-vario-560-573-ifc.ifc
1.46 MBlighting-pad-lounge-r-600-vario-560-664-ifc.ifc
1.46 MBMateriales adicionales
Dibujos tecnicos
20.12 KBlvk_lpl-r-600_kit_web_eps_27-10-2020 (1).png
84.89 KBBIM
lighting-pad-lounge-r-600-vario-560-476-ifc.ifc
1.44 MBlighting-pad-lounge-r-600-vario-560-573-ifc.ifc
1.46 MBlighting-pad-lounge-r-600-vario-560-475-ifc.ifc
1.46 MBlighting-pad-lounge-r-600-vario-560-664-ifc.ifc
1.46 MB
Instrucciones
lighting-pad-lounge-r-600-vario-560-866-ba.pdf
1.42 MBlighting-pad-lounge-r-600-vario-560-868-ba.pdf
1.42 MBlighting-pad-lounge-r-600-vario-560-867-ba.pdf
1.42 MBlighting-pad-lounge-r-600-vario-560-865-ba.pdf
1.42 MBlighting-pad-lounge-r-600-vario-561-324-ba.pdf
1.42 MBlighting-pad-lounge-r-600-vario-561-440-ba.pdf
1.42 MBlighting-pad-lounge-r-600-vario-560-869-ba.pdf
1.42 MBlighting-pad-lounge-r-600-vario-561-302-ba.pdf
1.42 MBlighting-pad-lounge-r-600-vario-560-476-ba.pdf
1.42 MBlighting-pad-lounge-r-600-vario-560-475-ba.pdf
1.42 MBlighting-pad-lounge-r-600-vario-560-573-ba.pdf
1.42 MBlighting-pad-lounge-r-600-vario-560-664-ba.pdf
1.42 MB
Recursos auxiliares
lighting-pad-lounge-r-600-vario-560-867-ma.pdf
2.03 MBlighting-pad-lounge-r-600-vario-560-866-ma.pdf
2.03 MBlighting-pad-lounge-r-600-vario-560-868-ma.pdf
2.03 MBlighting-pad-lounge-r-600-vario-560-869-ma.pdf
2.03 MBlighting-pad-lounge-r-600-vario-561-302-ma.pdf
2.03 MBlighting-pad-lounge-r-600-vario-561-324-ma.pdf
2.03 MBlighting-pad-lounge-r-600-vario-561-440-ma.pdf
2.03 MBlighting-pad-lounge-r-600-vario-560-475-ma.pdf
2.03 MBlighting-pad-lounge-r-600-vario-560-476-ma.pdf
2.03 MBlighting-pad-lounge-r-600-vario-560-573-ma.pdf
2.03 MBlighting-pad-lounge-r-600-vario-560-664-ma.pdf
2.03 MBlighting-pad-lounge-r-600-vario-560-865-ma.pdf
2.03 MBlighting-pad-lounge-r-600-vario-560-867-db.pdf
552.55 KBlighting-pad-lounge-r-600-vario-560-868-db.pdf
552.55 KBlighting-pad-lounge-r-600-vario-560-866-db.pdf
552.55 KBlighting-pad-lounge-r-600-vario-560-865-db.pdf
552.55 KBlighting-pad-lounge-r-600-vario-561-324-db.pdf
552.55 KBlighting-pad-lounge-r-600-vario-560-869-db.pdf
552.55 KBlighting-pad-lounge-r-600-vario-561-302-db.pdf
552.55 KBlighting-pad-lounge-r-600-vario-561-440-db.pdf
552.55 KBlighting-pad-lounge-r-600-vario-560-476-db.pdf
552.55 KBlighting-pad-lounge-r-600-vario-560-573-db.pdf
552.55 KBlighting-pad-lounge-r-600-vario-560-475-db.pdf
552.55 KBlighting-pad-lounge-r-600-vario-560-664-db.pdf
552.55 KBnimbu_22_5300_aktualisierung_lightingpad_broschuere_screen_doppelseiten (1).pdf
15.57 MB220304_light_nimbus_neu (1).pdf
21.77 MBlighting-pad-lounge-teaser-en.pdf
3.7 MBlighting-pad-lounge-teaser-de.pdf
3.72 MB220304_light_nimbus_neu.pdf
21.77 MB
