MODULAR PULL HANDLES FOR DOOR MPS31 T5 L/P
Product details
- Producer:
- WALA
- Product code:
- MPS31 T5 L/P
- Category:
- Door accessories
- Collection:
- MODULAR HANDLES FOR DOOR
Share
Product description
Left or right site to choose

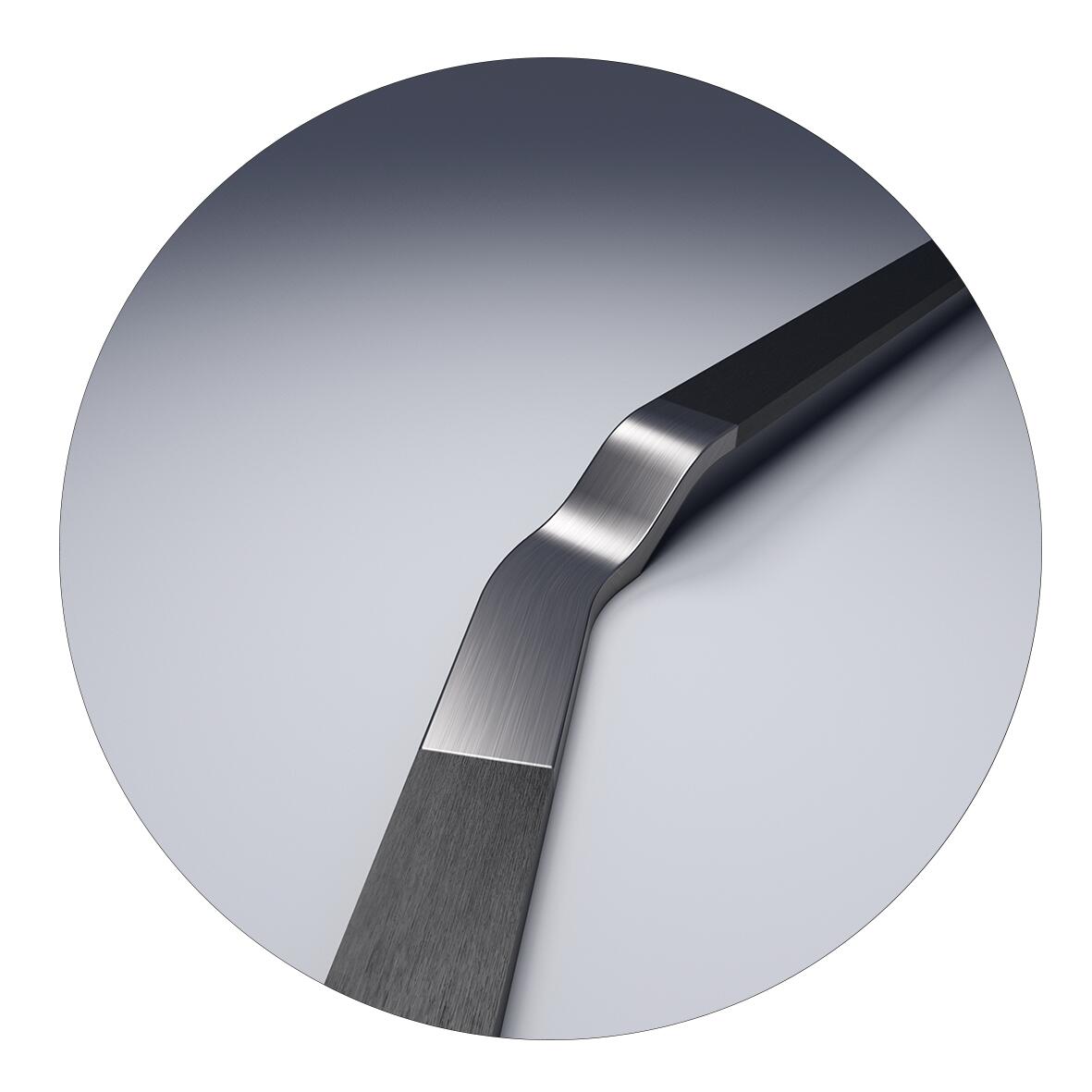

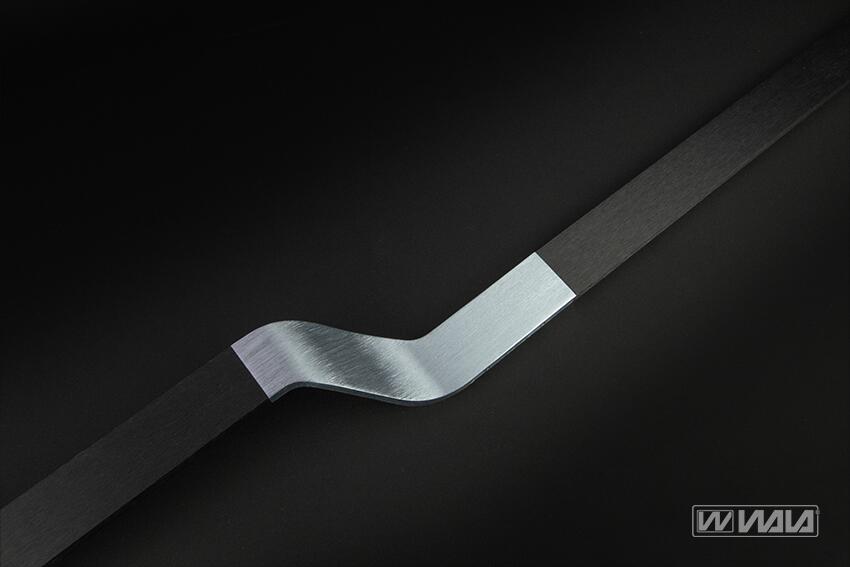

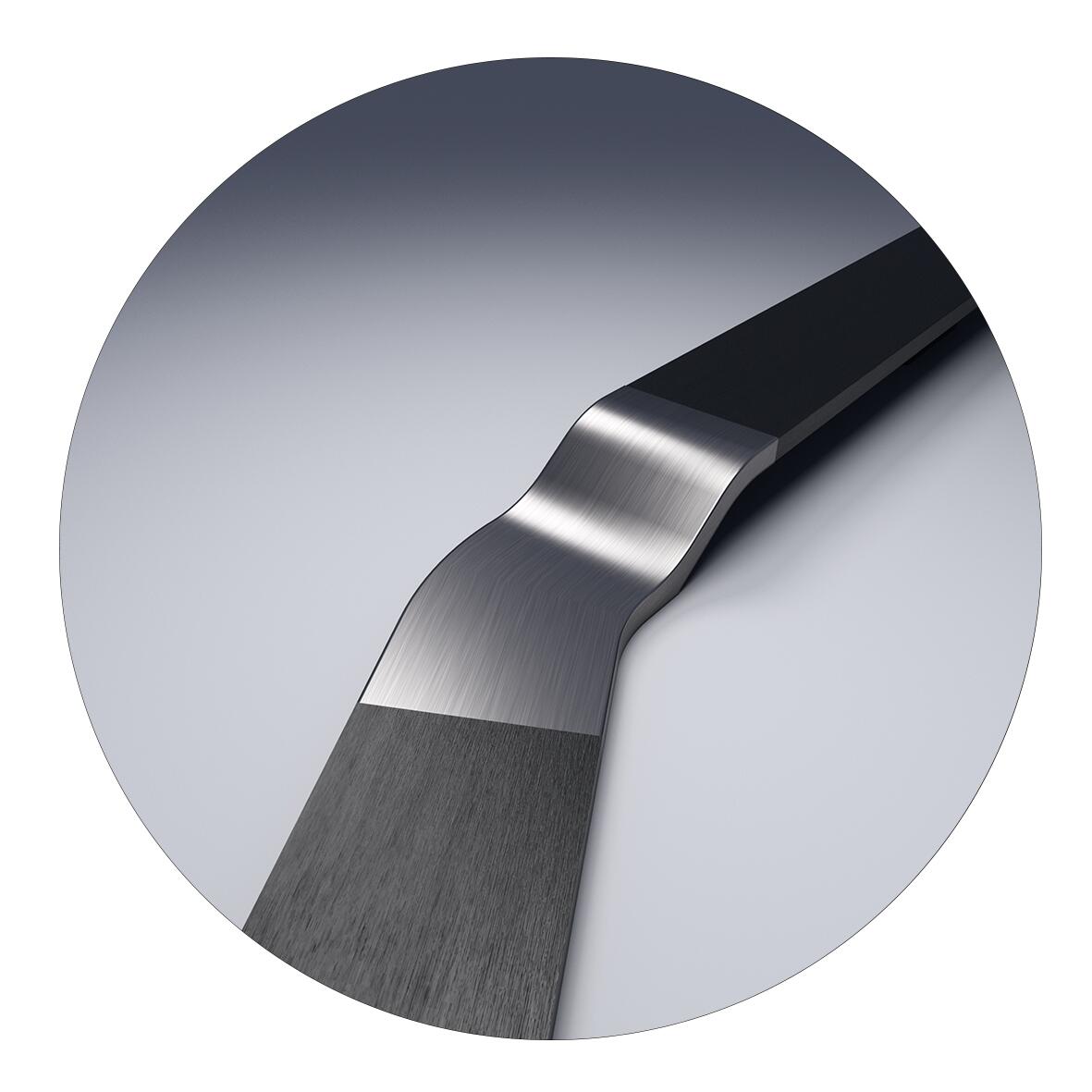

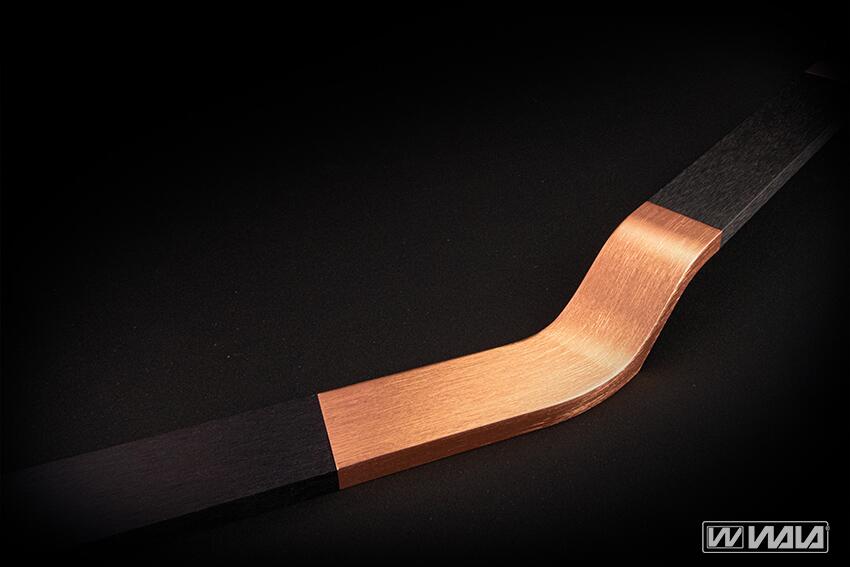

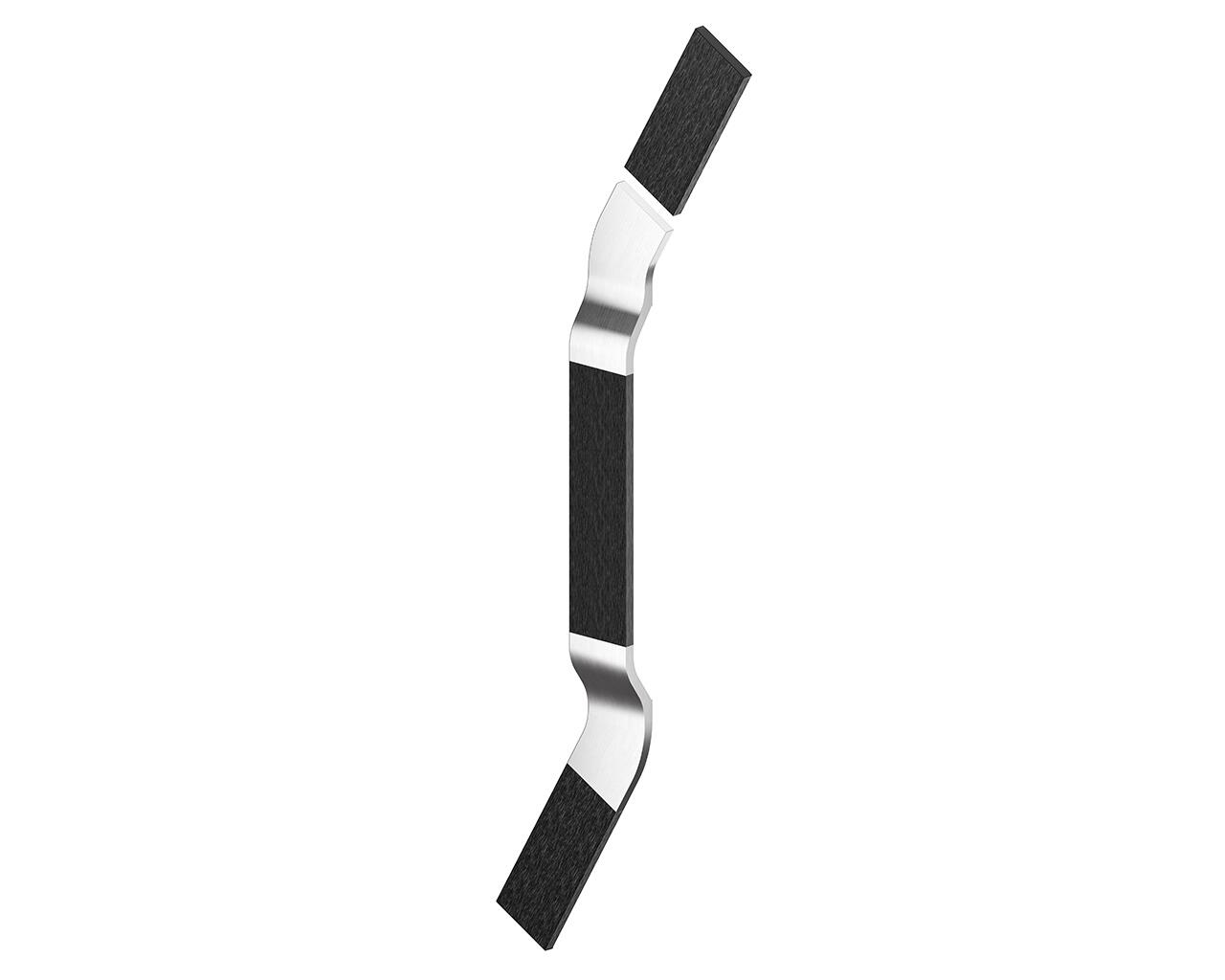

MPS31 T5 L/P is made of aluminium flat bar 80x12 and 42x12.
L or P - means handle left or handle right.
The MODULAR series allows you to finish the bases and the handle tube separately in different colors. This allows you to get amazing results of combining different coatings. This procedure makes it easier to visually match the handle to the door panel or building facade. Modular pull handles fulfill a functional and decorative function at a much higher level, due to a more flexible approach to customer requirements and tastes.
The pull handle can be finished with varnishes in the RAL palette, INOX coating, sublimation imitating wood, natural ANODE and with F-40 grind.
Due to the mounting system, MPS31 T5 L/P is intended for panel door.Handles over 600 mm standard have 1 additional mounting point, for lengths over 1200 - 2 additional mounting points.

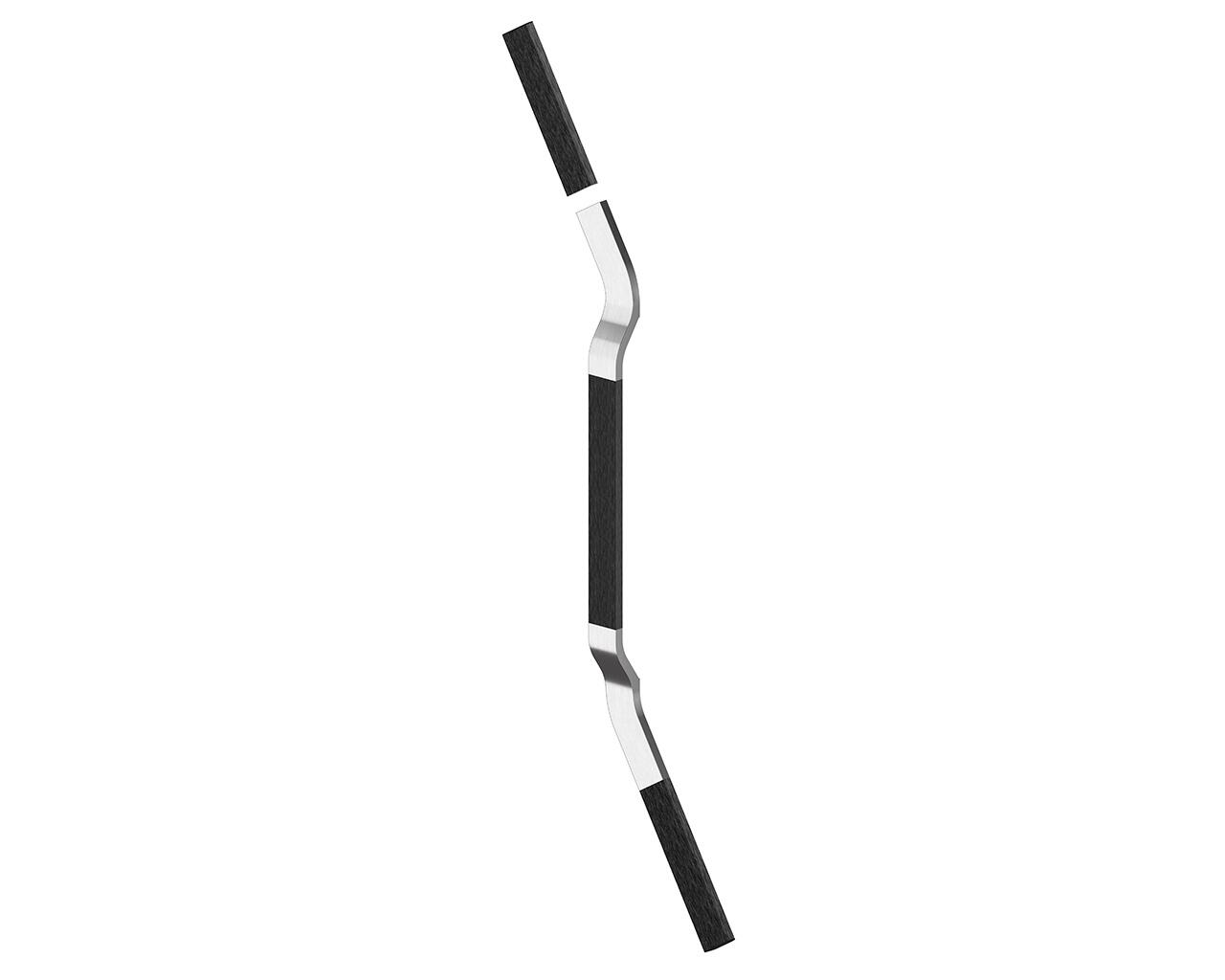

An interesting option is to extend the handle with the PS01 extension with a length of 50 - 1200 mm. The extensions are also made of a flat bar 80x12 or 42x12, can be mounted at the bottom, at the top, or on both sides at the same time. You can freely manipulate the length of the extensions, the handle can be asymmetrical.
The handle can be effectively illuminated with 2 built-in LED strips that run the entire length of the handle.
Series description
UNUSUAL MODULAR HANDLES
A'DESIGN AWARD
We are proud to share the news that our unconventional series of modular handles was appreciated by the jury so much that among the huge competition it won a place on the podium and a bronze award. We are talking about the A'DESIGN AWARD - a prestigious international award given to the best designs.
Modular handles are an innovative solution that was developed in response to the growing need to personalize door design. For architects and designers, these handles are becoming an integral part of creative visions and functional designs. Their modular design and wealth of possibilities allow to create unique solutions tailored to each project.
MODULAR HANDLES
MPS31 MODULAR HANDLES
Handles made of 80x12 and 42x12 flat bar.
MODULAR CLASSIC HANDLES
Handles based on classic handles models.
BIM LIBRARY - 3D MODELS
Modular handles combine functionality with modern design. That's why we have developed their 3D models to open the door to innovative solutions for designers. Designing your dream door has never been easier. We encourage you to enter the modular world.
The modular nature of the handles makes it possible to finish each component separately. The gripping part, bases and extensions can be customized in colours of a wide range of RAL paints or finished with INOX surface, wood imitating sublimation method, as well as with anodizing method.
- gripping part - the middle part, so-called handle tube, the length of which can be freely chosen in the range of 200 - 2000mm,
- bases - mounted on both ends of the tube, their length is 200mm and they are available in 7 different shapes,
- extensions – attached to the bases, used for the aesthetic finish of the handle, they adhere to the door and are a decorative continuation of the entire handle, they are an additional part ordered separately,
The well-designed handle becomes a kind of jewellery giving the whole structure a full and dignified expression, elegance and striking appearance, and catching the eye with a coherent design.
BIM/CAD
SketchUp 3D
.skpMPS31 T5 L-P 42x12.skp
173.48 KBMPS31 T5 L-P 80x12.skp
168.55 KBMPS31 T5L 42x12.skp
853.75 KB3Ds Max
.3dsMPS31 T5 L-P 42x12.3ds
50.66 KBMPS31 T5 L-P 80x12.3ds
40.5 KBAutocad
.dwg, .dxfMPS31 T5 L-P 42x12.dwg
77.72 KBMPS31 T5 L-P 42x12.dxf
645.04 KBMPS31 T5 L-P 80x12.dxf
736.49 KBMPS31 T5 L-P 80x12.dwg
84.23 KBCollada
.daeMPS31 T5 L-P 42x12.dae
175.76 KBMPS31 T5 L-P 80x12.dae
162.23 KBObject file 3D
.obj, .mtlMPS31 T5 L-P 42x12.obj
59.79 KBMPS31 T5 L-P 42x12.mtl
5.79 KBMPS31 T5 L-P 80x12.mtl
479 BMPS31 T5 L-P 80x12.obj
60.64 KBSTL
.stlMPS31 T5 L-P 42x12.stl
41.68 KBMPS31 T5 L-P 80x12.stl
51.06 KBMaterials
C-35 ANODA CZARNA F40_
C-0 ANODA F40_
INOX_
Cooper elektropoler F120
Cooper elektropoler F40
GOLD elektropoler F40
GOLD elektropoler F120
orzech ciemny
RAL
Details
MPS31T5 42x12 LEWY.pdf
631.98 KBMPS31T5 42x12 PRAWY.pdf
631.53 KBMPS31T5 80x12 LEWY.pdf
635.04 KBAdditional Resources
Technical drawings
MPS31T5 80x12 PRAWY.pdf
635.01 KBMPS31T5 80x12 LEWY.pdf
635.04 KBMPS31T5 42x12 PRAWY.pdf
631.53 KBMPS31T5 42x12 LEWY.pdf
631.98 KB
