23SL

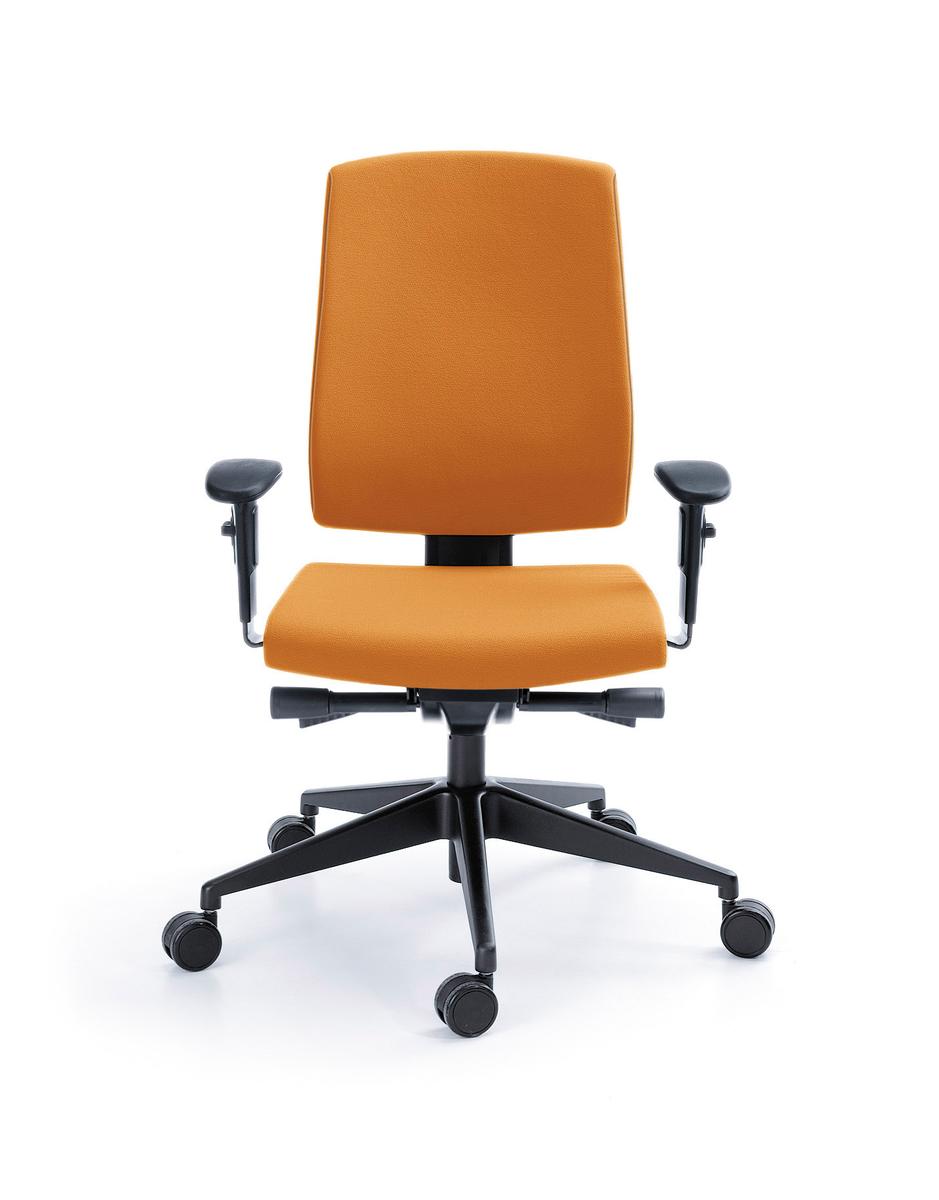

23SL - swivel chair, backrest fully upholstered, Synchro SL mechanism


mechanism

Synchro S - adjustment of seat height, synchronising mechanism with the possibility to adjust the resilience of the backrest to the weight of the sitting person

Synchro SL - S mechanism with function of sliding seat


base

Five-star base.


Variants:
- black (plastic) - standard
- chrome (polished aluminum) - option
- metallic (powder coated) - option


armrest

  • P52PA - fixed armrest, polyamide pad. Colour of armrest: black
  • P54PU - height adjustable armrest (range 80 mm), polyurethane pad. Colour of armrest frame: black.
  • P46PU - fixed armrest, polyurethane. Colour of armrest frame: black.
  • P45PU - height adjustable armrest (range 70 mm), polypropylene pad. Colour of armrest frame: black.
  • P45PP - height adjustable armrest (range 70 mm), polyurethane pad. Colour of armrest frame: black.
  • P49PU - height adjustable armrest (range 70 mm), sliding pad (range +/- 18 mm), polypropylene pad. Colour of armrest frame:
    black.
  • P49PP - height adjustable armrest (range 70 mm), sliding pad (range +/- 18 mm), polyurethane pad. Colour of armrest frame:
    black.
  • P51PU - height adjustable armrest (range 100 mm) with span adjustment (range 19 mm on each side), polyurethane pad.Colour of armrest frame:
    black.

castors / glides

- standard - hard castors
- option - soft castors


seat

Deciduous plywood; cold molded foam - density 80 kg/m3.


backrest

Made of plastics; adjustable; cold molded foam - density 75 kg/m3.

- upholstered on both sides


net weight

– 17,5 kg


gross weight

– 20,0 kg

Series description

The Raya family of chairs represents our commitment to the comfort of employees. Raya is a modern and user-friendly office chair. Ergonomic design, adjustable armrests, backrest height, seat height and depth, coupled with the Synchro mechanism enable the so-called "dynamic sitting". As a result, the chair meets expectations of those who spend up to over ten hours at their desks. It stands out from other products because of its simple design, with geometric contrasts and clear, sharp lines, as well as materials, featuring parts made of plastic, metal or upholstered. We offer several dozen upholstery fabrics, what makes the chair extremely universal in its usage. Raya is in line within current trends in workplace design. In addition to the swivel version, the family also features conference chairs with legs or a cantilever.
File format
FilesSizeAction
dwg

Autocad

ZIP

CAD: 2

Raya_23SL_P45.dwg 867.46 KB
Raya_23SL_P52.dwg 957.43 KB
aco

ArCon

ZIP

CAD: 2

Raya_23SL_P45.aco 1.29 MB
Raya_23SL_P52.aco 1.39 MB
3ds

3Ds Max

ZIP

CAD: 2

Raya_23SL_P45.3ds 732.37 KB
Raya_23SL_P52.3ds 794.42 KB
All resources below have been provided by the manufacturer. If you are interested in details or additional information, which you have not found in the service, please contact the manufacturer.
