Product description

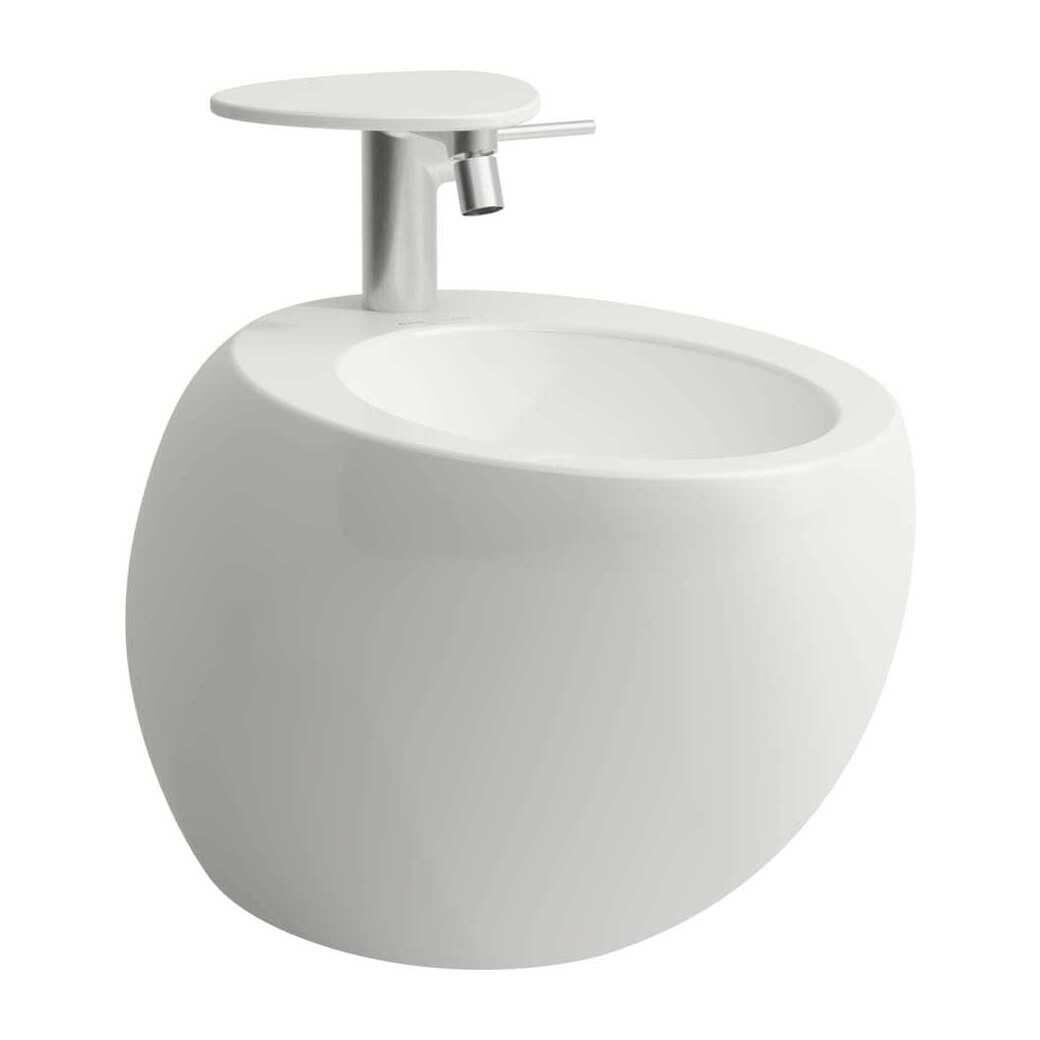

Wall-hung bidet, with concealed overflow, incl. ceramic waste cover.
TECHNICAL SPECIFICATIONS :
- Back-to-wall
- Fixing kit: Included
- Installation type: Wall-hung
- Option: with one tap hole at centre, two lateral holes for water connection
- Shape: Round
- Taphole configuration: 1 taphole
- DIMENSIONS: 585 x 390 x 355 mm (length, width, height)
- COLOUR: 400 - White LCC (LAUFEN Clean Coat)
TECHNICAL DESCRIPTION
Wall-hung bidet Laufen-ILBAGNOALESSI, sanitary ceramic, EN 36, dimensions 390 x 585 x 355 mm, 1 centre tap hole, concealed waste and overflow system, ceramic valve, cover plate, concealed fixation.
Special feature: vacuum checked.
Further options / accessories: Surface refinement LCC (only white), lateral mounting holes for water connection.
MOUNTING ACCESORIES INCLUDED
Waste and overflow system, order no. H893943
Ceramic valve cover plate, order no. H898190
Laufen EasyFit 2.0 system M12,
order no. H893828
MOUNTING ACCESORIES EXCLUDED
Siphon DN 40, order no. H893948
Antinoise set, order no. H892695
Stone screw fixing set M12
Nickelled articulation, order no. WI891225903
Series description
ILBAGNOALESSI is a bathroom design that has cast its spell over the home design world for years: It is characterised by a timeless form, sparkling imagination and a hint of eccentricity. This design award-winning ensemble is the creation of Italian designer star, Stefano Giovannoni.
