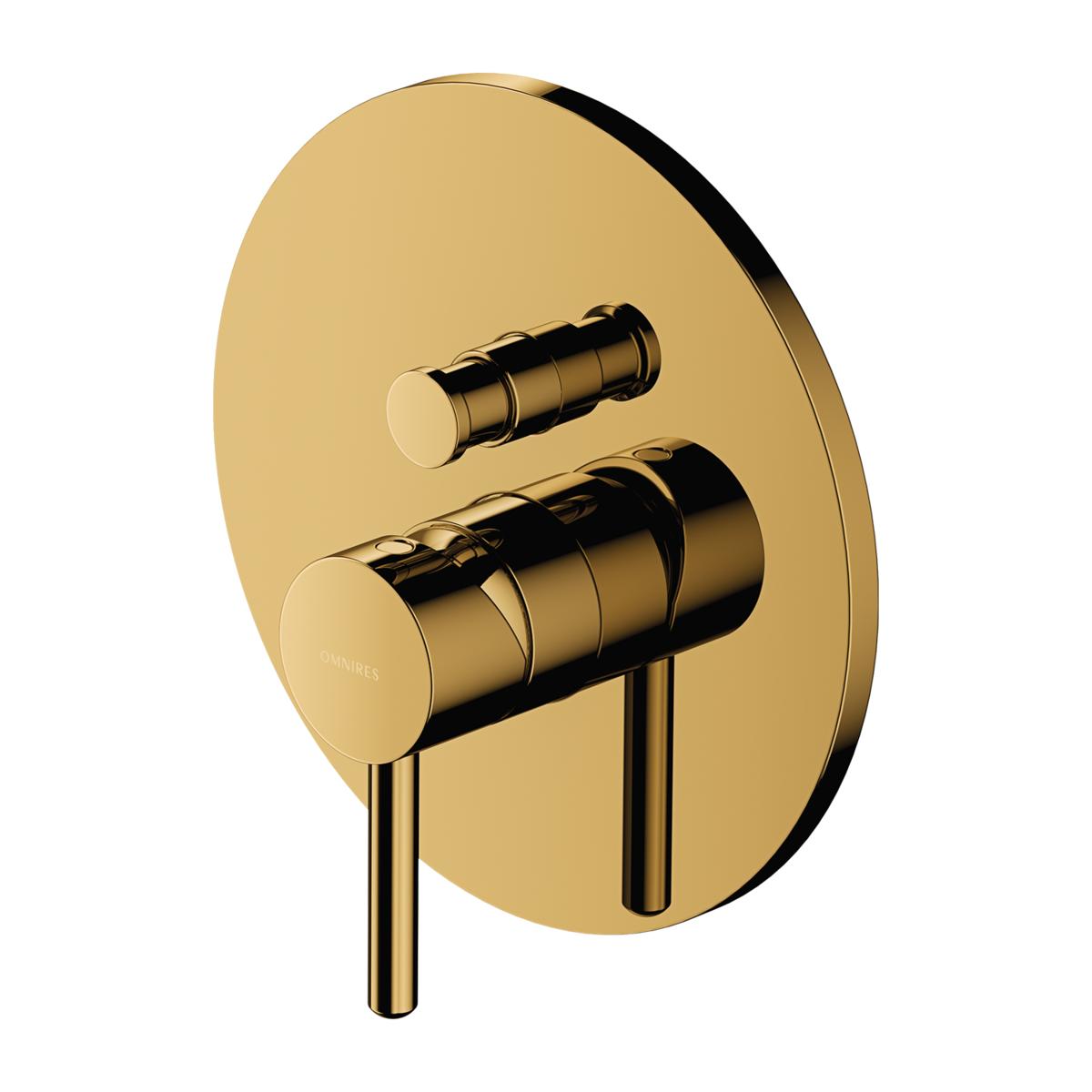

Y Y1235GL - Shower/bath mixer for concealed installation, gold

Product details

Producer:
OMNIRES
Product code:
5902539822595
Category:
Bath Taps
Collection:
BATHROOM MIXERS
https://www.omnires.com
Instagram
Facebook
Share

Product desription

Technical data:

  • rosette dimensions: ø17 cm
  • minimum wall depth: 5 cm
  • two 1/2” inlets (cold and hot water), two outlets for mixed water: 1/2” and 3/4”
  • built-in parts included

BIM/CAD

SketchUp 3D

.skp
Files
app.noun.author
app.product.media_content

5902539822595_skp.skp

4.55 MB
OMNIRES
app.product.media_nopreview

Autocad

.dwg
Files
app.noun.author
app.product.media_content

5902539822595_dwg.dwg

1.04 MB
OMNIRES
app.product.media_nopreview

Additional Resources

All resources below have been provided by the manufacturer. If you are interested in details or additional information, which you have not found in the service, please contact the manufacturer.
Y Y1235GL - Shower/bath mixer for concealed installation, gold Instructions

Instructions

Files
app.product.media_content

5902539822595_instrukcja.pdf

971.24 KB
Y Y1235GL - Shower/bath mixer for concealed installation, gold Technical drawings

Technical drawings

Files
app.product.media_content

5902539822595_rys_tech.pdf

701.73 KB

See also
