Scan 68 with long steel sides
Données du produit
- Fabricant:
- Scan
- Code du produit:
- MD-SC68ZDSB
- Catégorie:
- Fours autonomes
Partagez
Description du produit
SCAN 68
Scan 68 draws its design from the iconic Scan 58 series, one of the world's bestselling stoves.
The straight lines and combination of glass and aluminium represent
the principal of design expression. The elliptic shape adds an
expression into its surroundings and is a joy to watch.
The Scan 68 series is available with three different base options - or you can simply hang it on the wall.

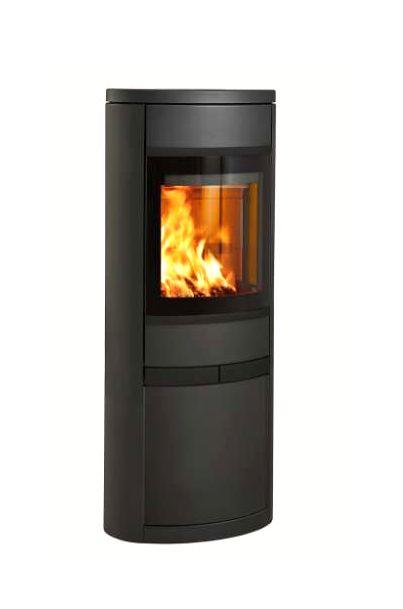

Scan 68 with long steel sides
This version of Scan 68 has sides in one single piece which makes this design truly seamless and extremely elegant. Available with handles and mouldings in black or aluminium.
Standard features
- Stove colour black
- Wood compartment door
- Prepared for closed combustion
Options
- Handles and mouldings in black or aluminium
- Extra accessories
- Top plate soap stone
- Shaped floor plate (glass or steel)
Specifications
- EN-nominal output: 5,0 kW
- Efficiency: 79%
- Emission: 0,06 (% CO by 13% O2)
- Est. operating range: 3-8 kW
- Room size approx.: 50-300 m3
- Max. log length: 33 cm
- Weight standard model: 105 kg
- Height to the middle of flue outlet rear: 1110/1160 mm
- Fire box opening HxB: 310x303 mm
- Flue outlet: Ø 150 mm
- Approvals: EN 13240 / NS 3058 / Österreich 15a / Schweiz VKF / DEFRA
BIM/CAD
3Ds Max
.3ds, .maxFichiers
app.noun.author
app.product.media_content
Scan_68-13.3ds
653.95 KBScan
Scan_68-13.max
1.19 MBScan
app.product.media_nopreview
Scan_68-13-door.3ds
671.31 KBScan
Scan_68-13-door.max
1.22 MBScan
app.product.media_nopreview
Archicad
.gsmFichiers
app.noun.author
app.product.media_content
Scan_68-13.gsm
3.5 MBScan
app.product.media_nopreview
Scan_68-13-door.gsm
3.59 MBScan
app.product.media_nopreview
Autocad
.dxf, .dwgFichiers
app.noun.author
app.product.media_content
Scan_68-13.dxf
9.61 MBScan
app.product.media_nopreview
Scan_68-13_3d.dwg
763.17 KBScan
app.product.media_nopreview
Scan_68-13_front.dwg
339.87 KBScan
app.product.media_nopreview
Scan_68-13_side.dwg
321.11 KBScan
app.product.media_nopreview
Scan_68-13_top.dwg
68.04 KBScan
app.product.media_nopreview
Scan_68-13-door.dxf
9.85 MBScan
app.product.media_nopreview
Scan_68-13-door_3d.dwg
781.47 KBScan
app.product.media_nopreview
Scan_68-13-door_front.dwg
347.14 KBScan
app.product.media_nopreview
Scan_68-13-door_side.dwg
335.44 KBScan
app.product.media_nopreview
Scan_68-13-door_top.dwg
69.11 KBScan
app.product.media_nopreview
