Stay flap fittings FREE FLAP
Données du produit
- Fabricant:
- Häfele Polska Sp. z o. o.
- Catégorie:
- Accessoires de meubles
Häfele Polska Sp. z o. o.
Partagez
Description du produit

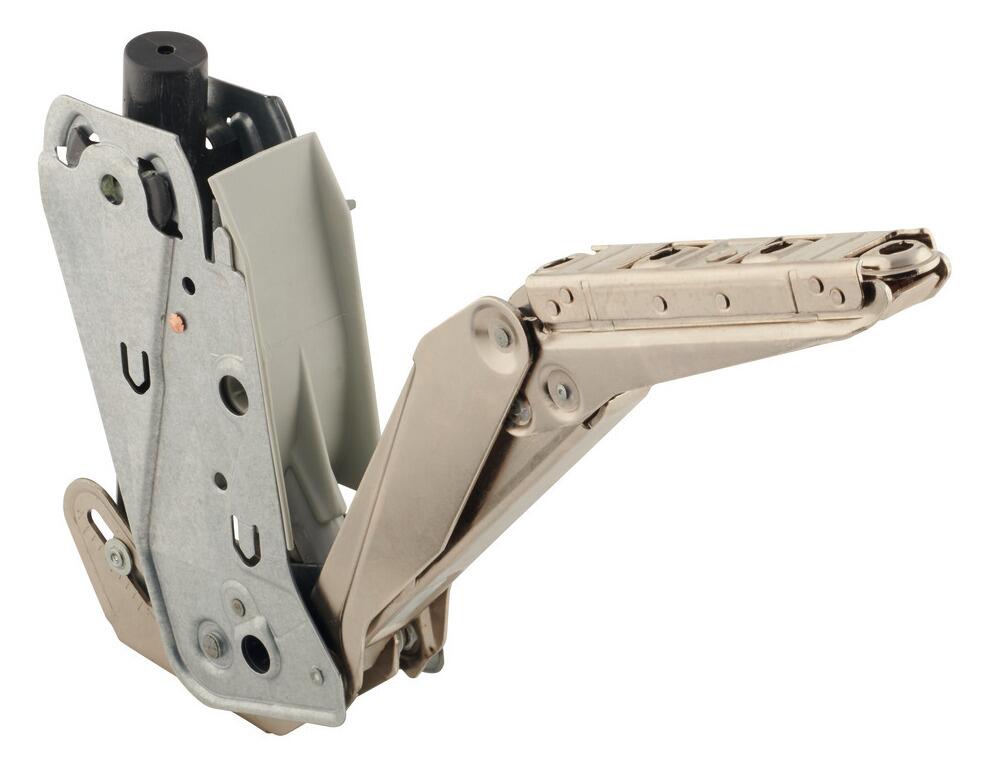

Fittings for Häfele Free Flap 1.7 and Free Flap 3.15 one-piece lift-up flaps
> For larger one-piece wooden, glass or aluminium framed flaps
> Extremely little space requirement
> no additional hinge connection necessary
> With integrated soft closing mechanism
> Flap locks in any position
> opening angle: 107 °
> For cabinet heights
250 - 450 mm / Free Flap 1.7
400 - 650 mm / Free Flap 3.15
> 3 housing colours to choose from:
- white
- grey
- anthracite
Ordering note
The choice of stay flap fitting and push catch for handle-free front panels depends on the cabinet height and the flap weight. For model selection see sample measurements tables.
Please order adapter for flaps with 20 mm aluminium frame separately.
Please order glass gluing adapter for all-glass front panels separately.
Matériaux supplémentaires
Dessins techniques
37.53 KBmont-04424860.jpg
52.57 KBmont-04424308.jpg
58.37 KB
Ressources auxiliaires
catalog_ENG_Free_Flap_3.15.pdf
755.63 KBcatalog_ENG_Free_Flap_1.7.pdf
942.69 KBOdbojniki_akcesoria_Free_Flap.pdf
1.28 MBsafety_notice_Free_Flap_1.7_3.15.pdf
880.63 KB
Instructions
ins-doc-Free_Flap_1.7.pdf
2.16 MBins-doc-Free_Flap_Electric_1.7.pdf
9.78 MBins-doc-Free_Flap_3.15.pdf
2.17 MBins-doc-Free_Flap_Electric_3.15.pdf
9.3 MB
Catalogues
Katalog_PL_Free_Flap_1.7_3.15.pdf
1.08 MBblaetterkatalog-skompresowany.pdf
59.57 MBFREE_SPACE_2024.pdf
1.7 MB
