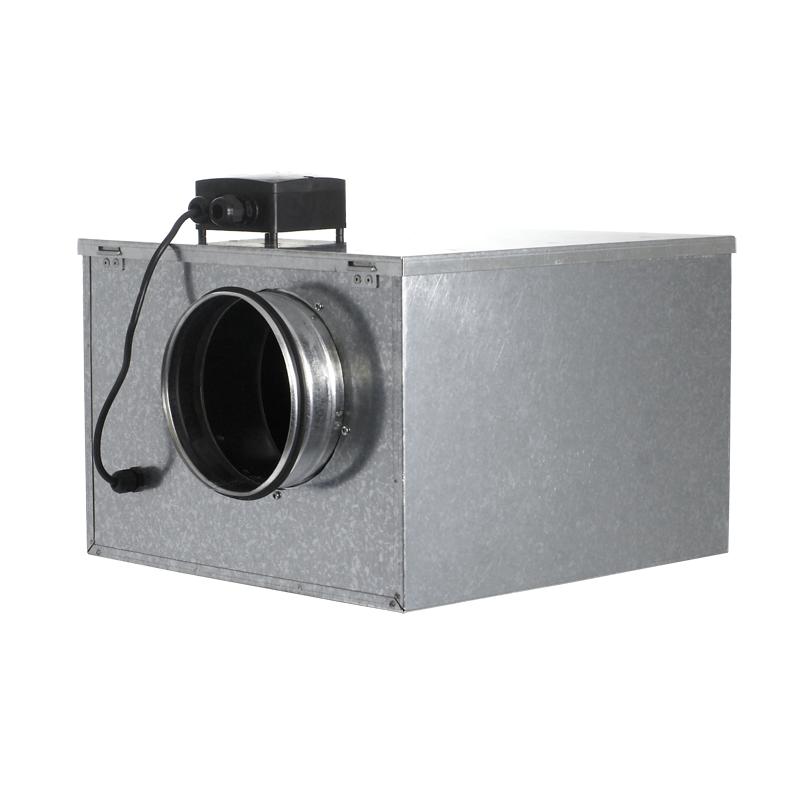

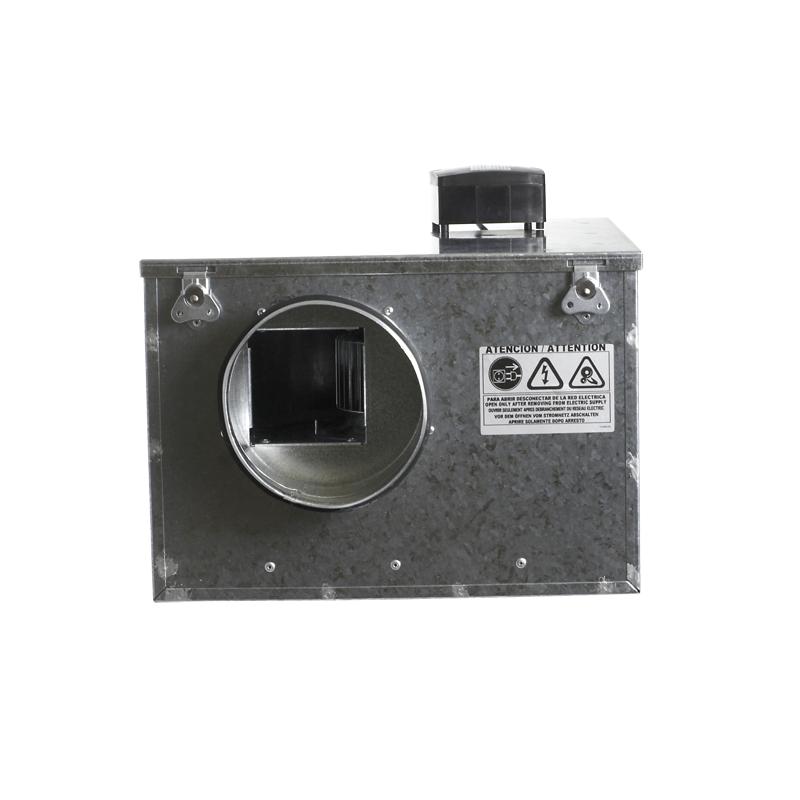

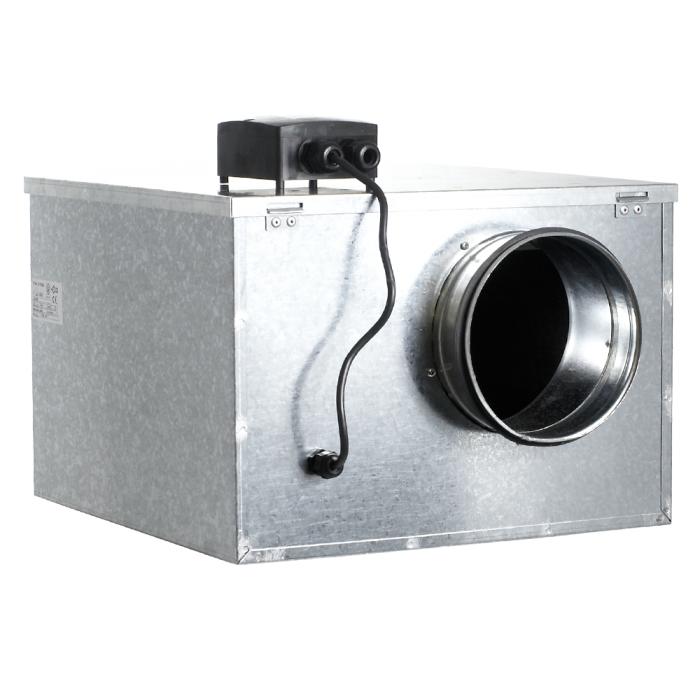

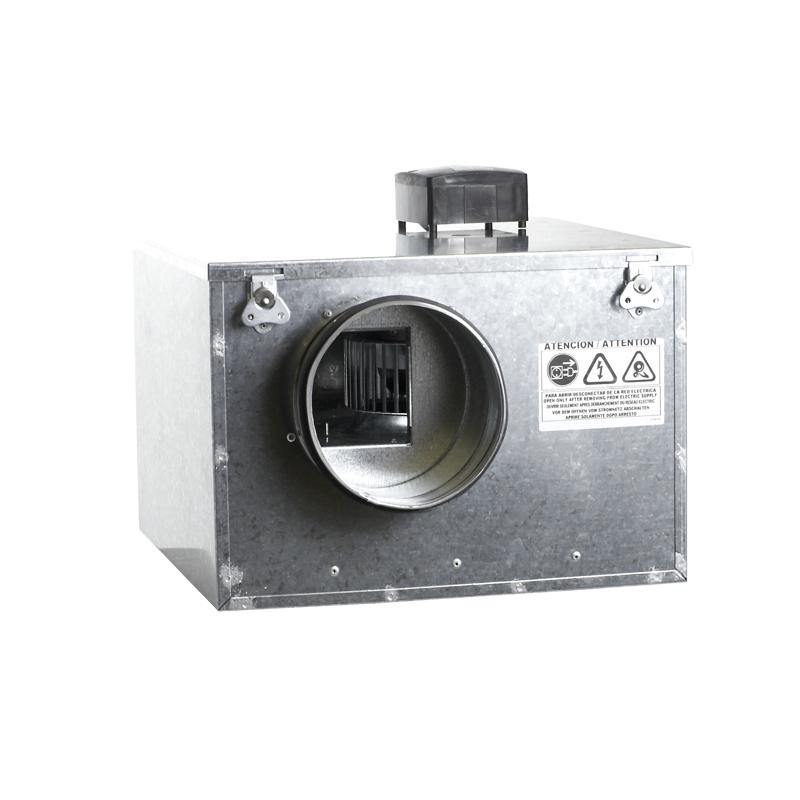

in line duct-fan CAB

APPLICATION
Very quiet operation makes CAB ideal for ventilation of public buildings, libraries, conference rooms, offices, restaurants, classrooms, audio studios, etc.
CONSTRUCTION
Housing made of galvanized sheet steel, fire resistant acoustic (MO fiberglass)
layer 50 mm thick.

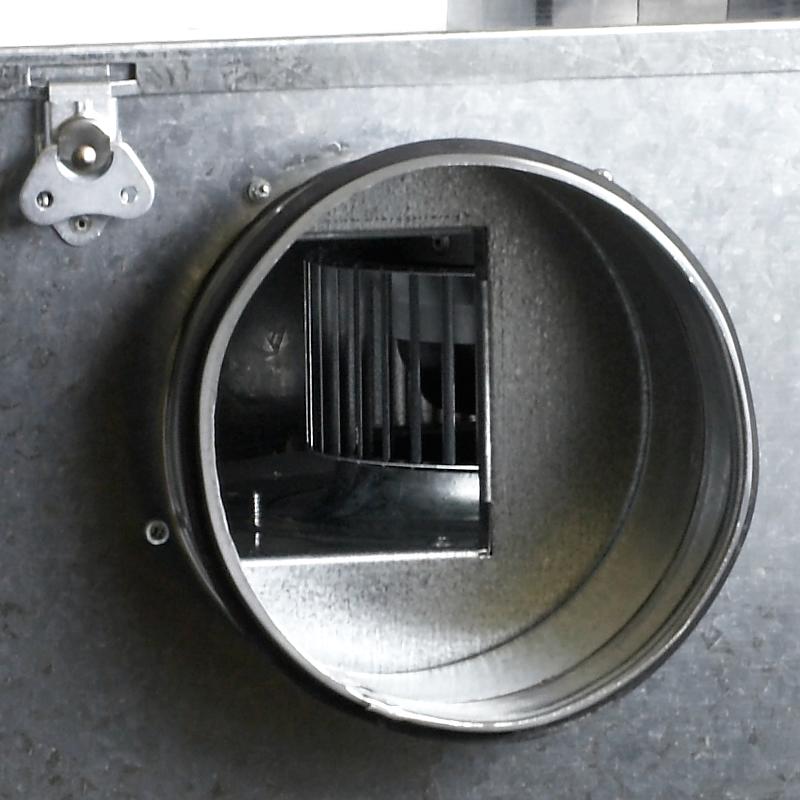

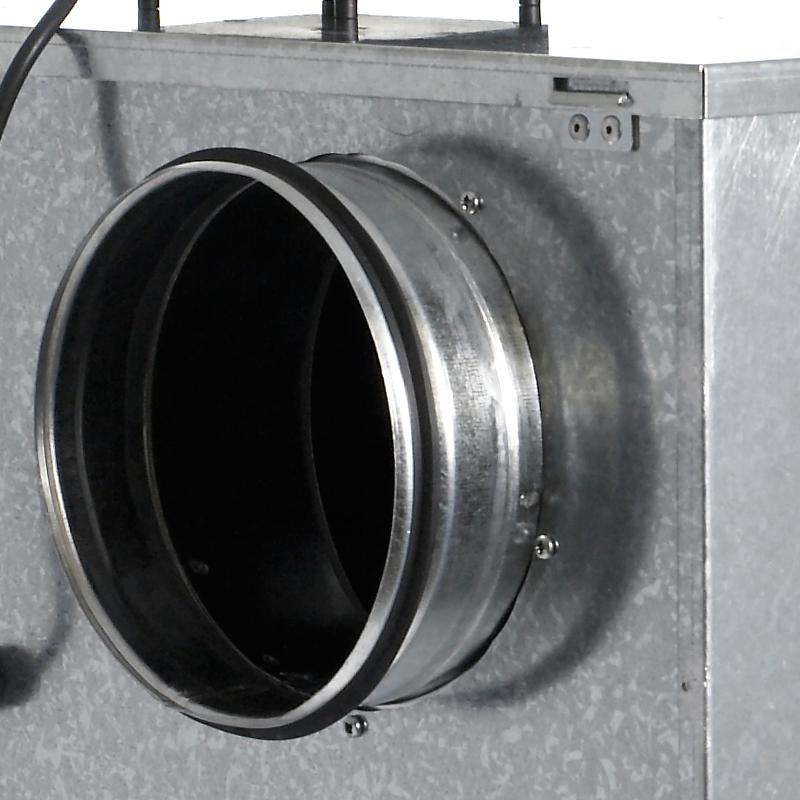

Impeller with forward curved blades of galvanized sheet steel. Circular connection joints with rubber gaskets.

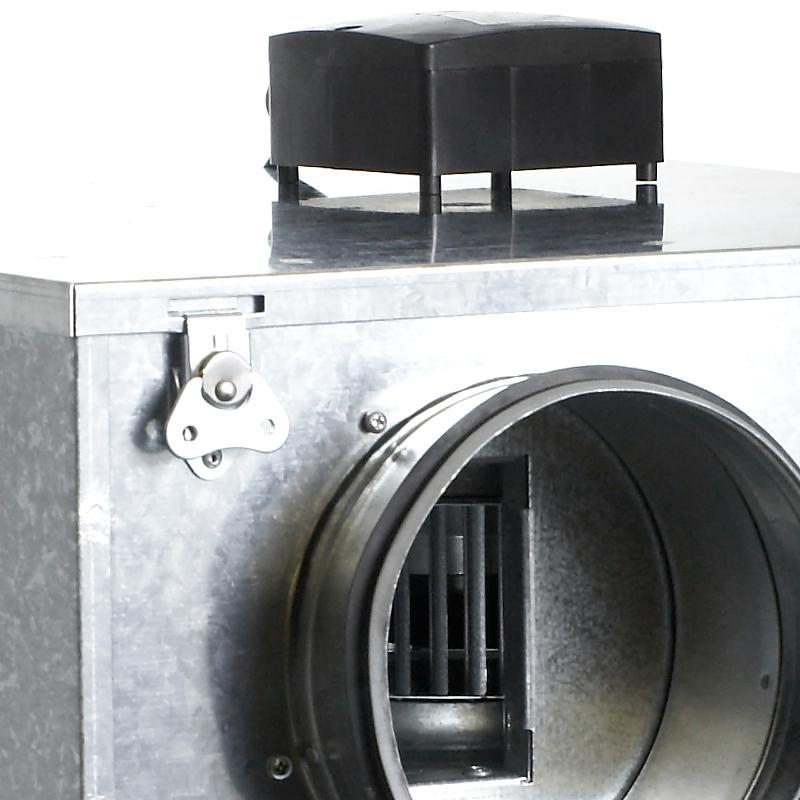

The open housing allows access to the impeller and motor without dismantling the fan from the installation. The housing cover is fitted with locks for
fast inspection without additional tools. All models are also equipped with four
mounting brackets to allow the fan to be installed on a wall, floor or ceiling.
As standard the device is designed to be mounted directly to the outside.
MOTOR
The fans are equipped with asynchronous, single-phase 230V, 50/60Hz (models 100, 125, 150, 160), 230V, 50Hz (models 200, 250N, 315 RE, 355 RE, 400 RE),
with ball bearings. CAB 100 - CAB 250N models have IP44 protection rating,
insulation class B, CAB 315 RE - IP44 protection class, insulation class F, CAB
models 355 RE - CAB 400 RE - IP55 protection class, insulation class F.
All motors are designed for voltage-controlled speed control.
