Wall Lamps, Q Four Connect ON-X 80°, Häfele Polska Sp. z o. o.

Realization: Q FOUR Connect Familyapp.noun.author: Häfele

Q Four Connect ON-X 80°

Producer:: Häfele Polska Sp. z o. o.
Category:: Wall Lamps
Collection:: Q FOUR Connect Family

Häfele Polska Sp. z o. o.

Visit the product page

: https://www.hafele.pl/pl/
: Facebook
: Instagram
: YouTube
: Instagram

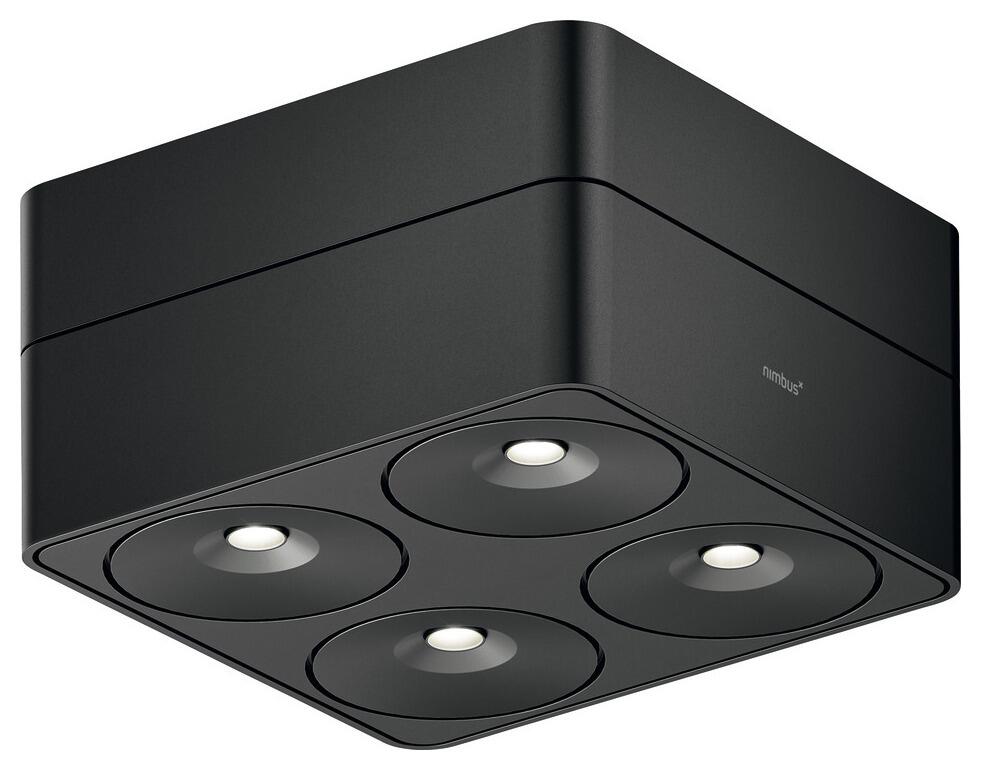

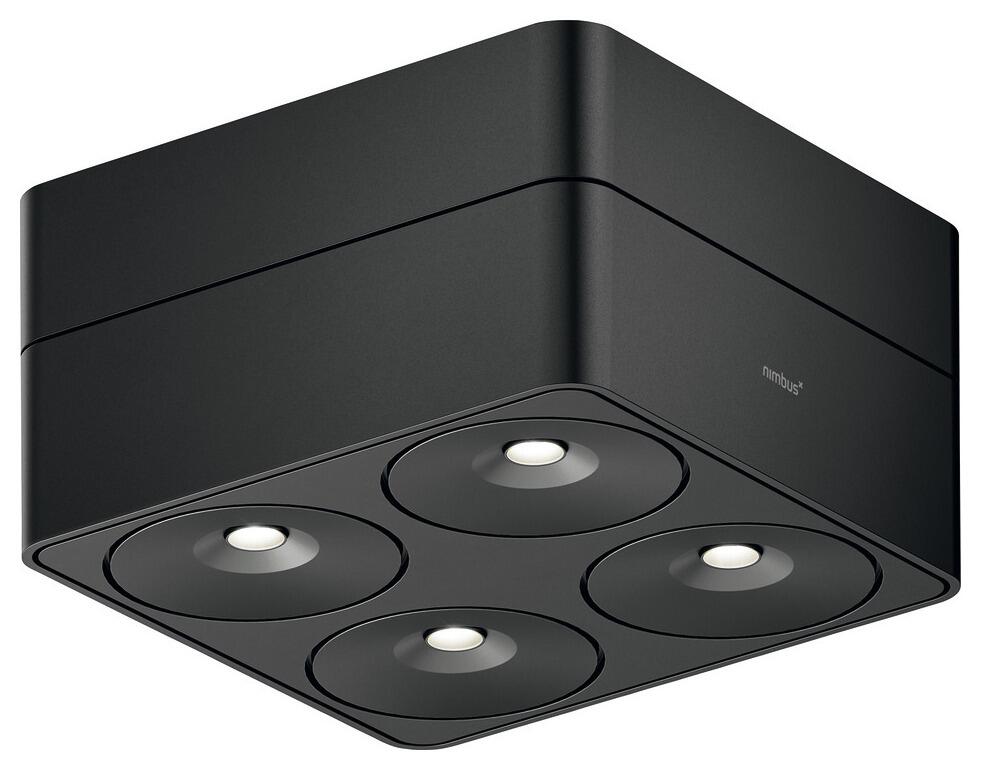

Nimbus Q Four Connect ON-X 80° 24 V Multi-White

Ceiling spotlight with surface-mounting housing made of aluminium

Version: required external Loox5 driver (24 V) free Connect Mesh App 2.0 for Apple iOS® and Android completely wireless control via Connect Mesh

2 housing color/finish: matt black / matt white

Colour temperature: 2700 K - 5 000 K (Multi-White)

Wattage: 15,00 W

Dimmable: yes

Housing material: Plastic

Life time: L80/B10 >50,000 h

Colour rendering index Ra: >90

Degree of protection: IP20

Installation: Direct fixing

Installation reference: Light with permanent magnet for adhesion to installation ring.

Direct installation: mounting ring for screw fixing to surfaces (drilling distance 79 mm) or to cavity box (drilling distance 60 mm).

Cable length: 160,00 mm

Order reference : Colour control directly via remote controls from the Connect Mesh product range or Smartphone.

Installation of the free Häfele Connect Mesh app required.

Important: Power supply of light provided via 2-pin leads. Mounting ring for cavity installation 833.67.779. Please order separately. Please order Loox5 driver 24 V separately.

Supplied with :

- 1 light including lead (24 V)

- 1 surface-mounted housing

- 1 mounting ring for direct installation

Series description

Q FOUR Connect Family

Ceiling luminaires with wireless control on the Connect Mesh network via remote control, wireless switch or the free Hafele Connect Mesh 2.0 app. Variable colour temperature: 2700 K - 5000 K

Nimbus is now presenting the Q FOUR family – an evolution of Modul Q ceiling luminaires featuring a spot.

The focused light enables the realisation of defined lighting zones and the accentuation of surfaces and spaces.

The clear-cut, geometric basic shape of the proven Nimbus Modul Q family continues to constitute a characteristic design feature.

Nimbus has placed special focus on optimised and harmonious glare suppression.

As light sources, the modules retreat completely into the background, the light shines "from behind the scenes".

The compact modules integrate Bartenbach lenses with four high-performance LEDs.

The luminaires blend in with the surrounding interior and are kept in timelessly elegant black or white.

The luminaires have a built-in Connect Mesh module, which allows them to be connected to a Bluetooth wireless network, configured and controlled wirelessly,

Possibility to change the colour, degree of dimming and set time schedules in the application.
