Q Four Connect IN 80°

Product details

Producer:
Häfele Polska Sp. z o. o.
Category:
Recessed Lamps
Collection:
Q FOUR Connect Family

Häfele Polska Sp. z o. o.

Visit the product page
https://www.hafele.pl/pl/
Facebook
Instagram
YouTube
Instagram
Share

Product description

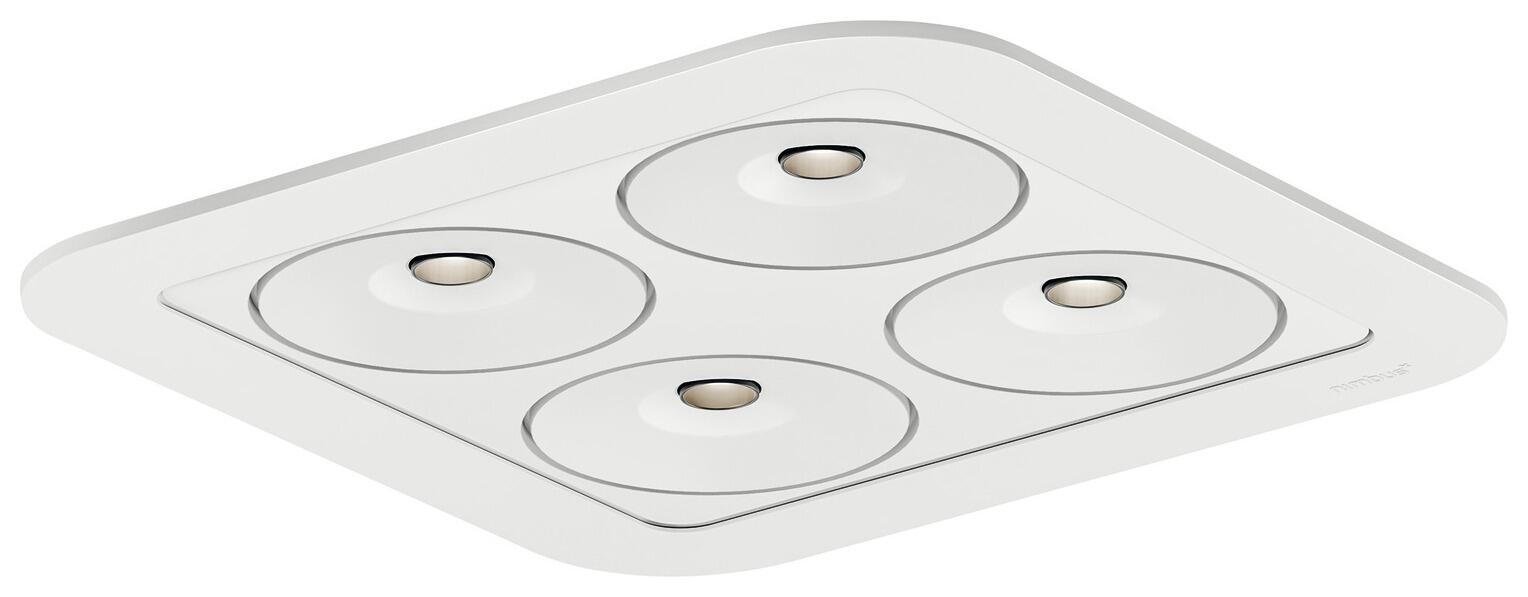

Nimbus Q Four Connect IN 80° Multi-White

Ceiling spotlight for cavity mounting Version: required external Loox5 driver (24 V) free Connect Mesh App 2.0 for Apple iOS® and Android completely wireless control via Connect Mesh

2 housing color/finish: matt black / matt white

Colour temperature: 2700 K - 5 000 K (Multi-White)

Wattage: 15,00 W

Dimmable: yes

Housing material: Plastic

Dimensions: 150 x 150 mm

Life time: L80/B10 >50,000 h

Colour rendering index Ra: >90

Degree of protection: IP20

Installation: Direct fixing

Installation reference: Light with permanent magnets for attaching to recessed ceiling plate with spring clips.

Wall cut-out (W x H) 133 x 133 mm, 100 mm deep.

Cable length: 160,00 mm

Order reference : Colour control directly via remote controls from the Connect Mesh product range or Smartphone.

Installation of the free Häfele Connect Mesh app required.

Important: Power supply of light provided via 2-pin leads.

Max. lead length from Loox5 driver to consumer 10 m.

Please order the driver separately.

Supplied with :

- 1 light including lead 24 V

- 1 ceiling installation plate for cavity installation including cover frame

Series description

Q FOUR Connect Family

Ceiling luminaires with wireless control on the Connect Mesh network via remote control, wireless switch or the free Hafele Connect Mesh 2.0 app. Variable colour temperature: 2700 K - 5000 K

Nimbus is now presenting the Q FOUR family – an evolution of Modul Q ceiling luminaires featuring a spot.

The focused light enables the realisation of defined lighting zones and the accentuation of surfaces and spaces.

The clear-cut, geometric basic shape of the proven Nimbus Modul Q family continues to constitute a characteristic design feature.

Nimbus has placed special focus on optimised and harmonious glare suppression.

As light sources, the modules retreat completely into the background, the light shines "from behind the scenes".

The compact modules integrate Bartenbach lenses with four high-performance LEDs.

The luminaires blend in with the surrounding interior and are kept in timelessly elegant black or white.

The luminaires have a built-in Connect Mesh module, which allows them to be connected to a Bluetooth wireless network, configured and controlled wirelessly,

Possibility to change the colour, degree of dimming and set time schedules in the application.

BIM/CAD

SketchUp 3D

.skp
Files
app.noun.author
app.product.media_content

833_67_913_3.skp

14.55 MB
Häfele Polska Sp. z o. o.
app.product.media_nopreview

Autocad

.dwg, .dxf
Files
app.noun.author
app.product.media_content

833_67_913_1.dwg

1.52 MB
Häfele Polska Sp. z o. o.
app.product.media_nopreview

833_67_913_2.dxf

1.3 MB
Häfele Polska Sp. z o. o.
app.product.media_nopreview

Collada

.dae
Files
app.noun.author
app.product.media_content

833_67_913_5.dae

13.51 MB
Häfele Polska Sp. z o. o.

Object file 3D

.mtl, .obj
Files
app.noun.author
app.product.media_content

833_67_913_4.mtl

540 B
Häfele Polska Sp. z o. o.
app.product.media_nopreview

833_67_913_4.obj

11.36 MB
Häfele Polska Sp. z o. o.

Additional Resources

All resources below have been provided by the manufacturer. If you are interested in details or additional information, which you have not found in the service, please contact the manufacturer.
app.product.media_nopreview

Technical drawings

Files
app.product.media_content

mont-04742589 (1).jpg

80.19 KB
Q Four Connect IN 80° Other resources

Other resources

Files
app.product.media_content

illu-04742585 (8).jpg

88.6 KB

illu-04742584 (9).jpg

87.29 KB

illu-04742587 (9).jpg

78.59 KB

illu-04742588 (8).jpg

83.41 KB

tec-doc-04776084 (8).pdf

1.34 MB

154200_04_DB - Q Four Connect_02-2023 (1).pdf

1.34 MB
Q Four Connect IN 80° Instructions

Instructions

Files
app.product.media_content

ins-doc-04776103 (1).pdf

323.23 KB

ins-doc-04780734.pdf

323.23 KB

1-10. quick-start-quide_for_Nimbus-Connect_luminaires.pdf

3.31 MB
