Product details

Producer:
Modular Lighting Instruments
Category:
Hanging Lamps
Collection:
Surface

Modular Lighting Instruments

https://www.supermodular.com
Facebook
Instagram
Twitter
YouTube
Pinterest
LinkedIn
Share

Product description

A playful luminaire designed by Jeffrey Huyghe, the idea of Placebo quickly became a product family. Placebo isn’t just one luminaire. Two shapes, each in 2 sizes, and all 4 offer 2 lighting possibilities.
Ball or tube, small or large, many colors. It’s a family of elements inviting you to mix and match. Placebo is a multitude of playful general lighting luminaires for residential, hospitality and small retail spaces.


  Technical Specification PLACEBO DOWN
  GI Tre DIMGI 1-10VGI DALI/pushdim
1Light source1x LED Module 6.3W1x LED Module 6.3W1x LED Module 6.3W
2GearLED gear incl.LED gear incl.LED gear incl.
3Dimmingtrailing edge dimmable1-10VDali/pushdim
4Power supply230V230V230V
5Weight0.55kg0.55 kg0.55 kg
6Distance0.1m0.1 m0.1 m
7IPIP20IP20IP20
8Glow wire test 650°650°650°
9LifetimeL80 B20 @ 50.000hrsL80 B20 @ 50.000 hrsL80 B20 @ 50.000 hrs
10CRI90 (view TM30 data)90 (view TM30 data)90 (view TM30 data)
11CIE flux code24 / 48 / 74 / 53 / 7224 / 48 / 74 / 53 / 7224 / 48 / 74 / 53 / 72
12Luminaire power9W9W9W
13Lumen608 lm625 lm625 lm
14Efficacy68 lm/W69 lm/W69 lm/W
15UGR181818

  GE
1Light source1x LED Module 6.3W
2GearLED gear not incl.
3Dimmingto be chosen with gear
4Power supply350mA / 230V
5Cut-out sizeø 54 h 35
6Weight0.32 kg
7Distance0.1m
8IPIP20
9Glow wire test 650°
10LifetimeL80 B20 @ 50.000hrs
11CRI90 (view TM30 data
12CIE flux code24 / 48 / 74 / 53 / 72
13Lumen625 lm
14Efficacy99 lm/W
15UGR18

Remark! Must be combined with glass tube or glass ball (not included). Lumen output depends on choice of glass accessory.


  Technical Specification PLACEBO UP
  GI Tre DIMGI 1-10VGI DALI/pushdim
1Light source1x LED Module 6.3W1x LED Module 6.3W1x LED Module 6.3W
2GearLED gear incl.LED gear incl.LED gear incl.
3Dimmingtrailing edge dimmable1-10VDali/pushdim
4Power supply230V230V230V
5Weight0.55 kg0.55 kg0.55 kg
6Distance0.1 m0.1 m0.1 m
7IPIP20IP20IP20
8Glow wire test650°650°650°
9LifetimeL80 B20 @ 50.000 hrsL80 B20 @ 50.000 hrsL80 B20 @ 50.000 hrs
10CRI90 (view TM30 data)90 (view TM30 data)90 (view TM30 data)
11CIE flux code18 / 44 / 71 / 47 / 7218 / 44 / 71 / 47 / 7218 / 44 / 71 / 47 / 72
12Luminaire power9W9W9W
13Lumen625 lm625 lm625 lm
14Efficacy69 lm/W69 lm/W69 lm/W
15UGR171717

  GE
1Light source1x LED Module 6.3W
2GearLED gear not incl.
3Dimmingto be chosen with gear
4Power supply350mA / 230V
5Cut-out sizeø 54 h 35
6Weight0.32 kg
7Distance0.1m
8IPIP20
9Glow wire test 650°
10LifetimeL80 B20 @ 50.000hrs
11CRI90 (view TM30 data
12CIE flux code18 / 44 / 71 / 47 / 72
13Lumen608 lm
14Efficacy97 lm/W
15UGR17

Remark! Must be combined with glass tube or glass ball (not included). Lumen output depends on choice of glass accessory.



BIM/CAD

SketchUp 3D

.skp
Files
app.noun.author
app.product.media_content

SKP_126210XX-12624038_PLACEBO-GI-DOWN-GLASS-TUBE-46_01.skp

532.2 KB
Modular Lighting Instruments
app.product.media_nopreview

SKP_126210XX-12624238_PLACEBO-GI-DOWN-GLASS-TUBE-130_01.skp

530.79 KB
Modular Lighting Instruments
app.product.media_nopreview

SKP_126210XX-12626038_PLACEBO-GI-DOWN-BALL-90_01.skp

545.9 KB
Modular Lighting Instruments
app.product.media_nopreview

SKP_126210XX-12626238_PLACEBO-GI-DOWN-BALL-155_01.skp

565.82 KB
Modular Lighting Instruments
app.product.media_nopreview

SKP_126220XX-12623038_PLACEBO-GE-UP-GLASS-TUBE-46_01.skp

1.38 MB
Modular Lighting Instruments
app.product.media_nopreview

SKP_126220XX-12623238_PLACEBO-GE-UP-GLASS-TUBE-130_01.skp

1.38 MB
Modular Lighting Instruments
app.product.media_nopreview

SKP_126220XX-12625038_PLACEBO-GE-UP-BALL-90_01.skp

1.44 MB
Modular Lighting Instruments
app.product.media_nopreview

SKP_126220XX-12625238_PLACEBO-GE-UP-BALL-155_01.skp

1.47 MB
Modular Lighting Instruments
app.product.media_nopreview

3Ds Max

.3ds
Files
app.noun.author
app.product.media_content

3DS_126210XX-12624038_PLACEBO-GI-DOWN-GLASS-TUBE-46_01.3ds

220.38 KB
Modular Lighting Instruments

3DS_126210XX-12624238_PLACEBO-GI-DOWN-GLASS-TUBE-130_01.3ds

220.42 KB
Modular Lighting Instruments

3DS_126210XX-12626038_PLACEBO-GI-DOWN-BALL-90_01.3ds

225.35 KB
Modular Lighting Instruments

3DS_126210XX-12626238_PLACEBO-GI-DOWN-BALL-155_01.3ds

235.36 KB
Modular Lighting Instruments

3DS_126220XX-12623038_PLACEBO-GE-UP-GLASS-TUBE-46_01.3ds

838.82 KB
Modular Lighting Instruments

3DS_126220XX-12623238_PLACEBO-GE-UP-GLASS-TUBE-130_01.3ds

838.56 KB
Modular Lighting Instruments

3DS_126220XX-12625038_PLACEBO-GE-UP-BALL-90_01.3ds

868.19 KB
Modular Lighting Instruments

3DS_126220XX-12625238_PLACEBO-GE-UP-BALL-155_01.3ds

878.53 KB
Modular Lighting Instruments

Autocad

.dwg
Files
app.noun.author
app.product.media_content

CAD3D_126210XX-12624038_PLACEBO-GI-DOWN-GLASS-TUBE-46_01.dwg

569.09 KB
Modular Lighting Instruments
app.product.media_nopreview

CAD3D_126210XX-12624238_PLACEBO-GI-DOWN-GLASS-TUBE-130_01.dwg

569.16 KB
Modular Lighting Instruments
app.product.media_nopreview

CAD3D_126210XX-12626038_PLACEBO-GI-DOWN-BALL-90_01.dwg

586.11 KB
Modular Lighting Instruments
app.product.media_nopreview

CAD3D_126210XX-12626238_PLACEBO-GI-DOWN-BALL-155_01.dwg

564.5 KB
Modular Lighting Instruments
app.product.media_nopreview

CAD3D_126220XX-12623038_PLACEBO-GE-UP-GLASS-TUBE-46_01.dwg

806.55 KB
Modular Lighting Instruments
app.product.media_nopreview

CAD3D_126220XX-12623238_PLACEBO-GE-UP-GLASS-TUBE-130_01.dwg

806.96 KB
Modular Lighting Instruments
app.product.media_nopreview

CAD3D_126220XX-12625038_PLACEBO-GE-UP-BALL-90_01.dwg

796.77 KB
Modular Lighting Instruments
app.product.media_nopreview

CAD3D_126220XX-12625238_PLACEBO-GE-UP-BALL-155_01.dwg

796.7 KB
Modular Lighting Instruments
app.product.media_nopreview

Placebo down LED 2700K Tre dim GI black struc_12621032.dwg

320.72 KB
Modular Lighting Instruments
app.product.media_nopreview

Placebo up LED 3000K GE white struc_12622209.dwg

320.72 KB
Modular Lighting Instruments
app.product.media_nopreview

FBX

.fbx
Files
app.noun.author
app.product.media_content

FBX_126210XX-12624038_PLACEBO-GI-DOWN-GLASS-TUBE-46_01.fbx

474.08 KB
Modular Lighting Instruments
app.product.media_nopreview

FBX_126210XX-12624238_PLACEBO-GI-DOWN-GLASS-TUBE-130_01.fbx

477.36 KB
Modular Lighting Instruments
app.product.media_nopreview

FBX_126210XX-12626038_PLACEBO-GI-DOWN-BALL-90_01.fbx

446.06 KB
Modular Lighting Instruments
app.product.media_nopreview

FBX_126210XX-12626238_PLACEBO-GI-DOWN-BALL-155_01.fbx

460.38 KB
Modular Lighting Instruments
app.product.media_nopreview

FBX_126220XX-12623038_PLACEBO-GE-UP-GLASS-TUBE-46_01.fbx

1.65 MB
Modular Lighting Instruments
app.product.media_nopreview

FBX_126220XX-12623238_PLACEBO-GE-UP-GLASS-TUBE-130_01.fbx

1.65 MB
Modular Lighting Instruments
app.product.media_nopreview

FBX_126220XX-12625038_PLACEBO-GE-UP-BALL-90_01.fbx

1.66 MB
Modular Lighting Instruments
app.product.media_nopreview

FBX_126220XX-12625238_PLACEBO-GE-UP-BALL-155_01.fbx

1.68 MB
Modular Lighting Instruments
app.product.media_nopreview

Object file 3D

.obj
Files
app.noun.author
app.product.media_content

OBJ_126210XX-12624038_PLACEBO-GI-DOWN-GLASS-TUBE-46_01.obj

325.56 KB
Modular Lighting Instruments

OBJ_126210XX-12624238_PLACEBO-GI-DOWN-GLASS-TUBE-130_01.obj

326.98 KB
Modular Lighting Instruments

OBJ_126210XX-12626038_PLACEBO-GI-DOWN-BALL-90_01.obj

312.25 KB
Modular Lighting Instruments

OBJ_126210XX-12626238_PLACEBO-GI-DOWN-BALL-155_01.obj

323.86 KB
Modular Lighting Instruments

OBJ_126220XX-12623038_PLACEBO-GE-UP-GLASS-TUBE-46_01.obj

1007.06 KB
Modular Lighting Instruments

OBJ_126220XX-12623238_PLACEBO-GE-UP-GLASS-TUBE-130_01.obj

1006.24 KB
Modular Lighting Instruments

OBJ_126220XX-12625038_PLACEBO-GE-UP-BALL-90_01.obj

1021.17 KB
Modular Lighting Instruments

OBJ_126220XX-12625238_PLACEBO-GE-UP-BALL-155_01.obj

1.01 MB
Modular Lighting Instruments

Materials

All resources below have been provided by the manufacturer. If you are interested in details or additional information, which you have not found in the service, please contact the manufacturer.

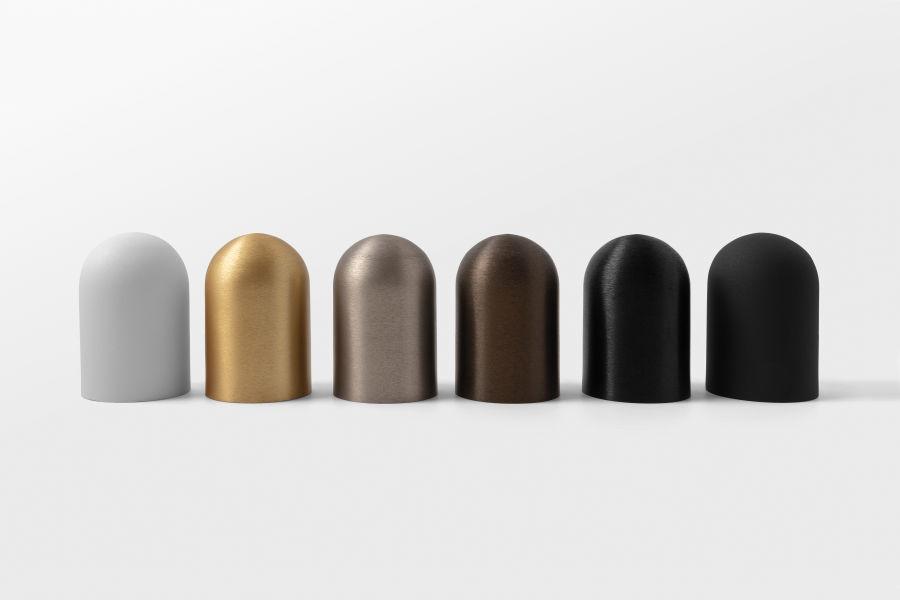

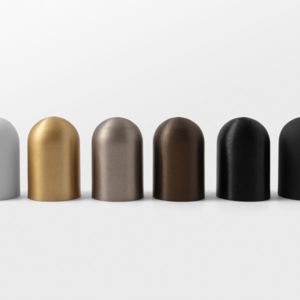

PLACEBO-COLOURSPlacebo down/up PLACEBO-COLOURS
Placebo down/up PLACEBO-COLOURS

PLACEBO-COLOURS

900×600 px / 22.06 KB

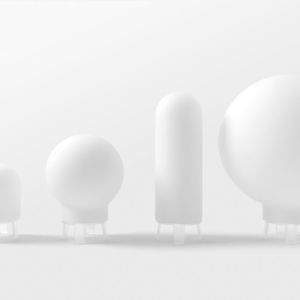

Placebo down/up PLACEBO-SHAPES

PLACEBO-SHAPES

900×600 px / 13.18 KB

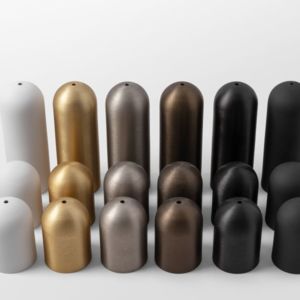

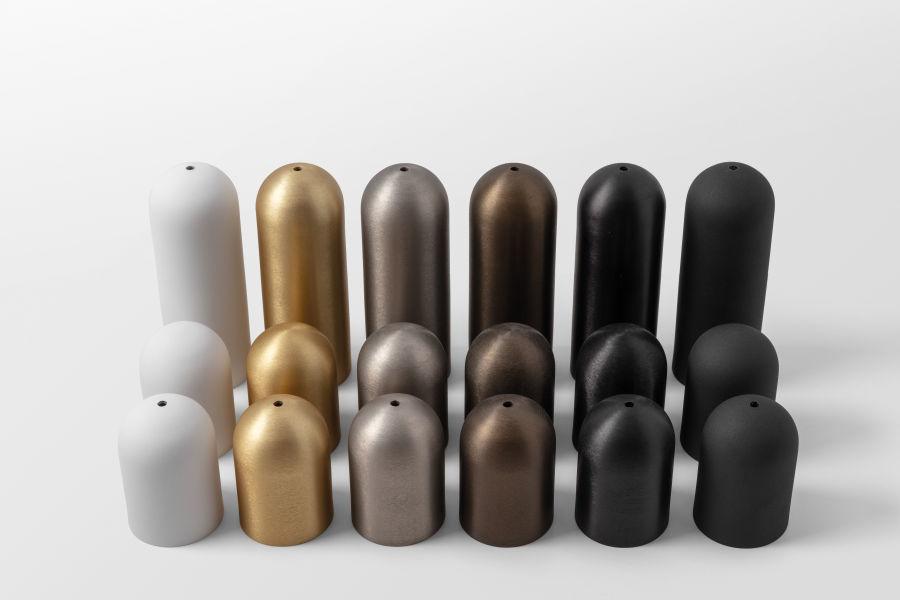

Placebo down/up PLACEBO-COMPONENTS

PLACEBO-COMPONENTS

900×600 px / 38.79 KB

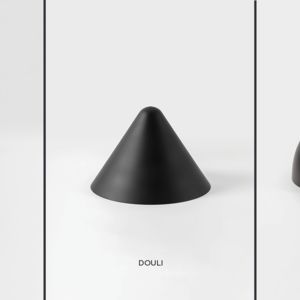

Placebo down/up PRODUCT-HERO-MASTER-3X-PLACEBO-2
