Stay flap fitting, Häfele Free space 6.15

Hingeless one-piece flap fitting - Free Space 6.15

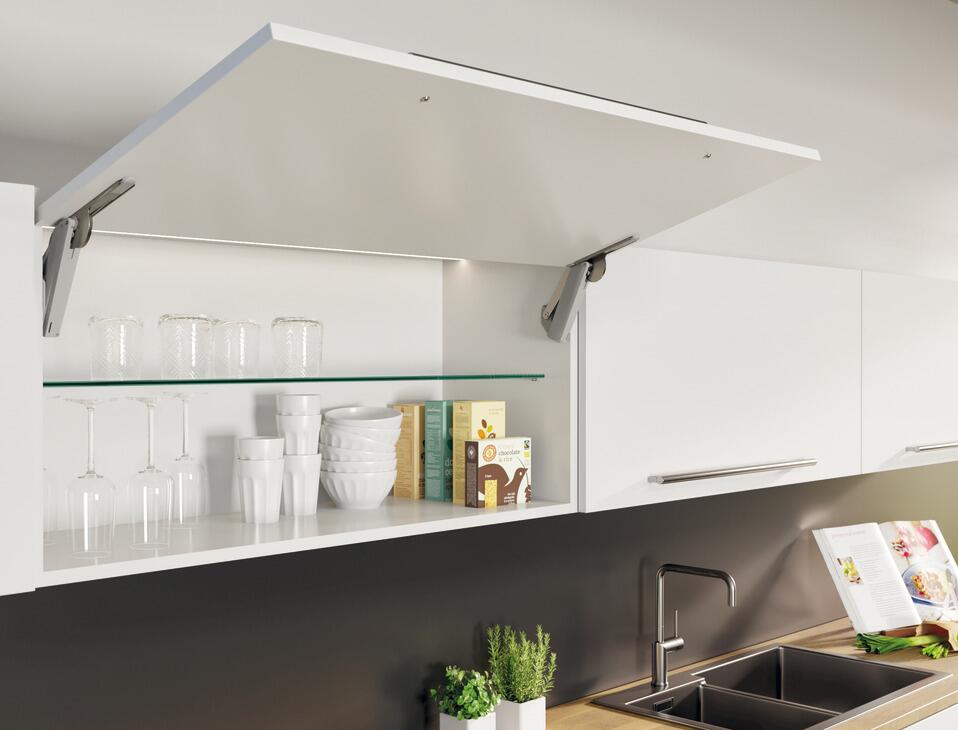

Area of application: For heavy stay flap applications up to 15 kg (with cabinet height 600 mm)

> For flaps made from wood or with aluminum frame

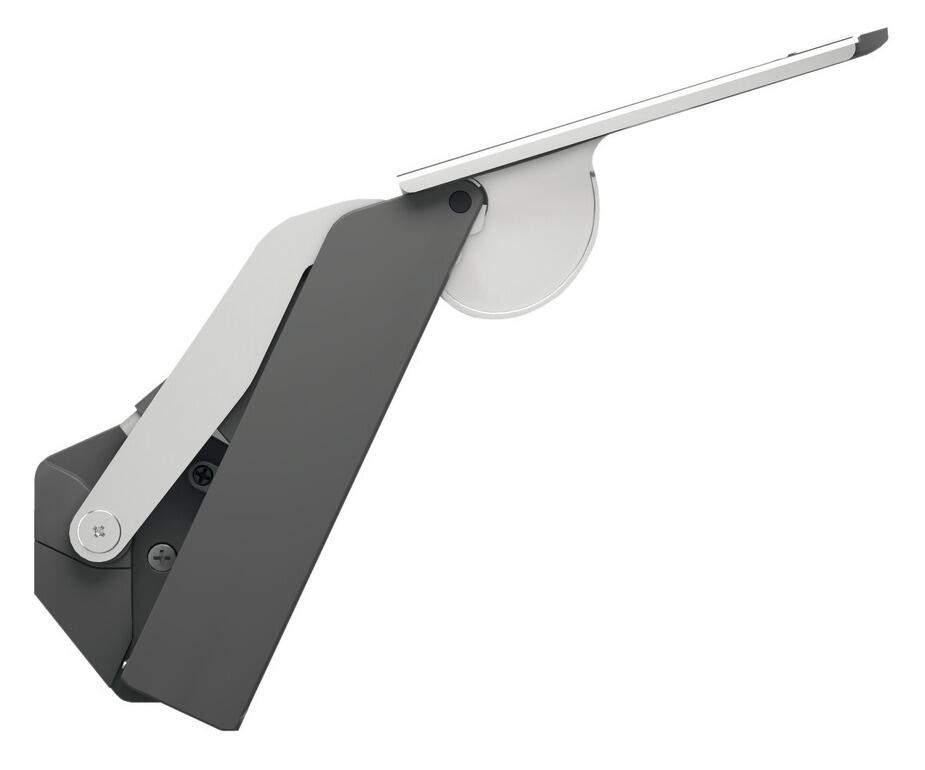

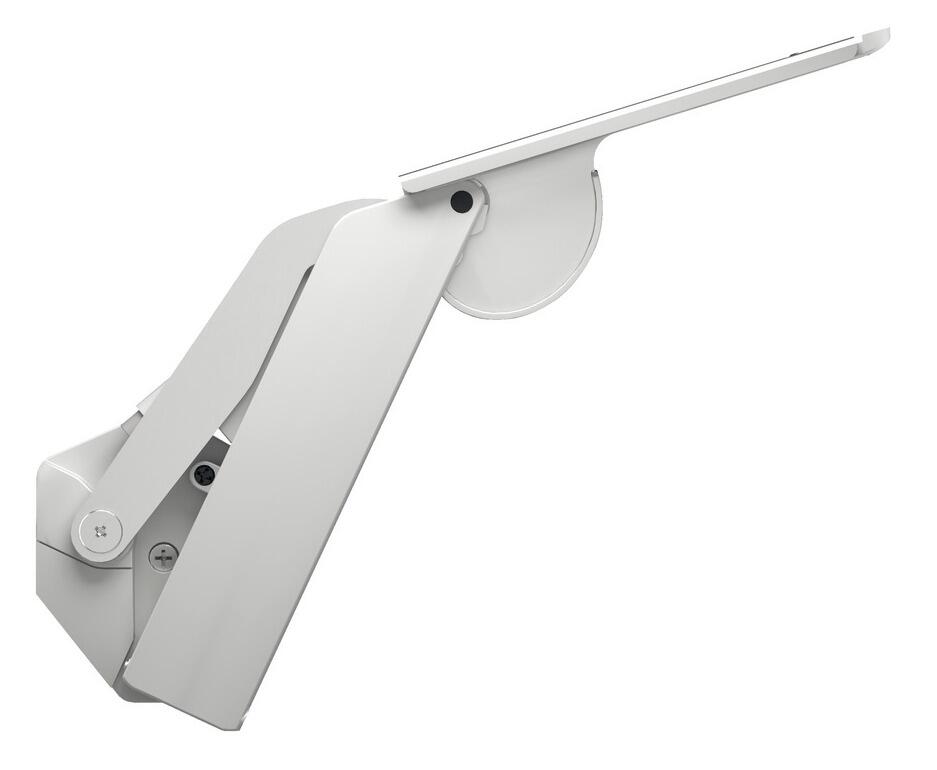

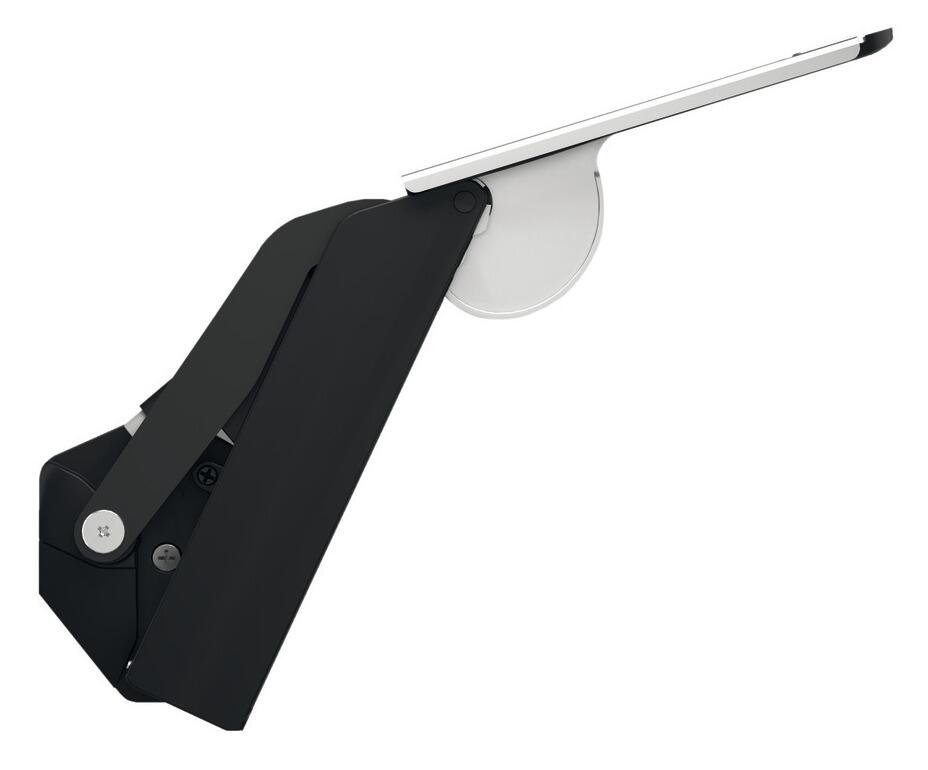

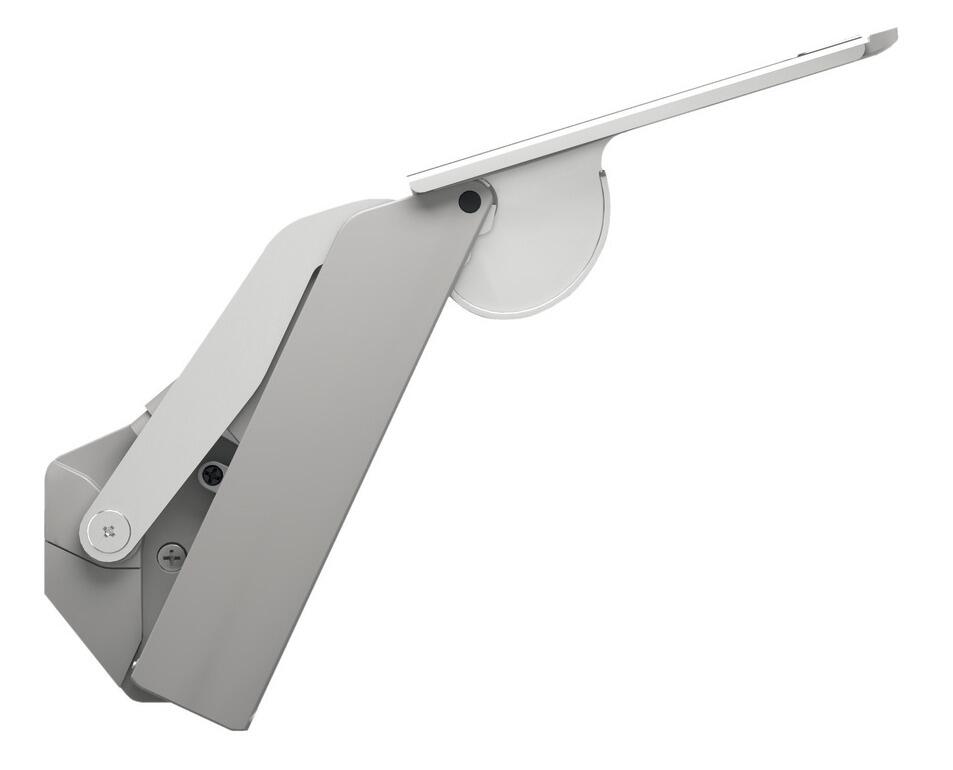

> Four standard colours (White / light grey /anthracite / black)

> Extremely compact: modern design and Hafele engineered technologyallows more space inside the cabinet

> Highly compact: a minimal footprint provides more storage space infurniture

> Gentle running characteristics for easy operation

> Fast simple installation: plugs into standard 32/37 mm line holes andfastens with pre-mounted euro screw

> Flap angle adjustment: 90° or 107° with integrated stop

> Adjustment facility: Height, side, tilting angle, holding power releasedistance on push catch

> Installation: Fitting for screw fixing with pre-mounted Euro screw, frontpanel fixing without tools, for sliding onto pre-mounted fixing screw

> Installation video: https://www.youtube.com/watch?v=U5joIbTpDqE

Supplied with :

- 1 stay flap fitting set (1 fitting each left/right),

- 2 front fixing brackets with pre-mounted screws,

- 1 set of installation instructions with paper drilling template for side panel

Order reference

The model selection of the stay flap fitting for front panels without handle depends on the cabinet height and flap weight. Model selection see sample measurements table. Additional hinges and cover caps are not required. Please order suitable screw set 372.27.600 for aluminium frame front panels from frame width 45 mm. We recommend to use the stronger fitting model when in doubt.
