Hingeless one-piece flap fitting - Free Space 1.8 Push

Hingeless one-piece flap fitting - Free Space 1.8 Push

The smallest stay flap fitting on the market!

5 force variants depending on the weight and size of the flap: B / C / D / E / F (see: data sheet)

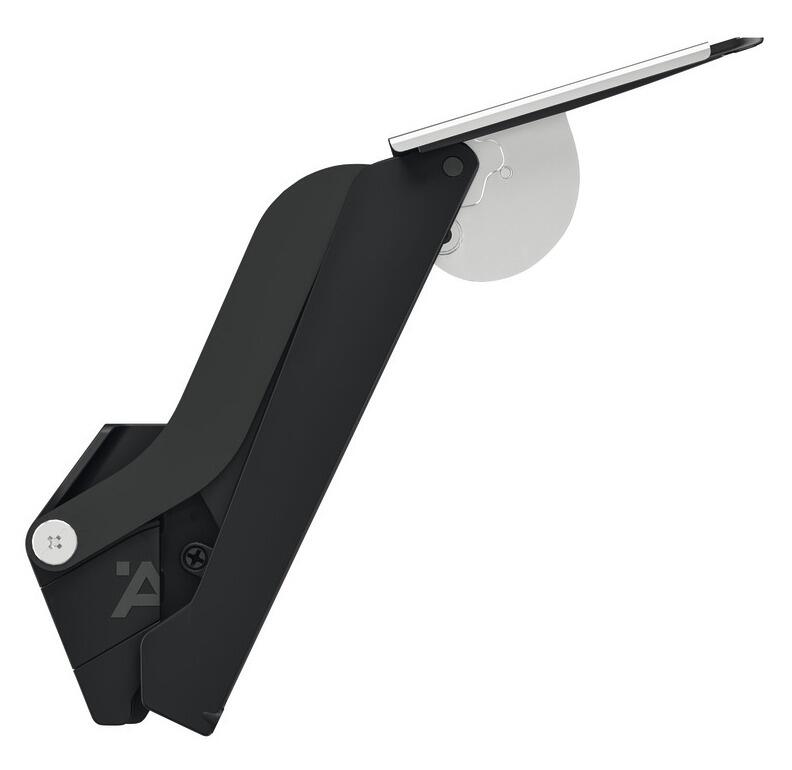

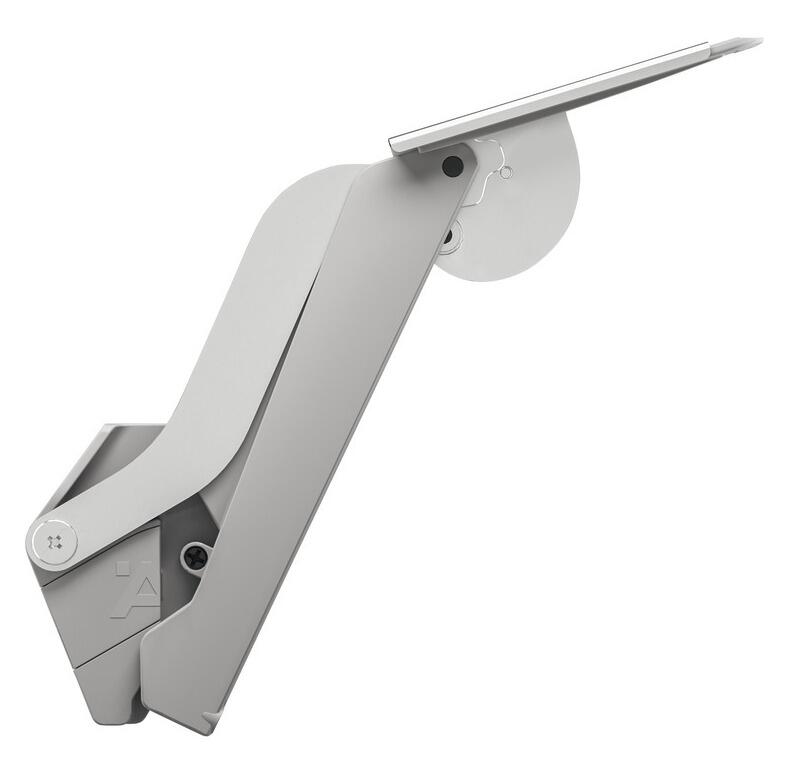

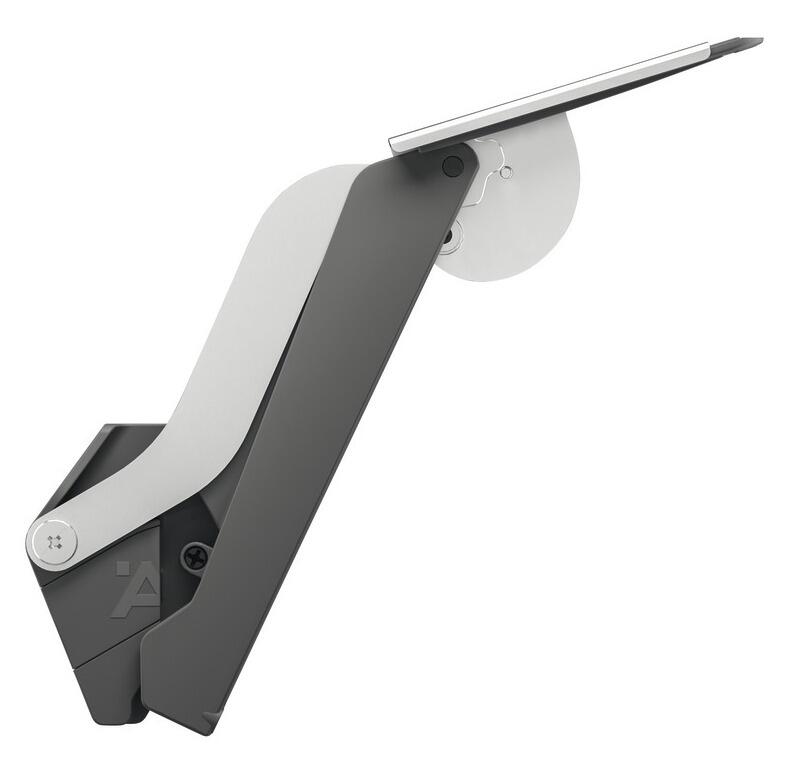

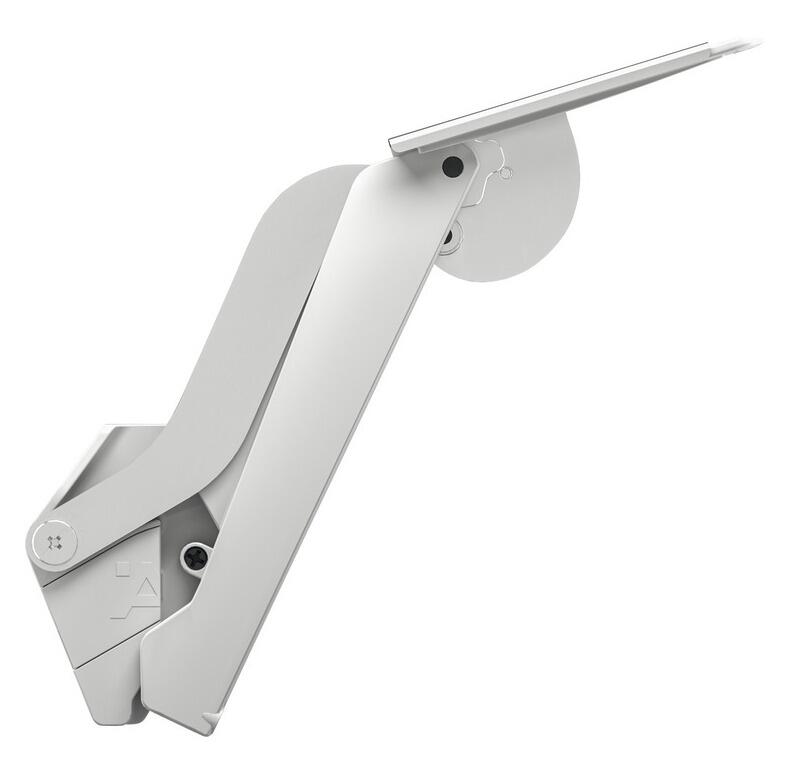

4 colour variants: white / light grey / anthracite / black

Quick assembly with template for cabinet and front.

Minimalist design: lift only 63 mm deep into the cabinet; more storage space.

Fully 4D adjustment: right/left, up/down, flap tilt and force adjustment (flap stays in place, does not fall)

Load capacity: up to 8.3 kg at 400 mm flap height

Flap angle adjustment: 90° or 107°

Area of application

For standard stay flap applications with front height up to 650 mm (Push-To-Open).

For cabinet width ≤1,800 mm

For cabinet height 225 – 650 mm

Installation depth 63,00 mm

For lid height 650 mm

Installation Fitting for screw fixing with pre-mounted Euro screws, front panel without tools, for sliding onto pre-mounted fixing screws.

Montage video: https://www.youtube.com/watch?v=OZ6Da-r980A

Order reference

The model selection of the stay flap fitting depends on the cabinet height and flap weight including hands. Model selection see sample measurements table. Please order suitable screw set 372.27.600 for aluminium frame front panels from frame width 45 mm. We recommend to use the stronger fitting model when in doubt.

Supplied with :

- 1 stay flap fitting set (1 piece each left/right)

- 2 front fixing brackets with pre-mounted screws

- 1 free push catch 1 set of installation instructions with paper drilling template for side panel
