INOVGREEN IR35
Product details
- Producer:
- TPP Thermoplastics Polska Sp. z o.o.
- Product code:
- 5908035400084
- Category:
- Lawn grille
- Collection:
- GROUND REINFORCEMENT SYSTEMS
TPP Thermoplastics Polska Sp. z o.o.
Share
Product description

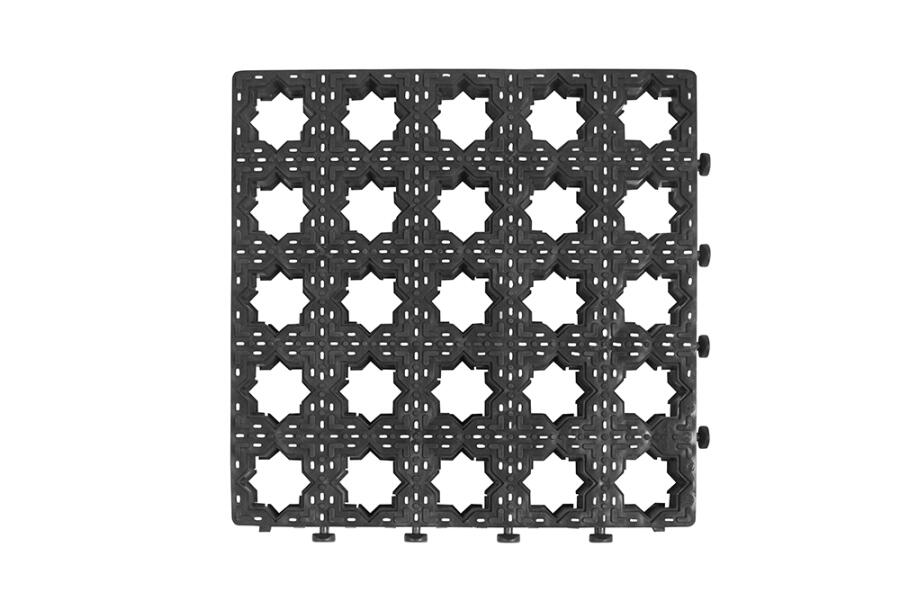

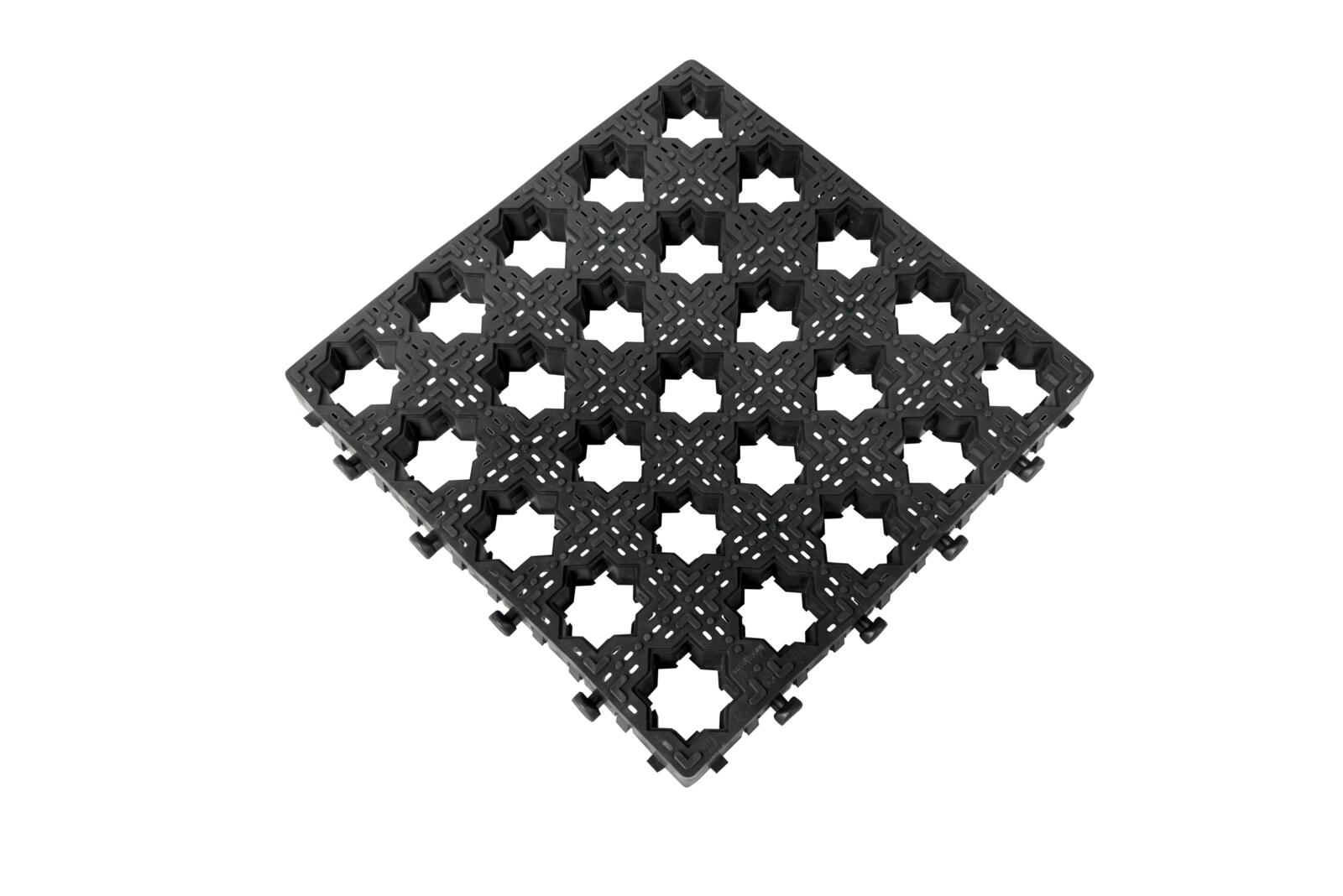

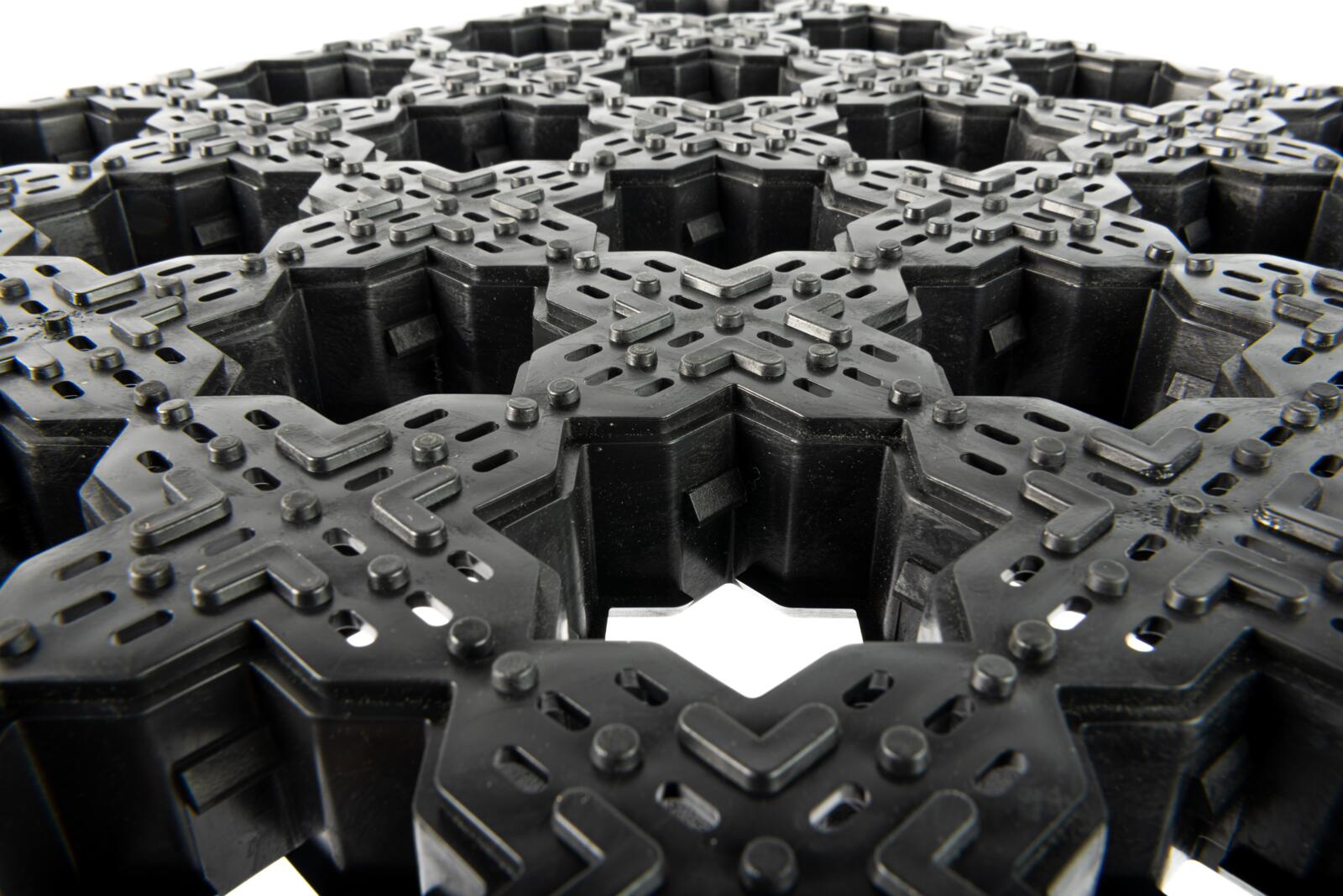

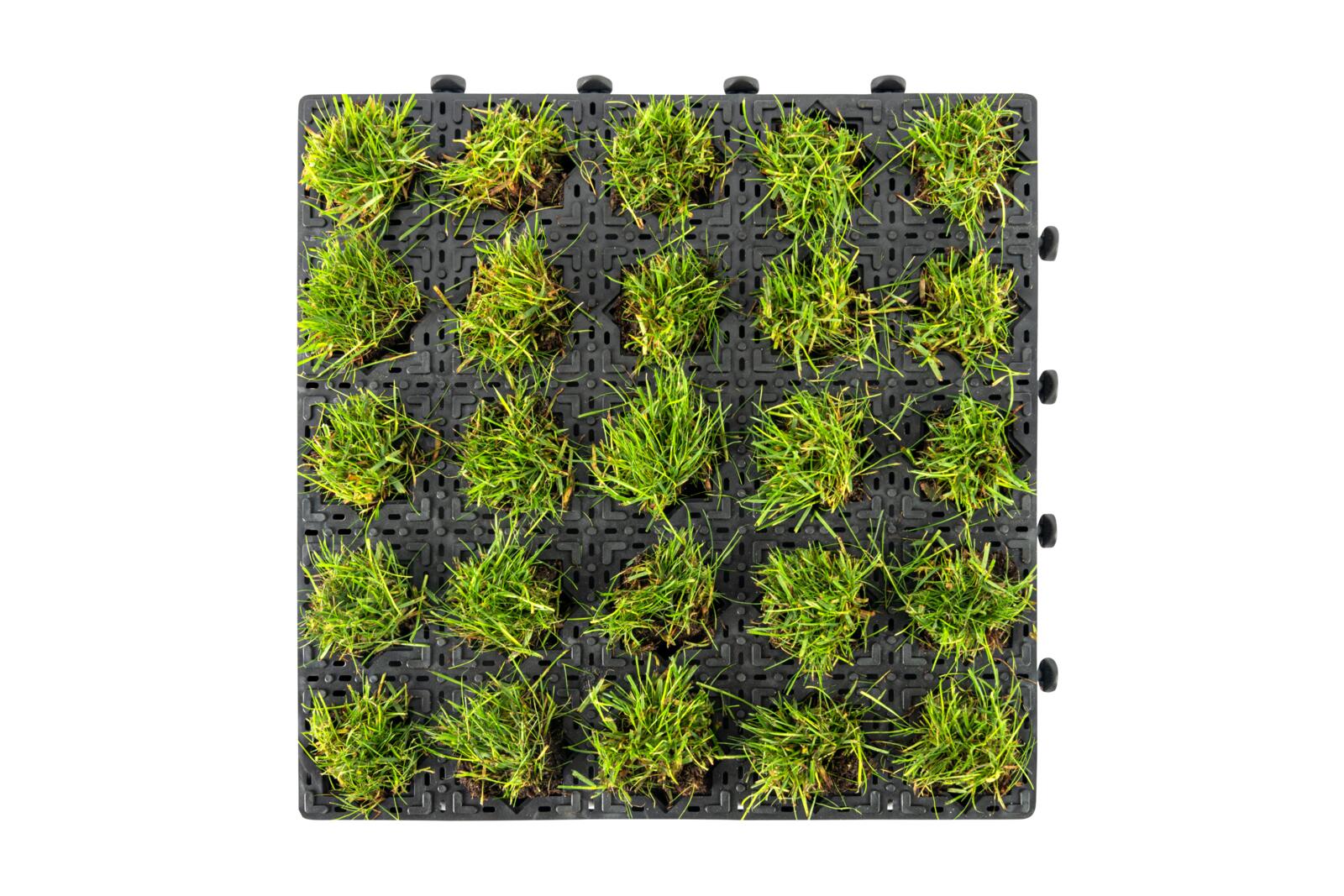

INOVGREEN IR35
- DIMENSIONS OF THE GRID
39 cm x 39 cm x 3,5 cm - WEIGHT OF THE GRID
1,08 kg = 7,16 kg/m² - GEOMETRIC MODEL
5 x 5 meshes - BIOLOGICALLY ACTIVE SURFACE
50% - RESISTANCE TO TEMPERATURE
from -30⁰C to +80⁰C - STRENGTH ON PRESSURE
up to 1000 t/m²

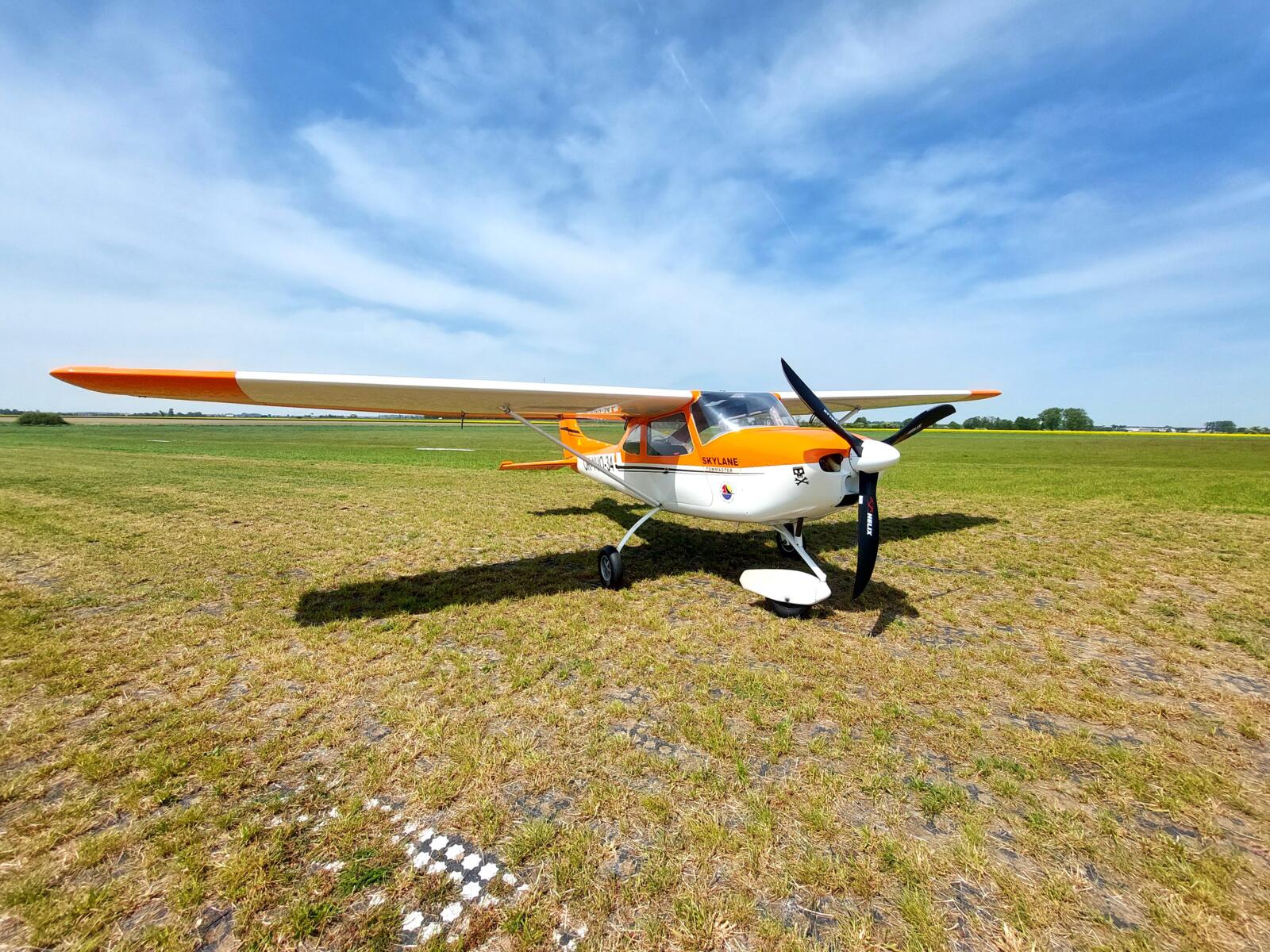

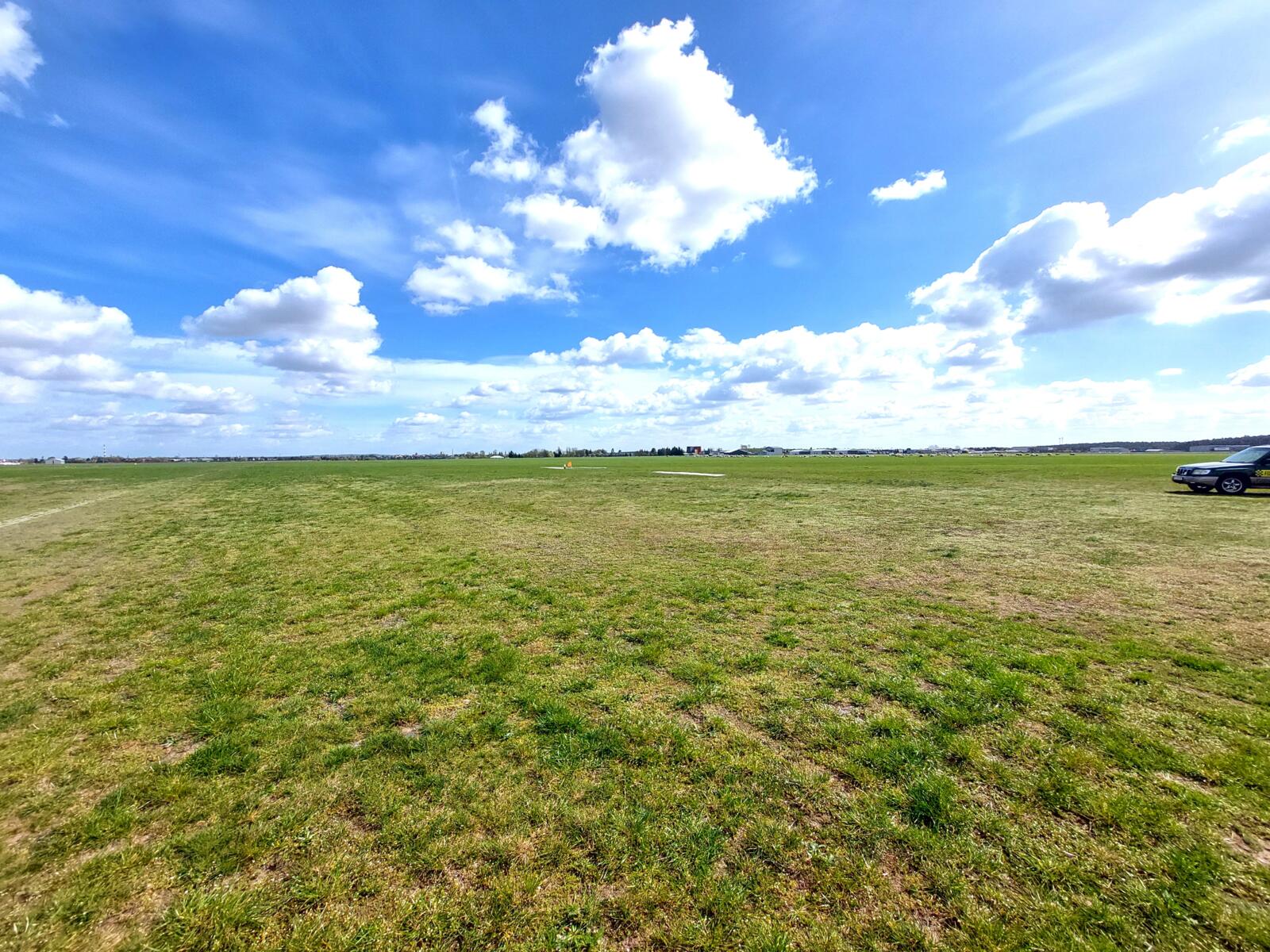

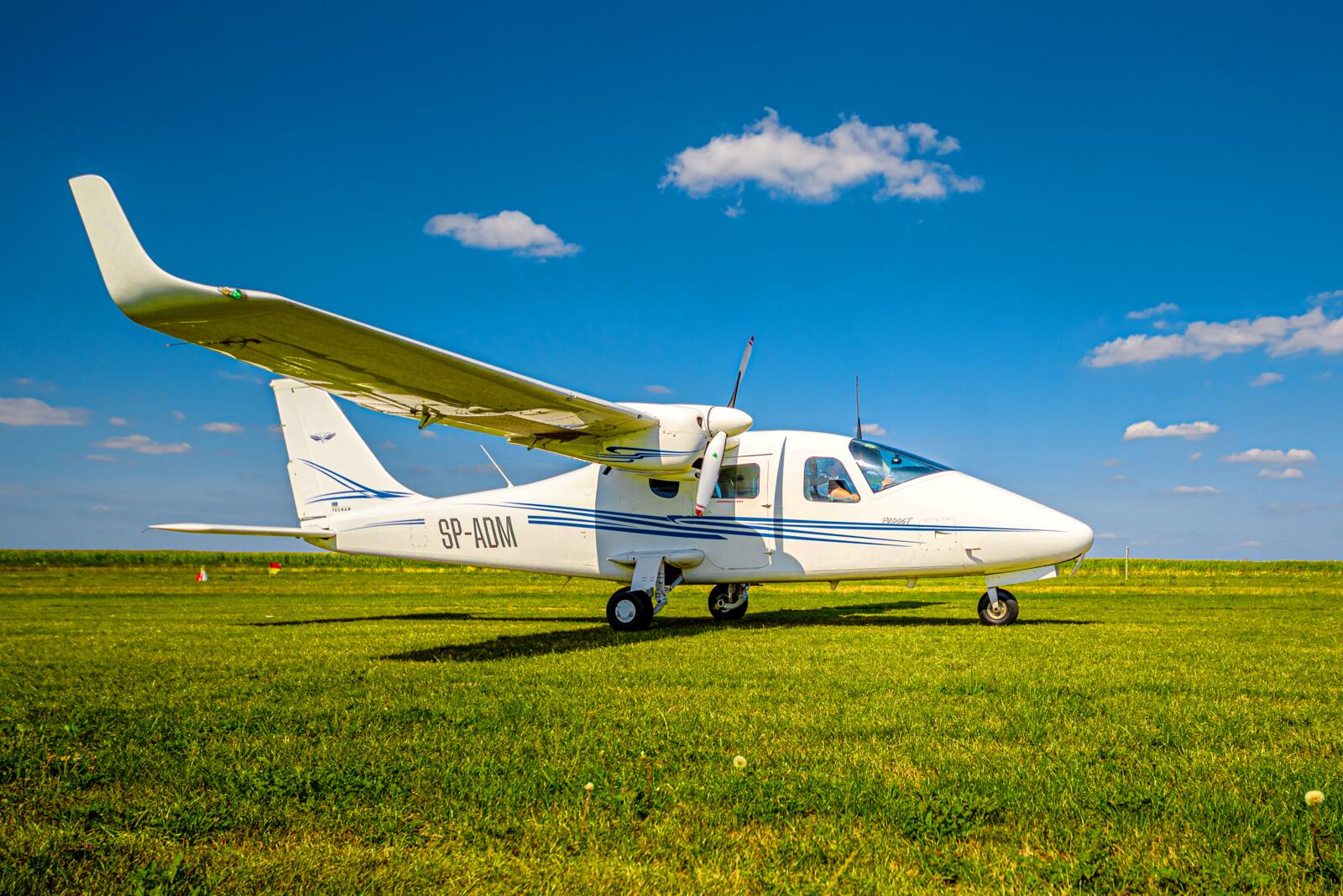

The Inovgreen IR35 airport grid is a product dedicated to curing grassy airport surfaces such as runways, taxiways, helipads and more. The Inovgreen IR35 airport grid has been designed with aviation enthusiasts in mind, who, while maintaining the aesthetic qualities of grass airstrips, want to improve the quality of take-offs and landings on grass. By using the IR35 airport ecogrid, an even and stable substrate is obtained, which eliminates ruts and improves grip during landing, while reducing the braking distance. The product is designed to be pressed into the ground.
Inovgreen PPM IR35 and PPM IR35+ parking markers are available for the grid.
PACKING
1 layer: 6 pieces = 0,9075 m²
low pallet: 59 layers
dimensions: 120 cm x 80 cm, height 220 cm
number of metres per pallet: 53,54 m²
high pallet: 70 layers
dimensions: 120 cm x 80 cm, height 260 cm
number of metres on the pallet: 63,53 m²
Series description
GROUND REINFORCEMENT SYSTEMS
High quality has been our priority for years. We have been producing lawn and car park grids since 2005, continually ensuring that our products are of the highest quality.
TPP THERMOPLASTICS POLAND SP. Z O. O. offers you an effective, simple and ecological ground reinforcement system INOVGREEN. We have been producing lawn-parking grids since 2005, continuously taking care of the highest quality of our products.
The company has an ISO 9001:2015 quality management system (QMS) and meets the standards published by the International Organisation for Standardisation ISO.
DURABILITY

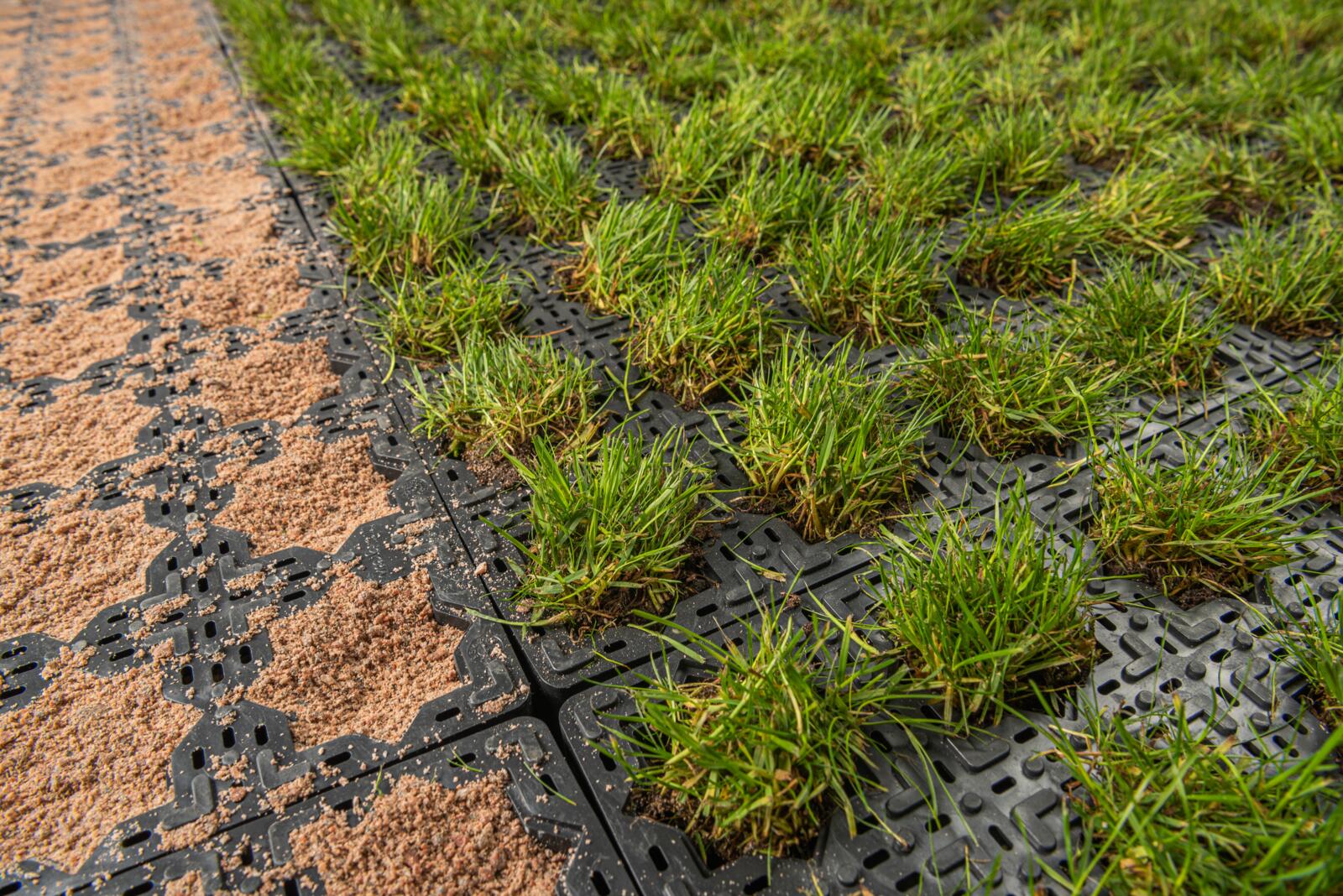

INOVGREEN grids are characterised by their exceptional load resistance. When filled with aggregate, gravel, earth or other similar material, they have a laboratory-confirmed strength of up to 1,000 tonnes/m2.
ECOLOGY

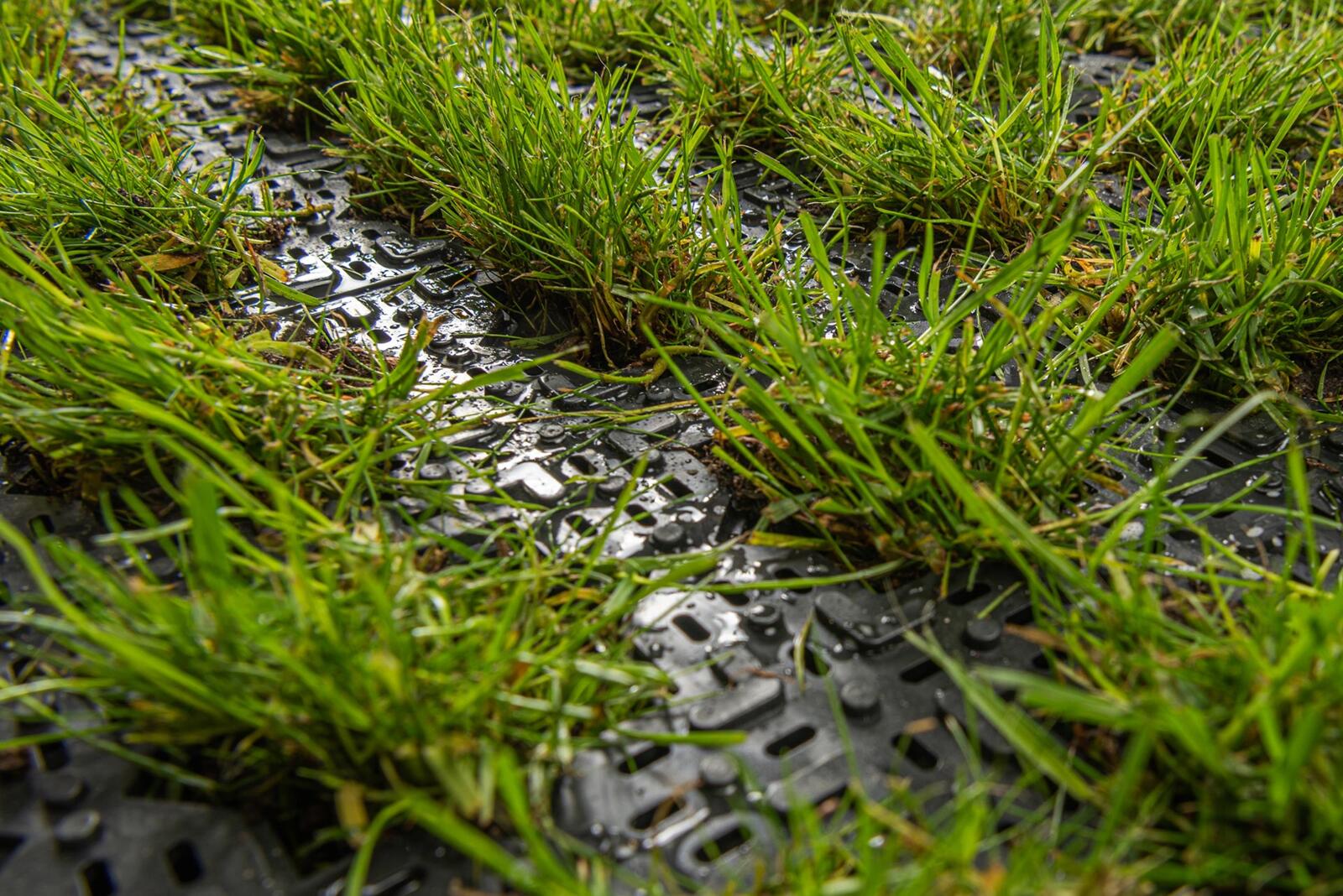

The INOVGREEN ground reinforcement system is perfectly in line with contemporary trends of pro-ecological land development. INOVGREEN grids are completely neutral for the environment, and surfaces lined with them are suitable for greening.
EASE OF INSTALLATION
The low weight of INOVGREEN products makes it easy to transport and lay the parking and grass grids. Assembly is simple and quick, the grids are connected by hooks. Easy machining with a circular saw or angle cutter is possible. This allows for efficient and effective landscaping.
WATER PERMEABILITY
The surface lined with INOVGREEN grids guarantees excellent infiltration of rainwater and snowmelt into the ground. The surface lined with grids does not need to be channelled, which significantly reduces investment and subsequent operating costs.
SUSTAINABLE DEVELOPMENT
In order to meet current social expectations regarding the environment and the functioning of companies, TPP Thermoplastics Polska is taking action in the field of sustainable development. The main assumptions behind the actions taken concern various areas of social and environmental responsibility and corporate governance principles.
- Environment
In the area of the environment, we aim to reduce energy consumption and use renewable energy sources. By processing 100% recycled plastics, we reduce the use of new raw materials and promote a closed loop economy.
- Social responsibility
In terms of social responsibility in the workplace, we are committed to creating a safe and hygienic working environment and providing equal working opportunities for men and women under decent conditions. The company is also committed to supporting local community initiatives.
- Corporate governance
Transparency, ensuring clear terms of business and transparent procedures is a priority for us. Compliance with regulations and ethical principles are high standards for our business and are reflected in our ISO 9000:2015 certification.
The combination of these areas creates a coherent sustainability strategy that both protects the environment and promotes the well-being of the local community and ensures responsible and transparent management within the company.
BIM/CAD
SketchUp 3D
.skpINOVGREEN IR35.skp
14.6 MBAutocad
.dwgINOVGREEN IR35.dwg
5.16 MBFBX
.fbxINOVGREEN IR35.fbx
6.36 MBSTEP 3D file
.stepINOVGREEN IR35.step
16.11 MBAdditional Resources
Other resources
DWU_kratki_lotniskowo_parkingowej_Inovgreen_IR35_2025.pdf
188.96 KBRaport_z_badan_ITB_kratki_lotniskowo_parkingowej_Inovgreen_IR35.pdf
1.44 MBSpecyfikacja_techniczna_kratki_lotniskowo_parkingowej_Inovgreen_IR35.pdf
8.16 MBTechnical_specification_of_the_airport_and_lawn_grid_Inovgreen_IR35.pdf
1.2 MBReport_of_ITB_tests_of_the_airport_and_lawn_grid_Inovgreen_IR35.pdf
1.26 MB
