FREZJA 3

Product details

Producer:
ERKADO sp. z o.o.
Category:
Internal Doors
Collection:
Frame doors
Visit the product page
https://erkado.pl/
Facebook
Instagram
YouTube
Pinterest
LinkedIn
Share

Product description

Frame doors FREZJA 3

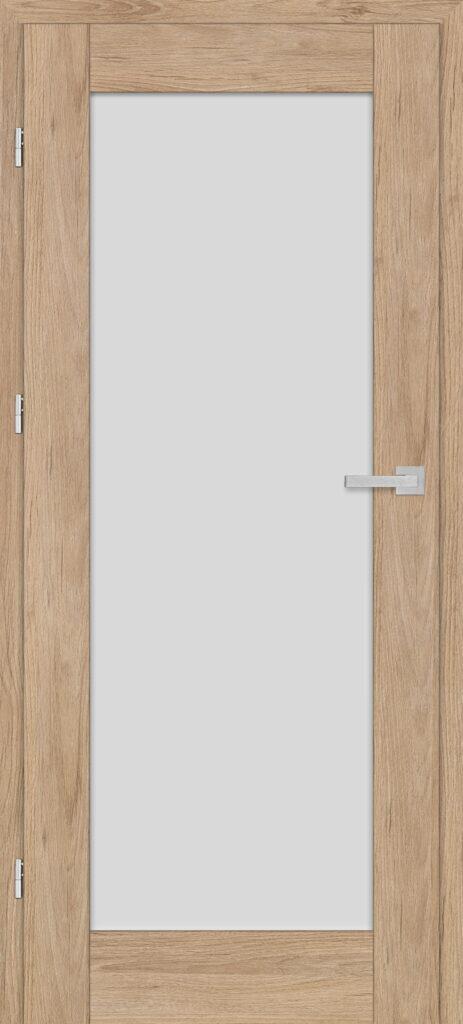

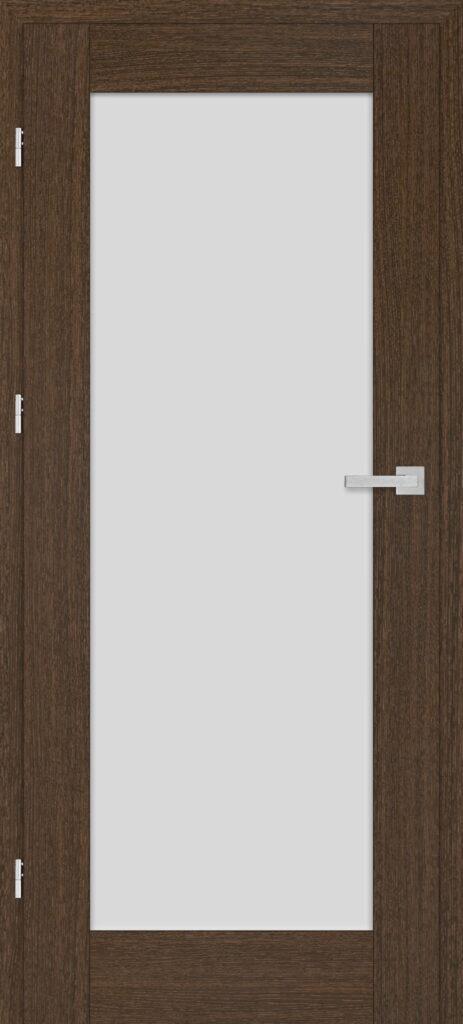

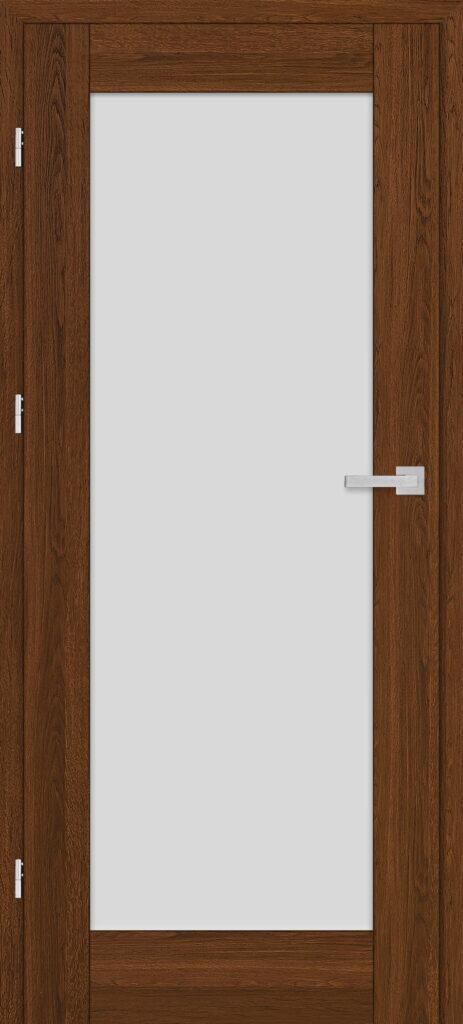

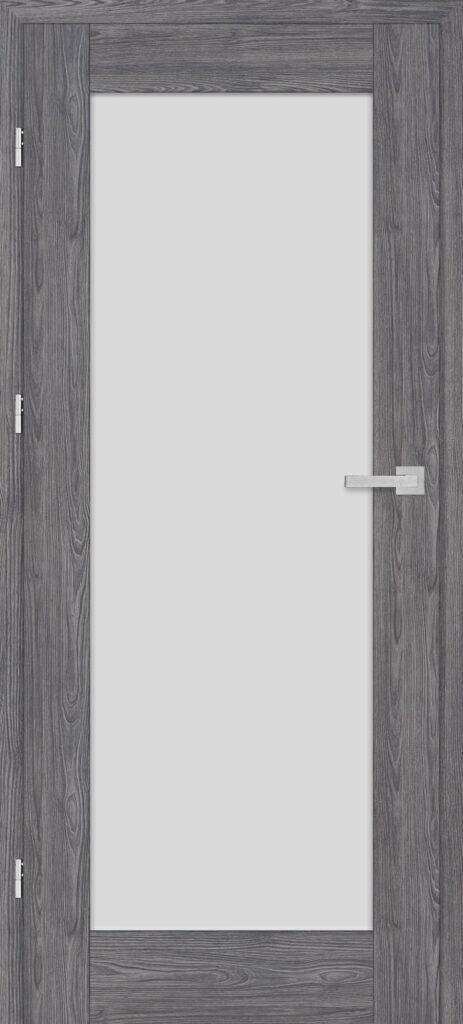

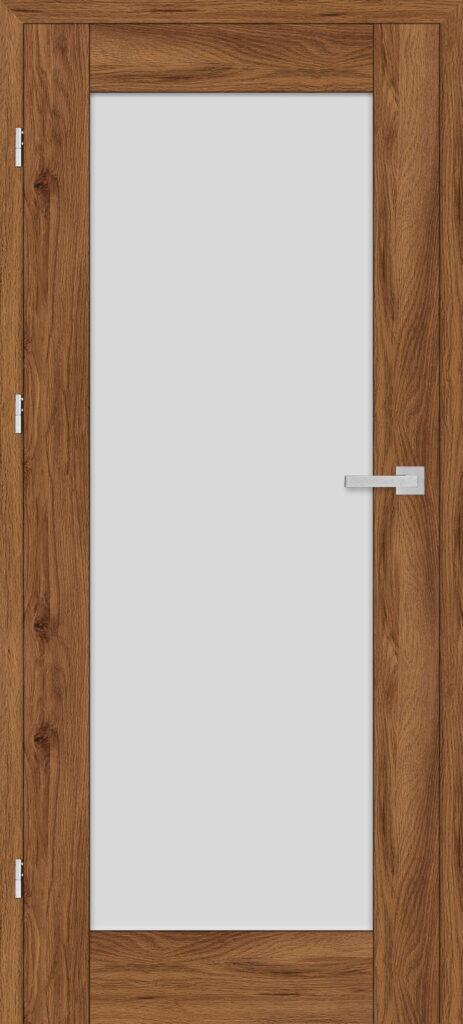

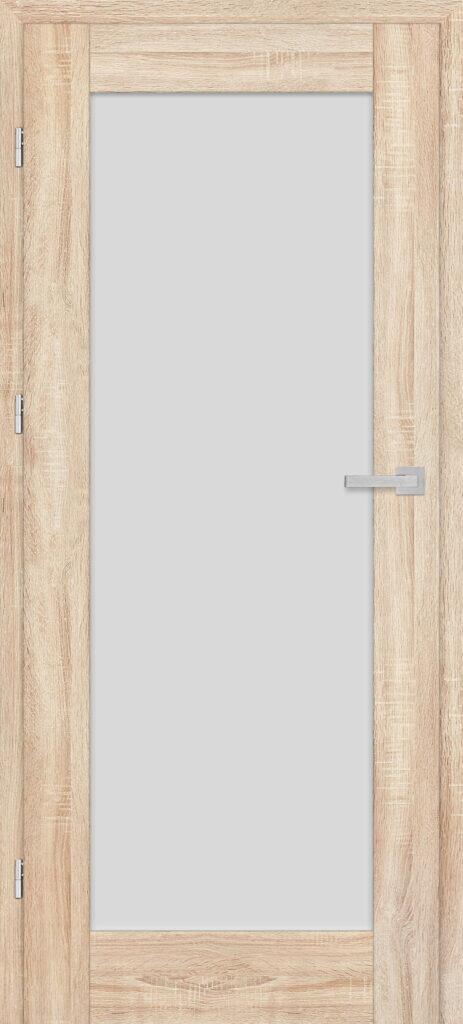

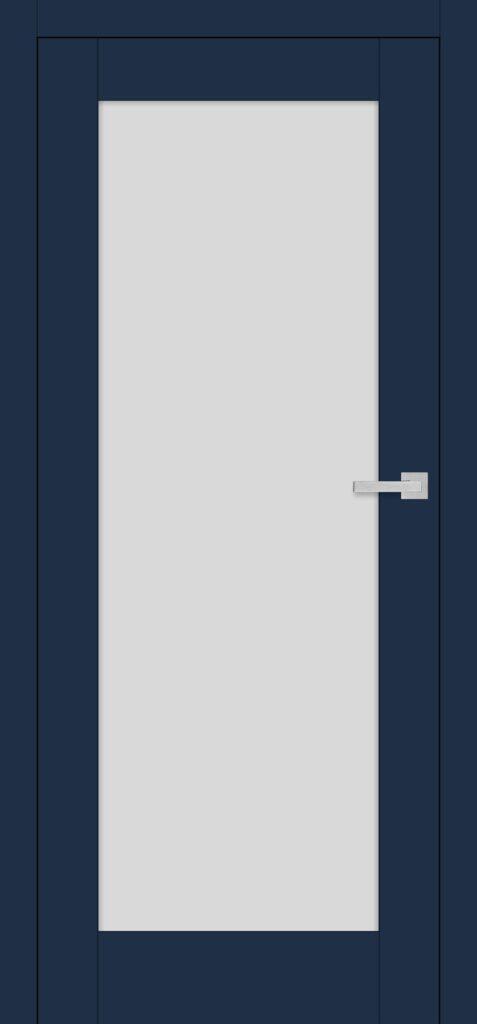

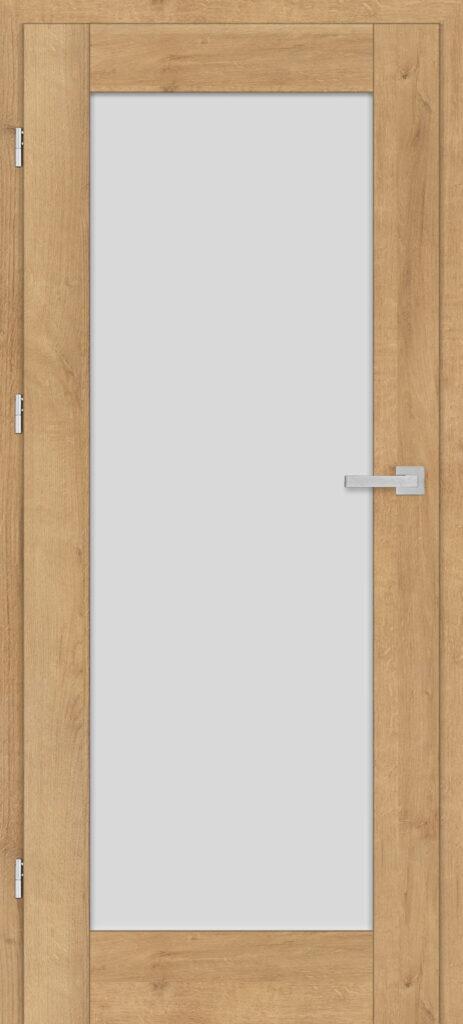

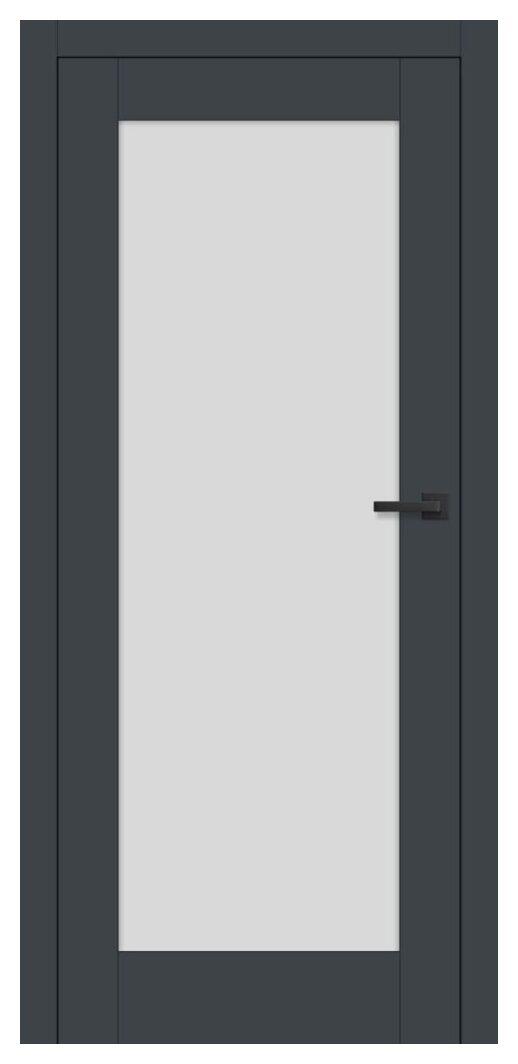

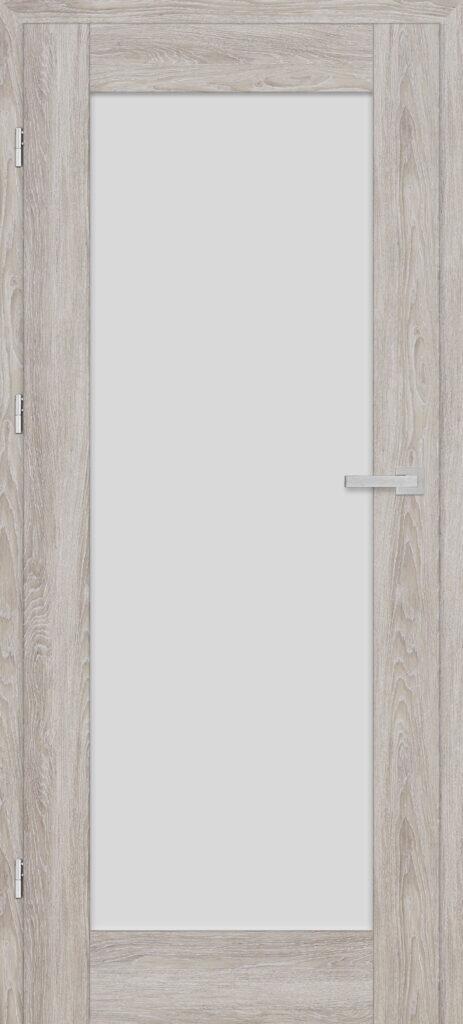

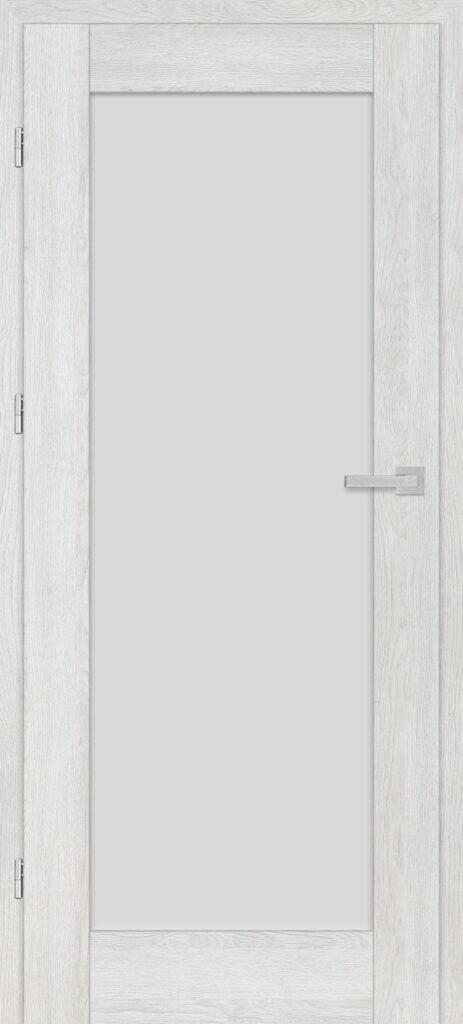

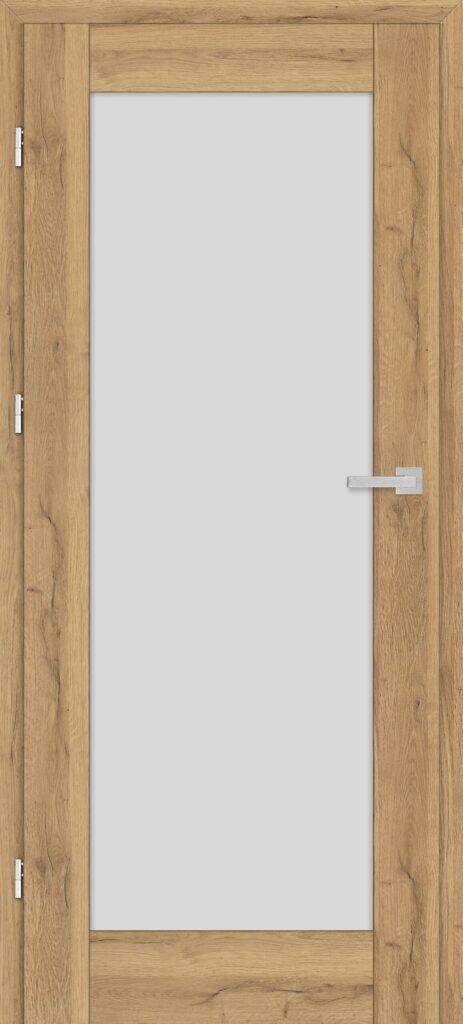

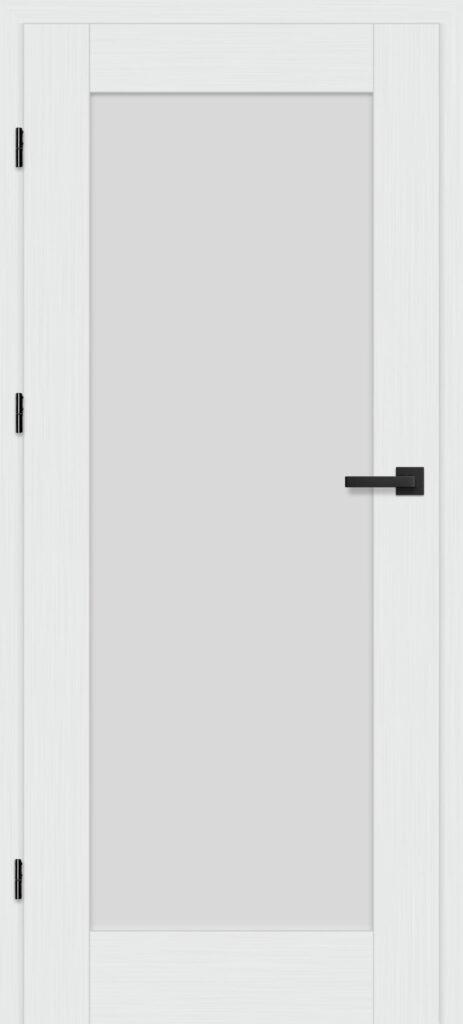

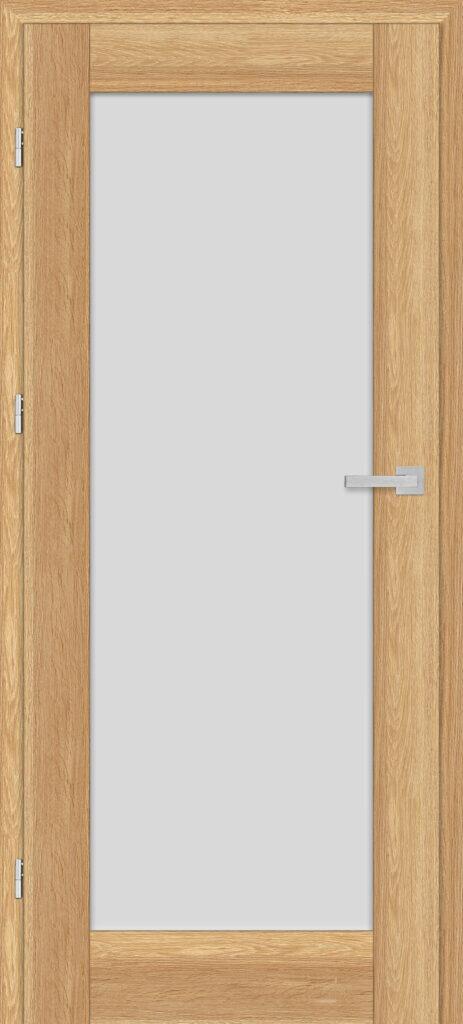

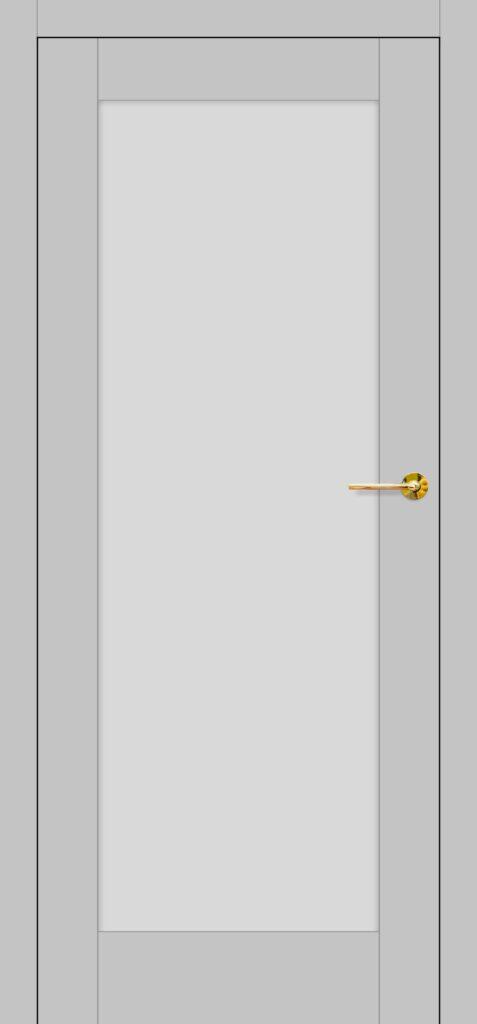

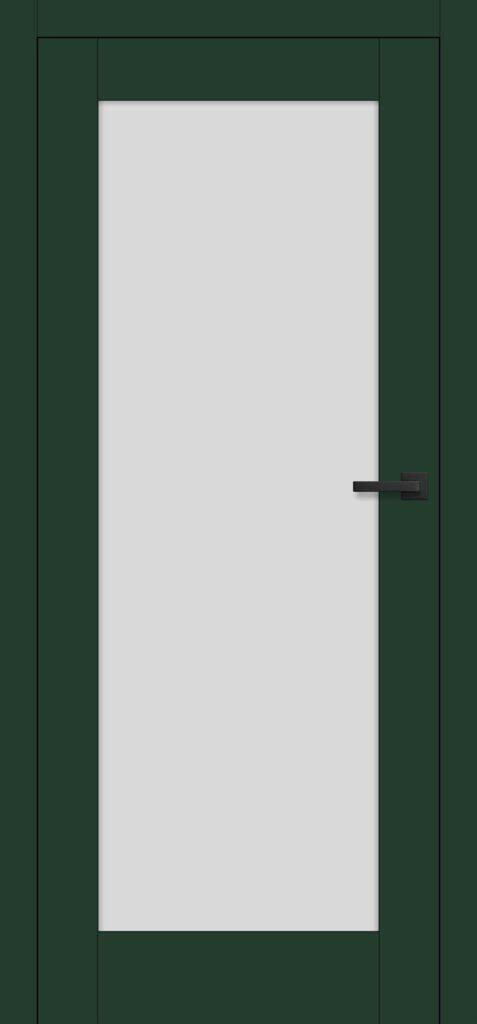

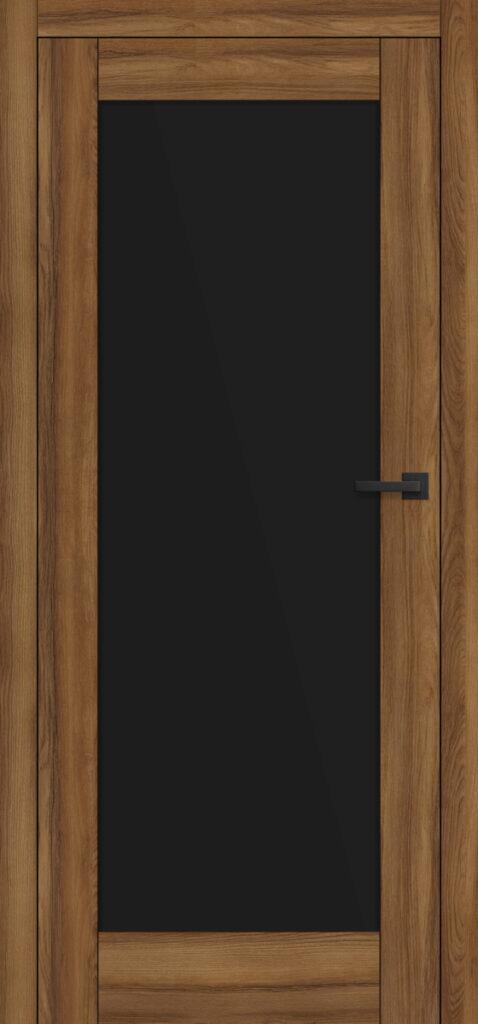

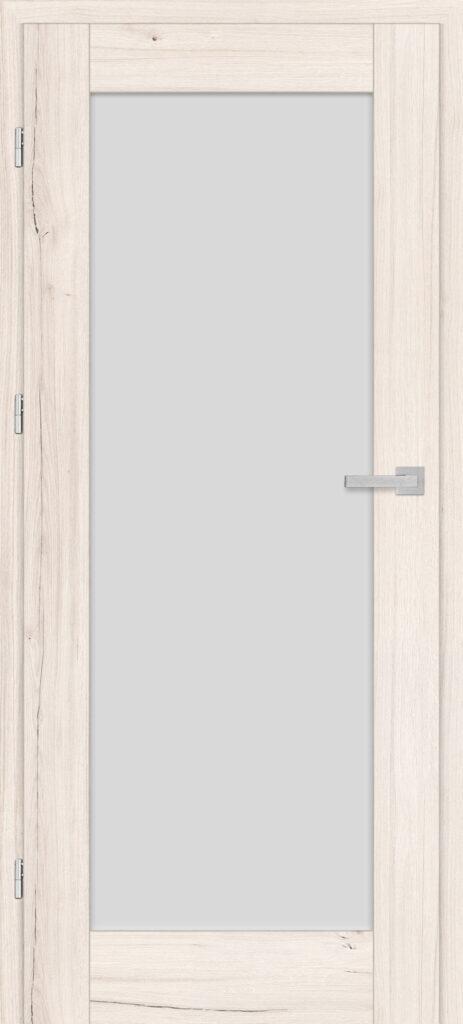

The Frezja 3 variant is a door with full, uniform glazing of the leaf in the light of the frame. There is a choice of clear, milk or black glass in several variants. The full equivalent of the model is Frezja 4.

Frezja doors belong to a collection that was created to combine modern design with elegance and…. a touch of home cosiness. The basis of the design is a wide, expressive frame. The panel placed inside can be full or glazed – either entirely or only in a narrow strip near the handle. There is a choice of clear, milk or black glass in several variants. Importantly, models with slotted glazing are matched by solid versions with corresponding milling. The model with glass going all the way down to the floor – without a bottom bar – is particularly interesting. The Frezja door version with a mirror is of great interest. It is ideal for use in a hallway, dressing room, bedroom or bathroom. The noble, timeless simplicity of the model is combined with a wide range of finishes. The range includes numerous much-appreciated wood decors (many shades of oak, walnut, maple, ash and others) as well as smooth ones – including many variants in white, grey and black as well as dark green and navy blue. The state-of-the-art AntiFinger protective coating ensures a perfect appearance even under heavy use.

CONSTRUCTION

  • rebated or non-rebated door leaf made in the STILE panelled technology
  • MDF stiles and rails covered with the GREKO, PREMIUM, ST CPL facings or ST CPL laminate with the AntiFinger coating
  • glulam laminated stiles covered with HDF and MDF boards
  • optional door frame extension panels and a crosshead with pilasters are available for an additional charge

HARDWARE

  • rebated door leaves: three silver 2-pin hinges adjusted horizontally
  • three concealed hinges in a non-rebated leaf, silver (optionally black - subject to an additional charge); hinges supplied with and included in the price of the door frame
  • lever tumbler lock in a rebated door leaf and a key-locked magnetic lock (lever tumbler lock as an option) in a non-rebated door leaf, thumb turn
  • cylinder, economy, with a silver blockade; optionally, for an additional charge, a black or gold magnetic lock

GLAZING

  • frosted or clear tempered glasS as standard, and custom-made frosted or black VSG 221 laminated safety glass, plain on both sides
  • possibility to change the glazing side to REVERSE (standard glazing for OBVERSE)

DIMENSIONS
Door height – 2035 mm

Available widths:

  • 60 - 644 mm
  • 70 - 744 mm
  • 80 - 844 mm
  • 90 - 944 mm
  • 100 - 1044 mm

Door thickness – 40 mm

Series description

Frame doors are the perfect choice for those who value durability and aesthetics. In our offer you will find a wide range of models that combine functionality with exceptional design. Regardless of whether you prefer classic arrangements or modern interiors, frame doors fit perfectly into any style.

BIM/CAD

3Ds Max

.3ds, .max
Files
Author
Content

FREZJA 3_100_3ds.3ds

290.1 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_100_3ds.3ds

171.56 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_100_max.max

976 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_100_max.max

1.2 MB
ERKADO sp. z o.o.
no preview

FREZJA 3_60_3ds.3ds

171.57 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_60_3ds.3ds

290.12 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_60_max.max

1.2 MB
ERKADO sp. z o.o.
no preview

FREZJA 3_60_max.max

976 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_70_3ds.3ds

171.56 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_70_3ds.3ds

290.12 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_70_max.max

1.2 MB
ERKADO sp. z o.o.
no preview

FREZJA 3_70_max.max

976 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_80_3ds.3ds

290.12 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_80_3ds.3ds

171.56 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_80_max.max

976 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_80_max.max

1.2 MB
ERKADO sp. z o.o.
no preview

FREZJA 3_90_3ds.3ds

290.1 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_90_3ds.3ds

171.56 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_90_max.max

976 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_90_max.max

1.2 MB
ERKADO sp. z o.o.
no preview

Autocad

.dwg
Files
Author
Content

FREZJA 3_100_dwg.dwg

38.97 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_100_dwg.dwg

38.97 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_60_dwg.dwg

38.85 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_60_dwg.dwg

38.85 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_70_dwg.dwg

38.91 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_70_dwg.dwg

38.91 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_80_dwg.dwg

38.94 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_80_dwg.dwg

38.94 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_90_dwg.dwg

38.94 KB
ERKADO sp. z o.o.
no preview

FREZJA 3_90_dwg.dwg

38.94 KB
ERKADO sp. z o.o.
no preview

Object file 3D

.obj
Files
Author
Content

FREZJA 3_100_obj.obj

353.62 KB
ERKADO sp. z o.o.

FREZJA 3_100_obj.obj

539.71 KB
ERKADO sp. z o.o.

FREZJA 3_60_obj.obj

530 KB
ERKADO sp. z o.o.

FREZJA 3_60_obj.obj

353.55 KB
ERKADO sp. z o.o.

FREZJA 3_70_obj.obj

533.87 KB
ERKADO sp. z o.o.

FREZJA 3_70_obj.obj

353.96 KB
ERKADO sp. z o.o.

FREZJA 3_80_obj.obj

347.5 KB
ERKADO sp. z o.o.

FREZJA 3_80_obj.obj

528.2 KB
ERKADO sp. z o.o.

FREZJA 3_90_obj.obj

539.83 KB
ERKADO sp. z o.o.

FREZJA 3_90_obj.obj

351.84 KB
ERKADO sp. z o.o.

Additional Resources

All resources below have been provided by the manufacturer. If you are interested in details or additional information, which you have not found in the service, please contact the manufacturer.
FREZJA 3 Catalogs

Catalogs

Files
Content

katalog-dw-2025ib-www-10072025.pdf

13.39 MB

katalog-dz-2025a-od-03032025.pdf

15.92 MB

stalowe-katalog-2024iic-www-25072025.pdf

59.15 MB

stalowe-katalog-2026ia-www-14012026.pdf

12.25 MB

katalog-dw-2026ia-www-19032026.pdf

13.56 MB

katalog-dz-2026a-www-18032026.pdf

18.74 MB

katalog-dw-2026ia-en-www-29012026.pdf

13.42 MB

katalog-basic-2026-www-21012026.pdf

6.04 MB

katalog-inspiracje-warsaw-home-2025-www-6102025.pdf

12.72 MB

katalog-dz-2025-en-www-3032025.pdf

15.01 MB

stalowe-katalog-2026ia-fr-ceny-www-31122025.pdf

12.15 MB
FREZJA 3 Other resources

Other resources

Files
Content

katalog-marketingowy-2025-en-www-1082025.pdf

8 MB

katalog-marketingowy-2025-fr-www-1082025-1.pdf

8.01 MB

katalog-marketingowy-2025-pl-www-5082025.pdf

8.5 MB

katalog-marketingowy-2026-en-www.pdf

7.4 MB

katalog-marketingowy-2026-pl-www (1).pdf

7.73 MB
FREZJA 3 Instructions

Instructions

Files
Content

instrukcja-regulacji-magnesu-w-zamku-eneo.pdf

159.93 KB

instrukcja-montazu-oscieznicy-regulowanej-1.pdf

277.13 KB

instrukcja-montazu-oscieznicy-stalej-1.pdf

348.92 KB

instrukcja-montazu-skrzydla-drzwiowego-1.pdf

387.96 KB

instrukcja-regulacji-uszczelki-samoopadajacej.pdf

309.42 KB

in-349-pl-instrukcja-regulacji-zawiasow-ukrytych-w-drzwiach-wewnetrznych.pdf

537.64 KB

instrukcja-montazu-progu-drewnianego-lub-stalowego-1.pdf

126.1 KB

instrukcja-montazu-oscieznicy-stalej.pdf

345.46 KB

instrukcja-montazu-oscieznicy-regulowanej.pdf

273.1 KB

instrukcja-montazu-drzwi-wewnetrznych-wejsciowych-1.pdf

187.57 KB

instrukcja-montazu-podwojnej-kasety-oscieznicowej.pdf

12.13 MB

instrukcja-montazu-skrzydla-drzwiowego.pdf

385.2 KB
FREZJA 3 Certifications

Certifications

Files
Content

atest-higieniczny-drzwi-ramiakowe.pdf

924.66 KB

dw-1-gr.-72-mm-2019.pdf

213.84 KB

dw-2-gr.-82-mm-2019.pdf

215.19 KB

rc-2-swiadecwo.pdf

643.05 KB

dw-3-gr.-102-mm-2019.pdf

215.66 KB
