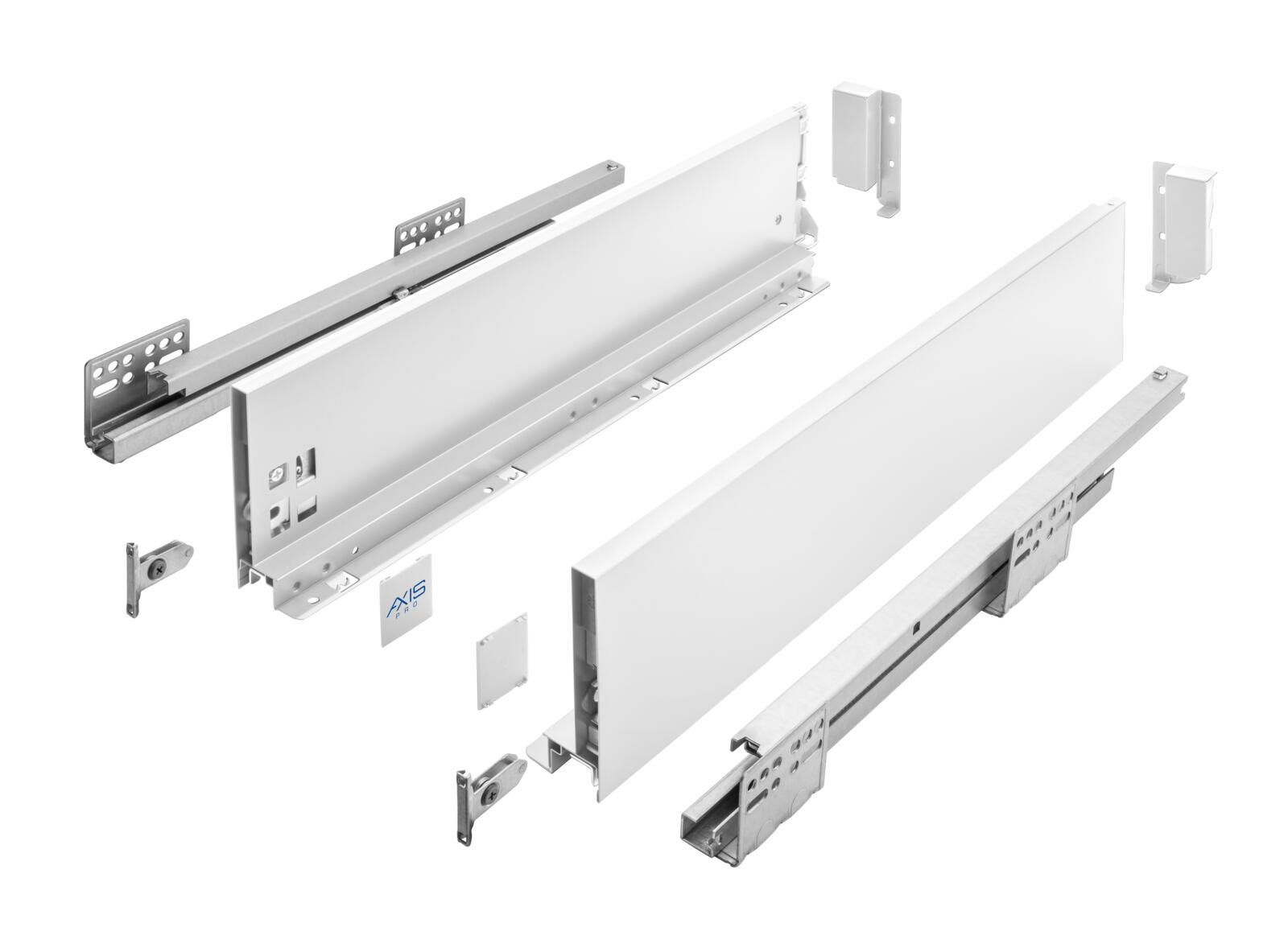

AXIS PRO soft close - medium drawer set B

The medium Axis Pro drawer offers outstanding durability, certified for 60,000 cycles. It provides full extension in lengths from 250 to 600 mm, and its soft-close mechanism ensures quiet operation and gentle closing. With five height options, it can be perfectly tailored to your kitchen. The slim 14 mm side panel allows for maximum use of internal cabinet space. The drawer can handle a load of up to 40 kg, making it ideal for various items. Installation is simplified with comfortable internal access, tilt adjustment, and horizontal adjustment of ±2 mm. A full range of organizational systems, cutlery inserts, mats, and waste sorters is compatible with this drawer. Available in three modern colours: white, anthracite, and black.

Key features:

• Soft-close mechanism – prevents loud slamming and ensures quiet, smooth closing
• Load capacity up to 40 kg – suitable for food supplies like sugar, flour, and rice, as well as large utensils or heavy ceramic items
• Certified durability of 60,000 cycles – reliable performance backed by testing
• Full extension (250–600 mm) – allows complete access along the length of the runner, especially useful for shallow drawers
• Synchronized runner segments – ensure smooth and refined movement
• Five height variants (69, 86, 120, 168, 200 mm) – for universal applications with inset or overlay fronts
• Slim 14 mm side design – enables optimal use of internal drawer space
• Convenient internal adjustment access
• Wide adjustment ranges: vertical and horizontal ±2 mm
• Tilt adjustment and additional regulation with rail use (recommended for very tall fronts)
• Rear panel connectors – enable easy attachment to the drawer body
• Option to use an internal front and additional railing
• Simplified installation – thanks to the universal drilling template: PB-SZABLON-AXIS-MB
• Includes caps for adjustment holes

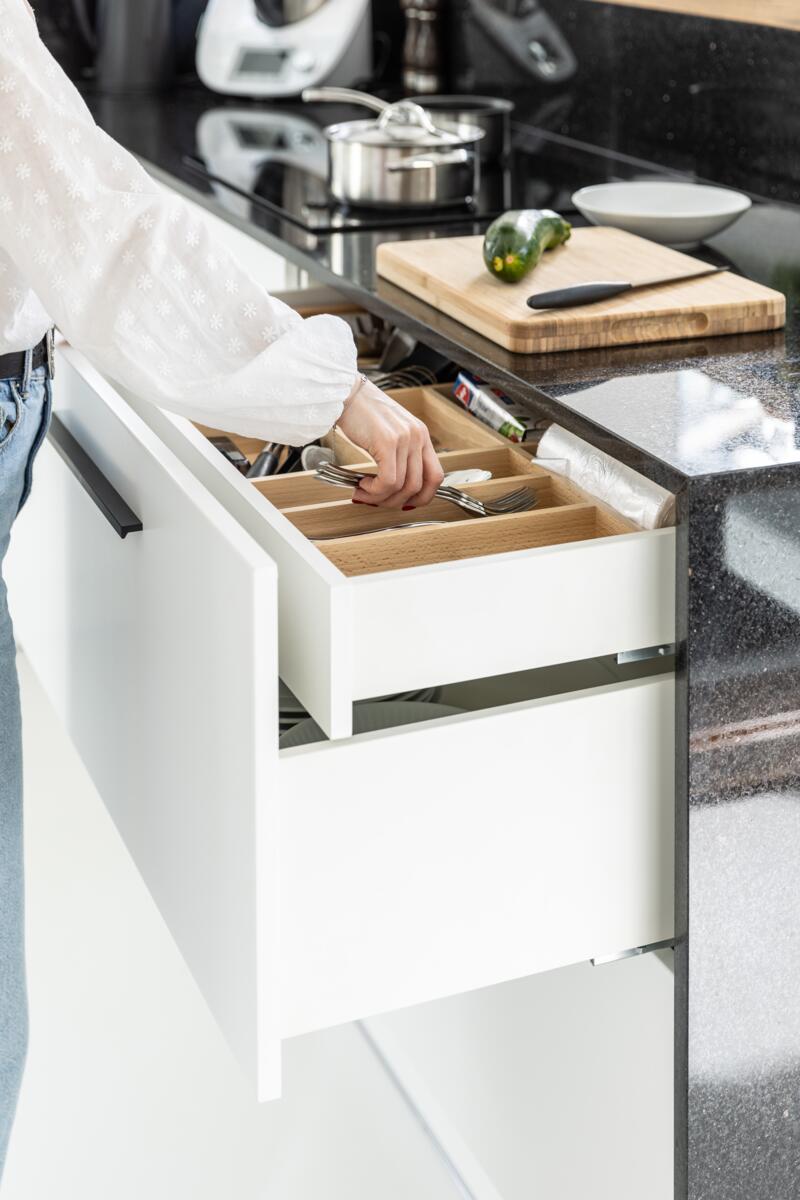

• Internal organization accessories available – CUSTOMI cutlery trays, AXISPACE anti-slip mats, and waste sorters
• Available in three trendy colours: white, anthracite, black

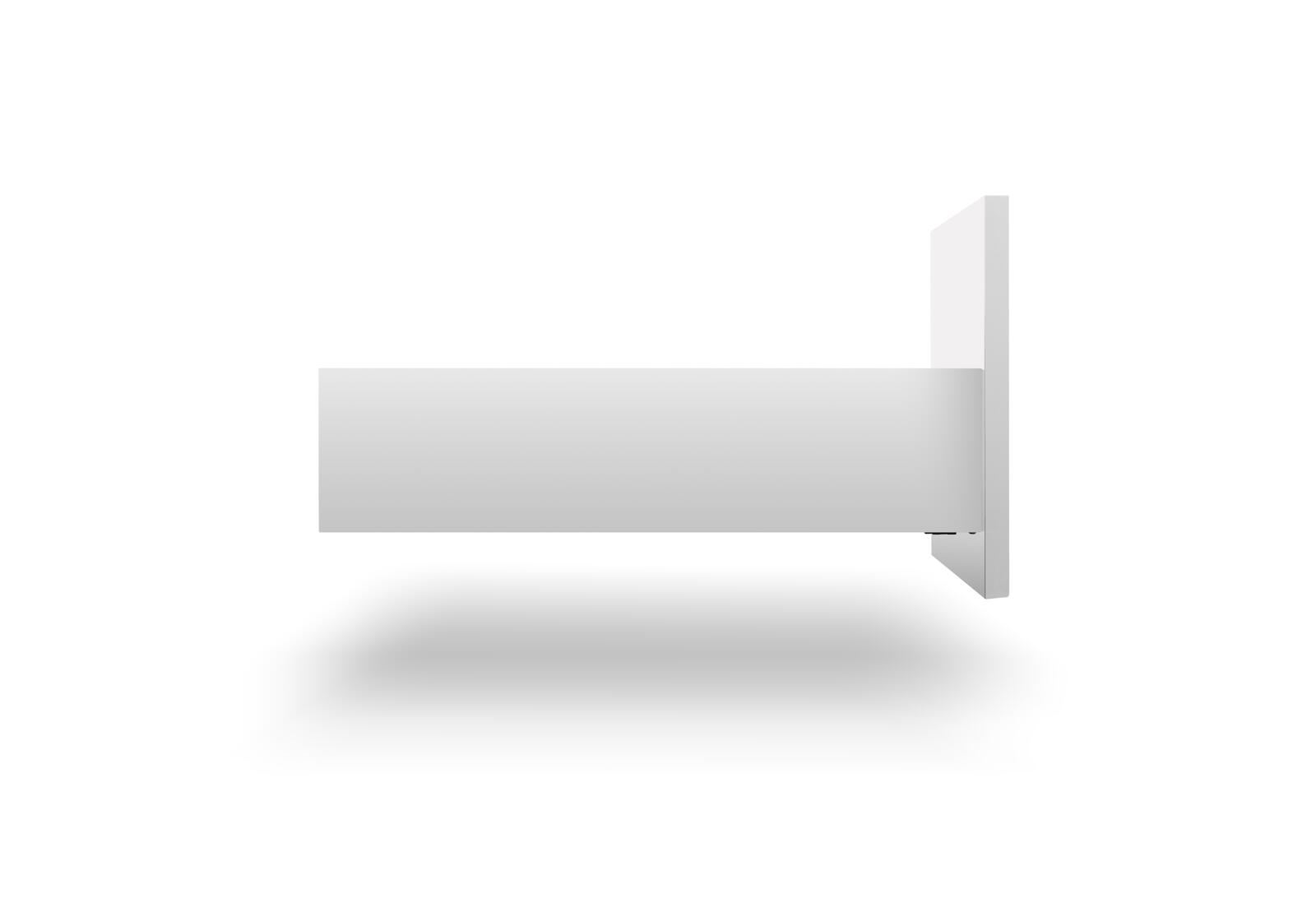

*The provided 3D models are for illustrative purposes only. The dimensions of actual products may differ from those shown in the models. The provider accepts no liability for damages or lost profits resulting from differences between model dimensions and the actual products manufactured based on them
